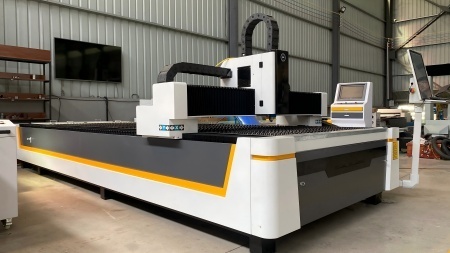

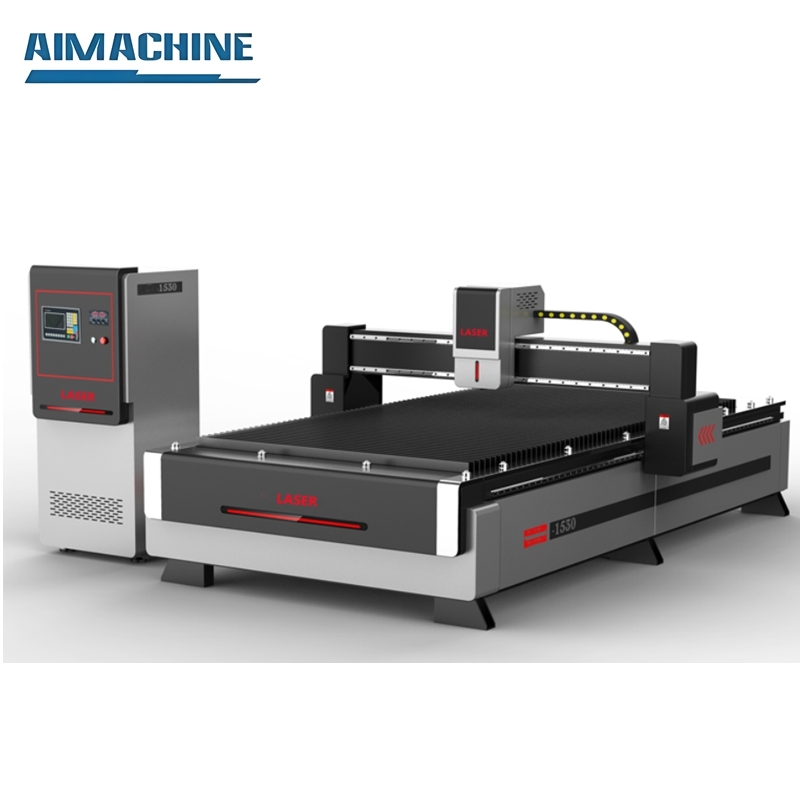

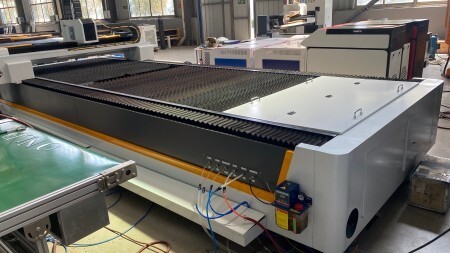

3015 6000W High-Power Fiber Laser Cutting Machine
The 3015 laser cutting machine is a cost-effective, industrial-grade solution designed for precision sheet metal processing. Equipped with a 6000W fiber laser and aerospace-grade components, it ensures unmatched stability, speed, and durability for demanding industrial applications.
Key Features of laser cutting machine
1.6000W MAX Fiber Laser Source
(1) High-Speed Cutting: Effortlessly cut stainless steel, aluminum, and carbon steel (up to 25mm thickness) with minimal energy consumption.
(2) Modular Design: Compact, lightweight, and easy to integrate into existing workflows.
(3) Stable Performance: Redundant design ensures continuous operation, backed by a well-known Chinese manufacturer with ISO-certified quality.
2.Professional Cutting System
(1) Raytools XC3000S Software: Optimize cutting paths and material utilization with industry-leading CNC controls.
(2) Precision Guaranteed: Achieve ±0.03mm accuracy for complex geometries.
3.Dual Cooling System
(1) Industrial-Grade Chiller: Supports long-duration operation for high-power lasers (up to 12,000W).
(2) Avoid Downtime: Prevent overheating and protect critical components like the laser source and cutting head.
4.Aerospace-Grade Aluminum Frame
(1) Lightweight & Durable: Extruded with 1000-ton equipment for uniform density and zero defects.
(2) High-Speed Stability: Corrosion-resistant and rigid structure ensures precision during rapid movement.
Parameter
| Model | 3015 6000Wfiber laser sheet cutting machine |
| Processing area(L×W) (mm) | 3000×1500 |
| Power (w) | 6000 |
| X axis track (mm) | 1550 |
| Y axis track (mm) | 3050 |
| Z axis track (mm) | 120 |
| X,Y axis positioning accuracy (mm/m) | ±0.03 |
| X,Y axis repeat positioning accuracy (mm/m) | ±0.02 |
| X，Y axis max speed(m/min) | 70 |
| Max.load of worktable(kg) | 2400 |
| CNC system | Raytools XC3000S |
| Maximum cutting thickness (mm) | 28 Carbon steel |

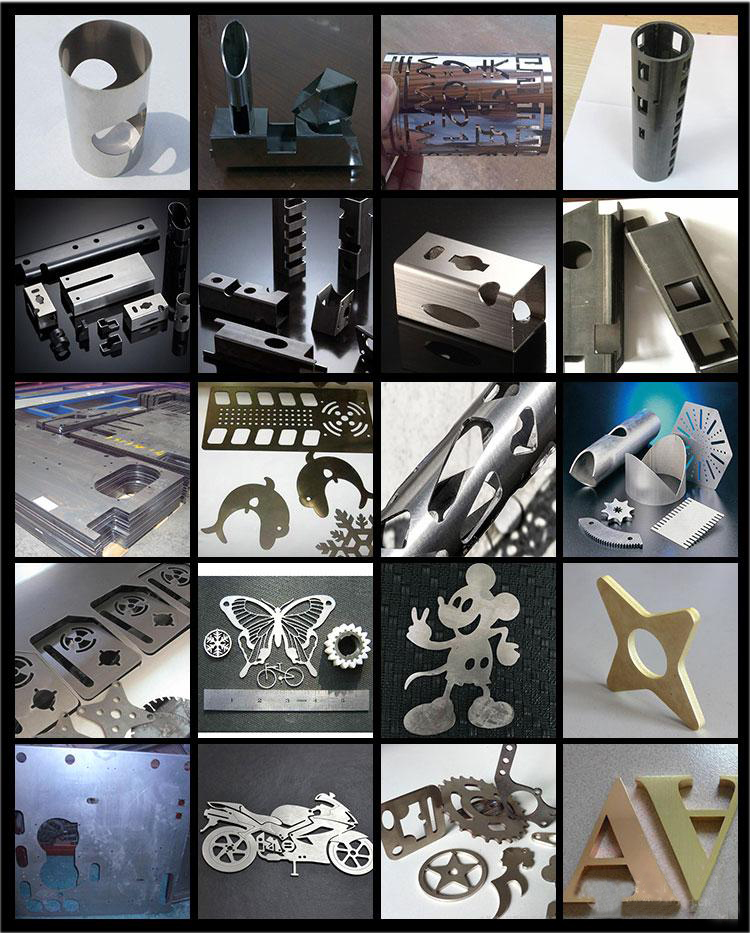

Applications
(1) Aerospace Components: Cut lightweight aluminum alloys for flight parts.
(2)Automotive Fabrication: High-speed processing for chassis and body panels.
(3)Industrial Machinery: Precision cutting for gears, brackets, and enclosures.
- Processing:
- 3000mm×1500mm
- Power:
- 6000W
- Positioning accuracy:
- ±0.03mm/m
- Carbon steel:
- 28mm
- Stainless steel:
- 16mm
