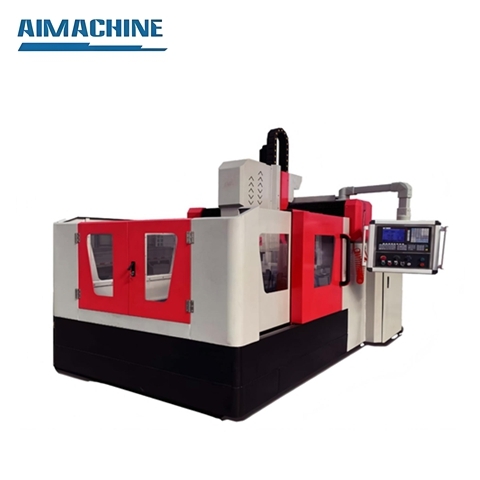

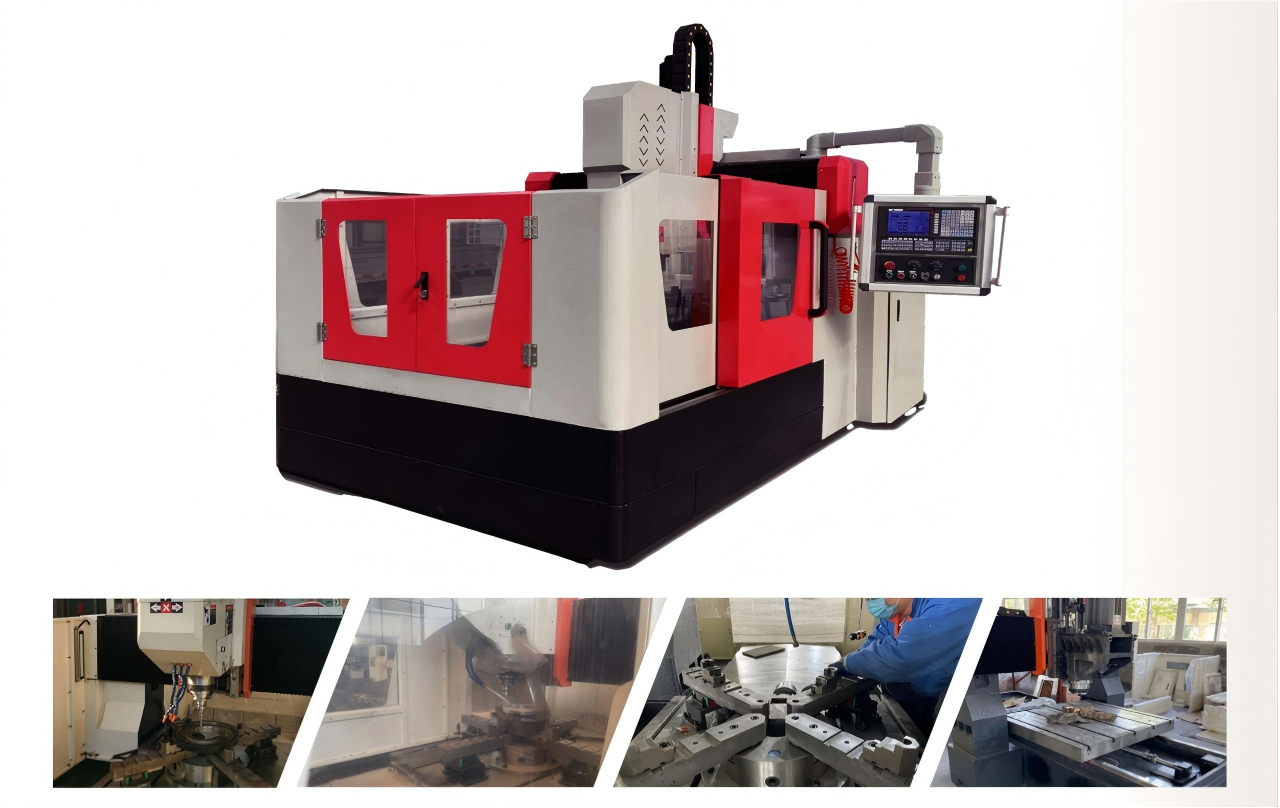

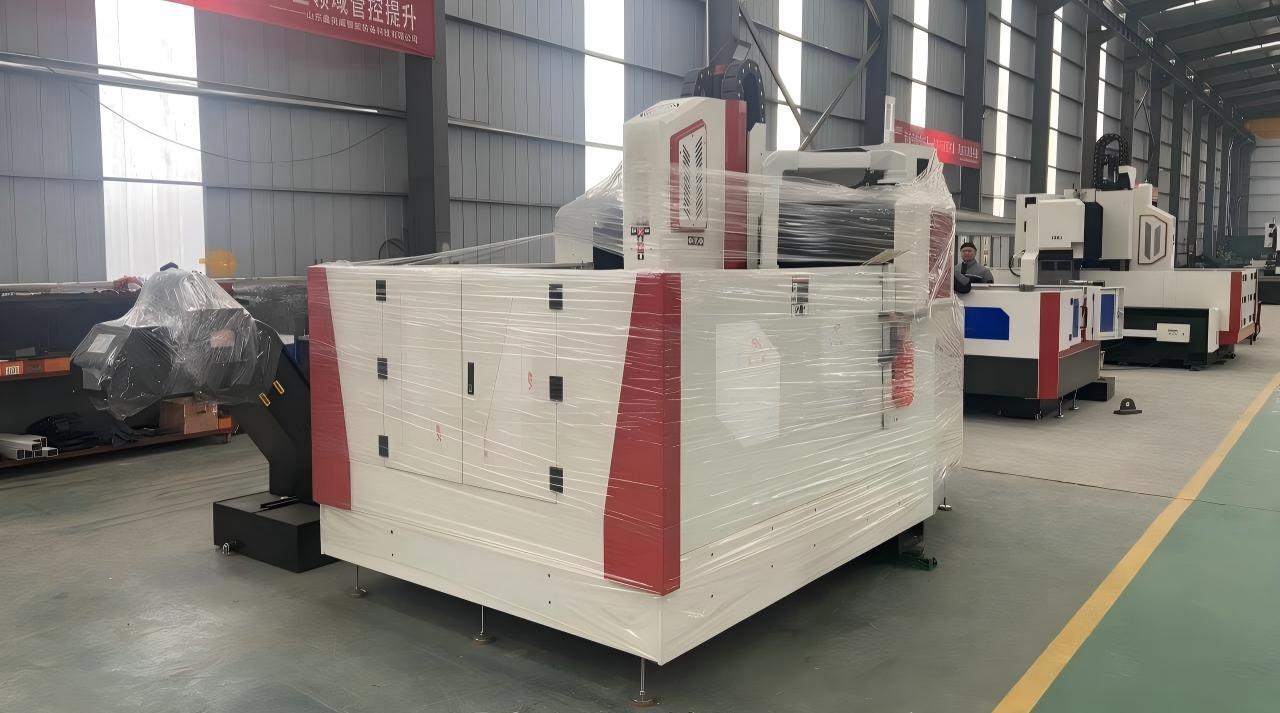

AWT1010 CNC Steel Plate Drilling Machine
AWT1010 cnc steel plate drilling machine is used for the drilling holes on tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc.
Feature Of Our AWT1010 CNC Steel Plate Drilling Machine
1. The bed is made of high quality gray cast iron with stable performance and no deformation.
2. Spindle hydraulic feed, high efficiency and very durable.
3. Adopt hydraulic clamping system, small workpiece can be clamped at four corners of worktable, shortening production preparation period and improving production efficiency.
4. CNC system: In the Windows interface or in the AUTOCAD environment, the steel plate is programmed directly, the programming is convenient. It can be finished to make program outside the computer, then directly copy or transmit by internet into computer to save as the program.
Basic Parameter Of AWT1010 CNC Steel Plate Drilling Machine
| Model | AWT1010 | |
| Processing size | 1000*1000 | |
| The maximum drilling diameter | Ø36mm | |
| The maximum drilling depth | 220mm | |
| The spindle Model | BT40 | |
| The Qty. Of spindle | 1 | |
| Power of spindle motor | 7.5kw(servo ) | |
| Spindle Speed | 3000rpm | |
| X axis | Gantry horizontal movement stroke | 1000mm |
| X-axis movement speed | 0~9000 mm /min | |
| Y-axis | Longitudinal movement stroke of power head | 1000mm |
| Y-axis movement speed | 9000mm/min | |
| Z-axis | Vertical stroke of power head slide table | 370mm |
| Z-axis feed rate | 8000mm/min | |
| Position accuracy(mm) | ±0.03mm (within 300mm, ±0.05mm) | |
| Re-positioning accuracy(mm) | ±0.03mm (within 300mm, ±0.05mm) | |
| Dimension | 2500*2100*2200mm | |
- Processing Size:
- 1000*1000mm
- Hole Size:
- φ36mm
- Drilling Depth:
- 220mm
- Spindle Speed:
- 3000rpm
