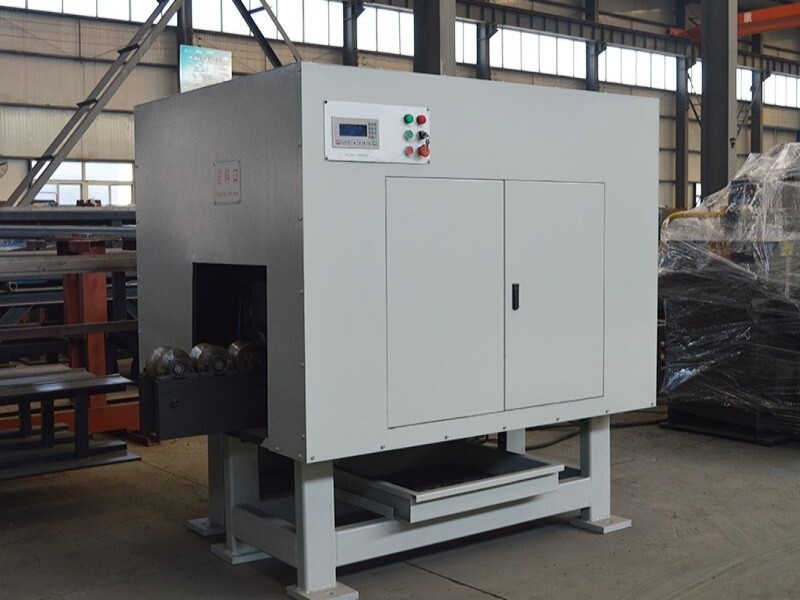

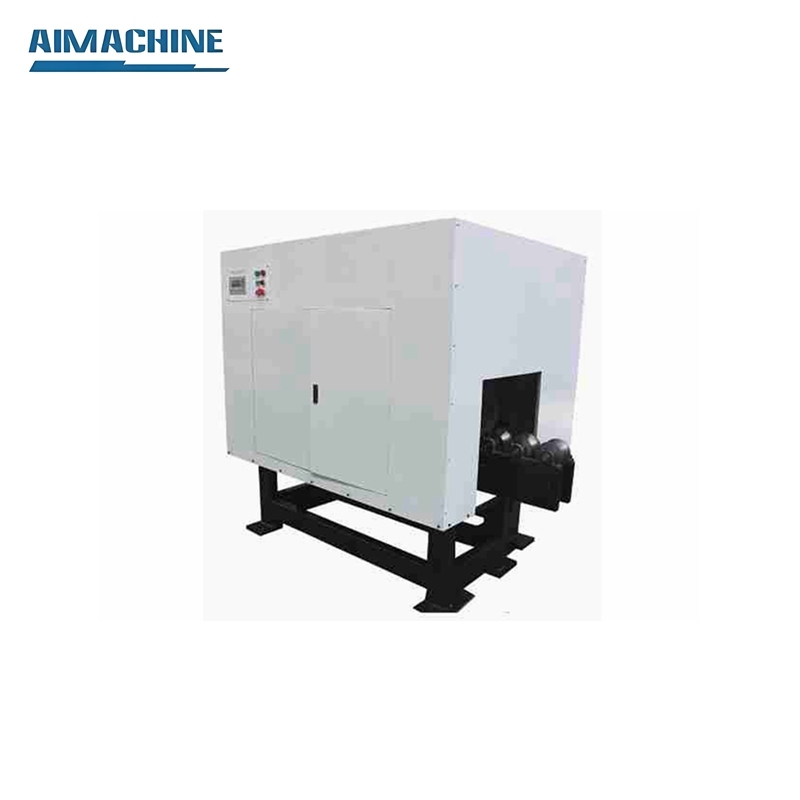

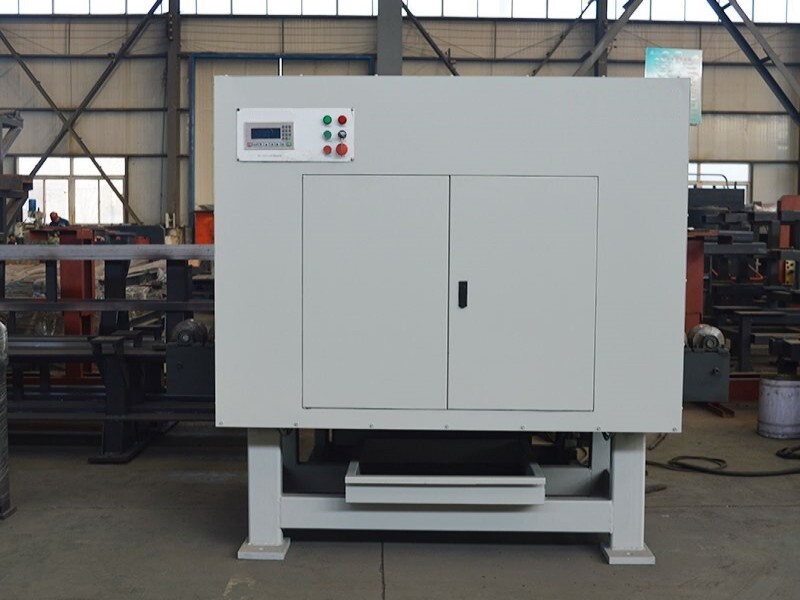

Angle Processing Machine-CNC Angle Cutting Machine For Milling Angle Steel Heel Back

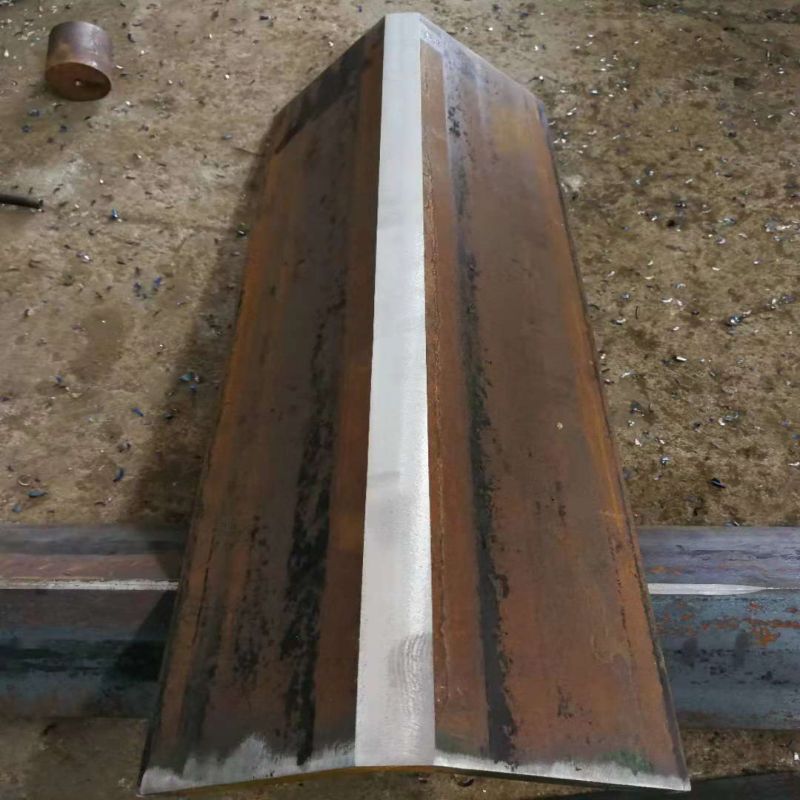

This Angle Processing Machine is used for cutting angle steel heel back, it is used in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Product Feature

1. By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process.
2. According to request it can do a single-stage and continuous cutting.
3. Operation of this machine is simple, reduced operational requirements of workers.
4. Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together.
5. Simple operation, flexible adjustment and stable operation.
6. Multi -purpose machine, can complete continuous feed and cutting length.
7. With touch-screen operator interface.

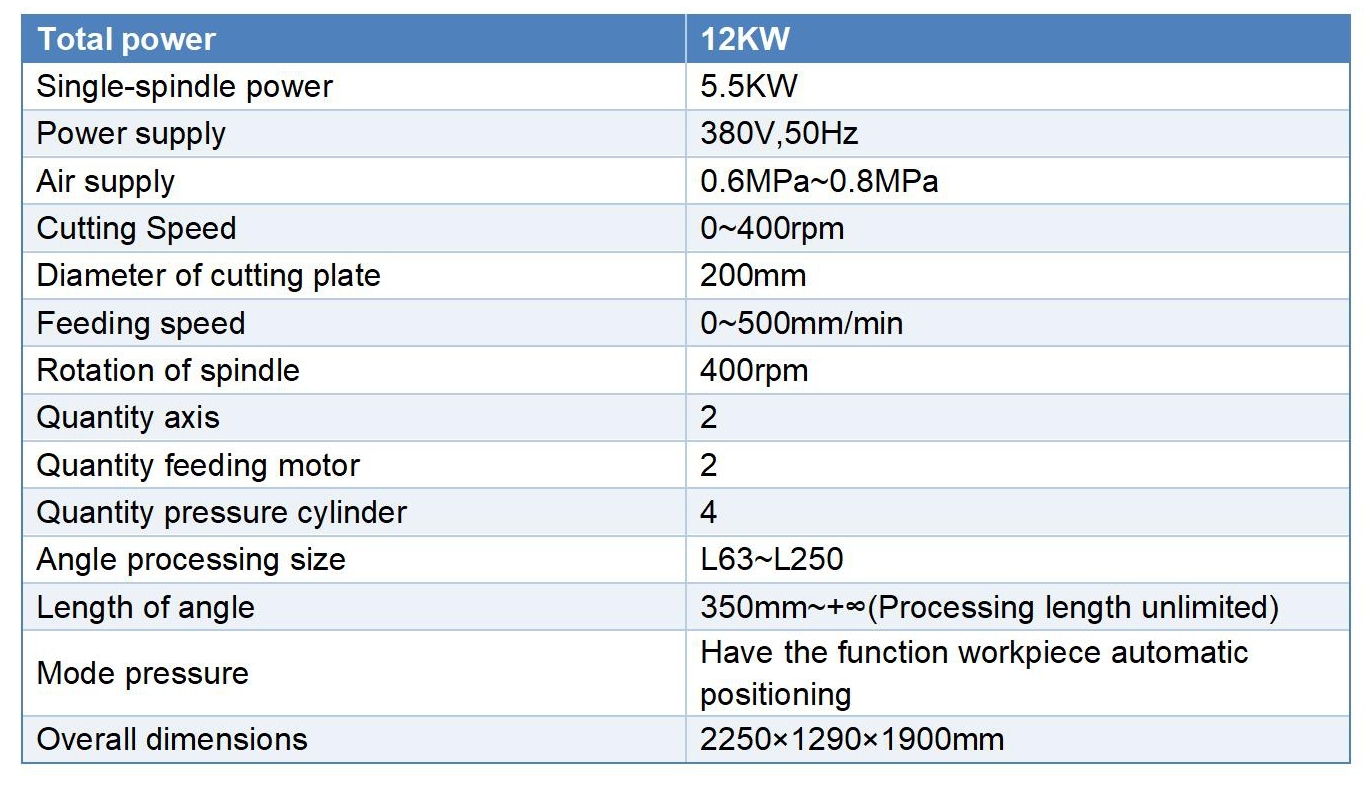

Product Basic Parameter
