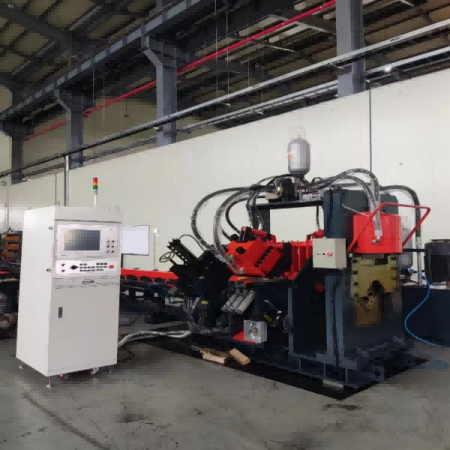

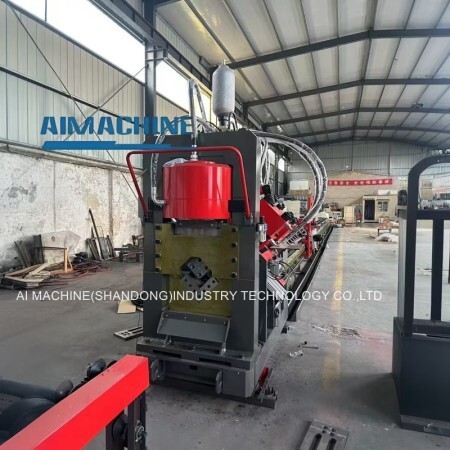

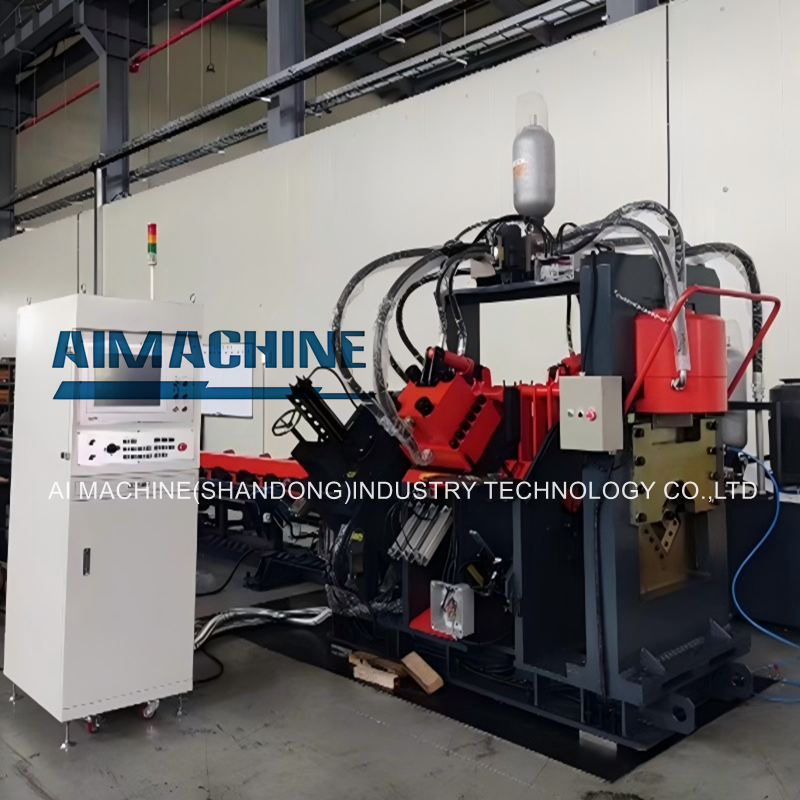

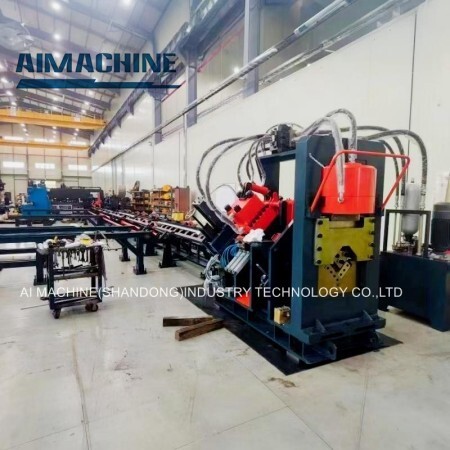

APM Series CNC Angle Processing Machine Angle Cutting Punching Machine

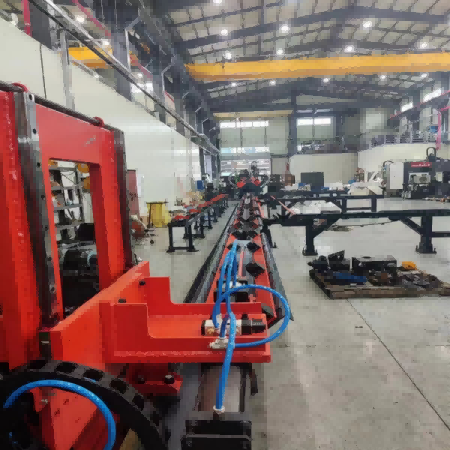

APM Series cnc angle processing machine are professional automatic equipments for typing, marking, punching and cutting angle steel in electric power and telecommunication angle steel tower. Processing Size from 40*40*3 to 200*200*20mm,it includes 6 parts: Material-uploading parts, In-feeding Conveyor part, Man Machine body, finished production conveyor part, hydraulic power part, electrical control part.



Feature of APM Series CNC Angle Cutting Machine

1. APM Series CNC Angle Cutting Machine adopts CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.

2. Key hydraulic, pneumatic and electric parts all imported.

3. Easy programming and can directly use the program data made by lofting software.

4. Computer with Chinese/English intemarking face, easy operation, and can display the drawing of workpiece.

5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.

6. Only need to input size of work piece, diameter of holes, stadia and quantity of work piece when edit program, or use CAD/CAM direct conversion.

7. Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.

8. With function of self-diagnosis for failures.

9.Different models for different angle steel size.

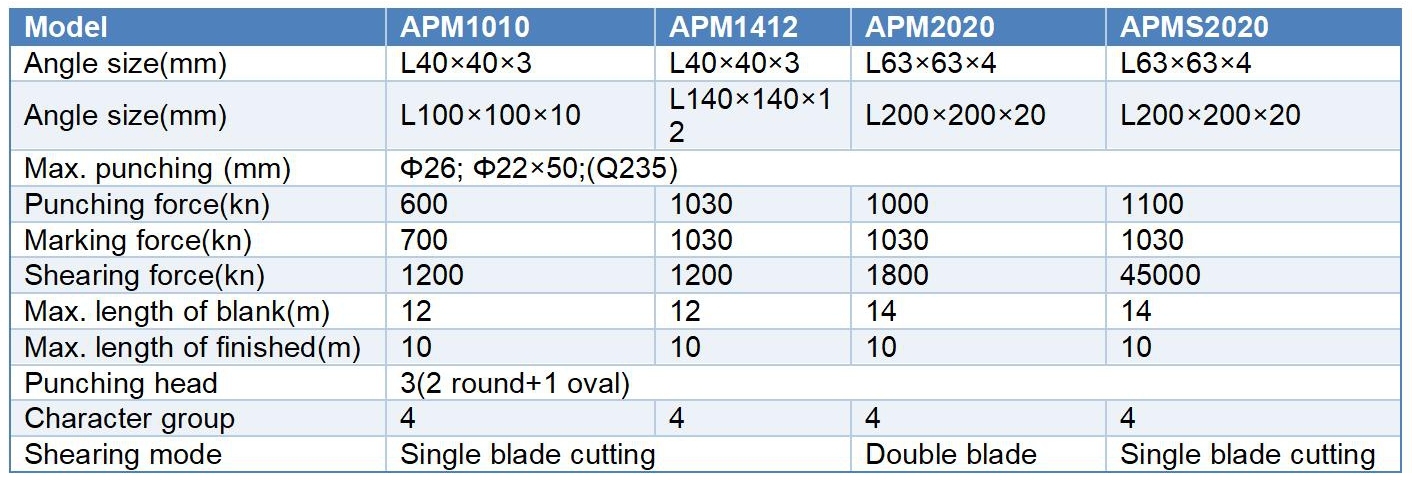

Model of APM series CNC Angle Cutting Machine
