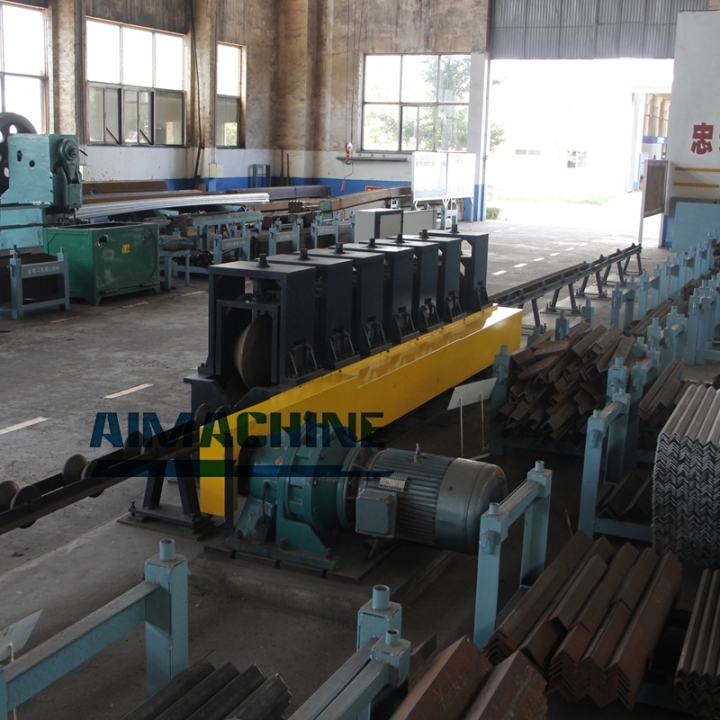

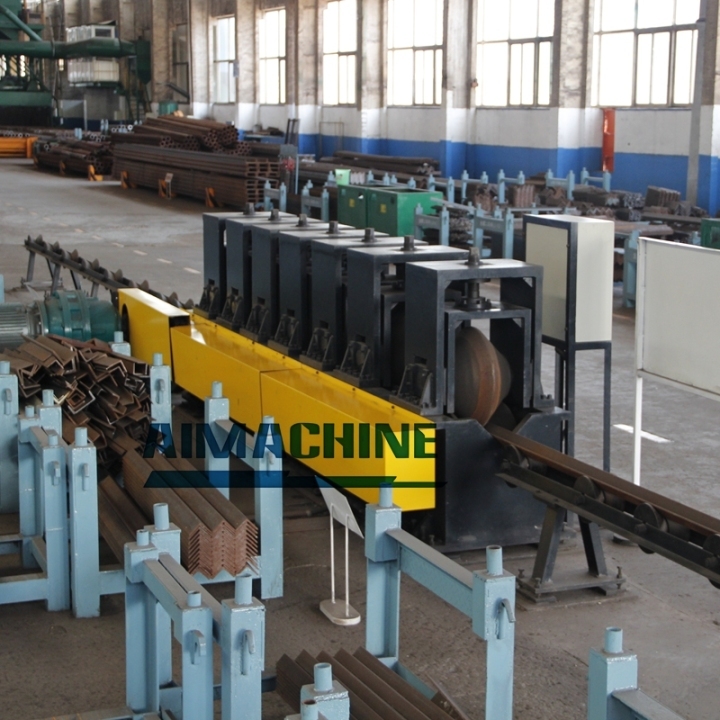

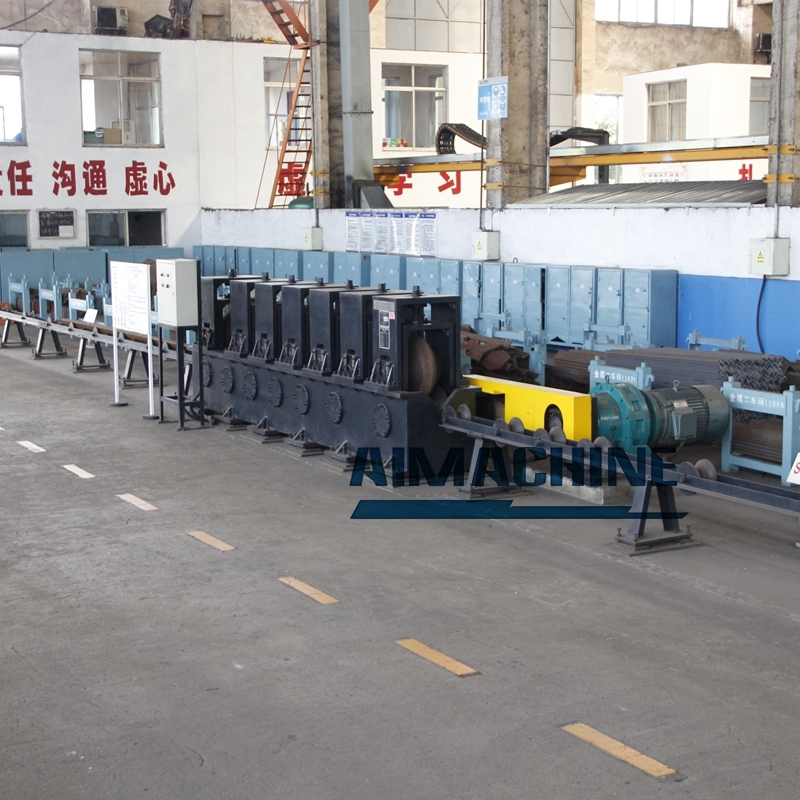

Angle Processing Machine Roller Type Straightening Machine

Machine features

1. This angle steel straightening machine is mainly used for the production of iron towers in the power transmission and communication industry, as well as for the straightening process of angle steel in the production of metal components in the construction industry.

2.This angle steel straightening machine adopts mechanical transmission, with a simple structure, easy maintenance, and stable and reliable operation.

3. This angle steel straightening machine suitable for angle steel 35mmX35mX3mm-130mmX130mmX12mm. The straigtening length of the machine can be equipped according to user needs. The front material lane is generally 8-10 meters , and the rear material lane is 10-12 meters long.

4. This machine can adjust the straightening up and down according to the size and deformation length of the angle steel to achieve the desired effect. The variation of the straightening force on the rollers is relatively small, and the straightening force of each roller is relatively balanced, avoiding machine damage caused by excessive peak loads and maximizing the ability of each roller to facilitate the mechanism design of the straightening frame. This is precisely the advantage of variable roller spacing.

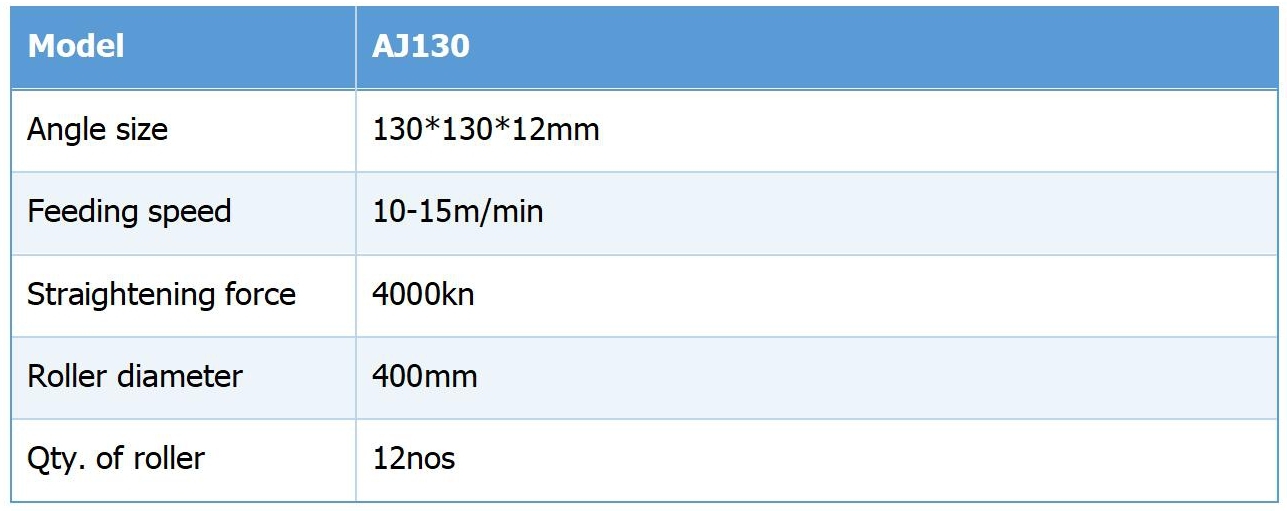

Machine parameter of angle steel straightening machine
