Lattic Tower Production Machine

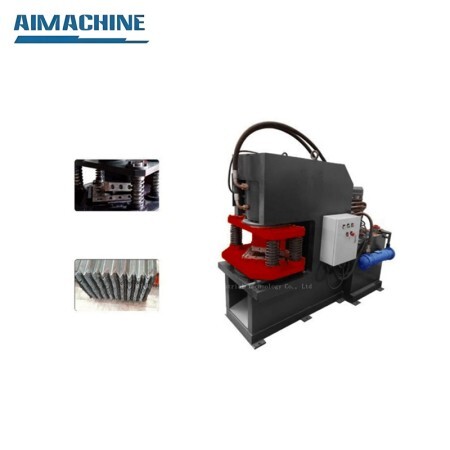

Angle Processing Machine CNC Angle Cutting Machine Angle Notching Machine
CNC Angle Cutting Corner Notching Machine is used for angle steel corner cut in angle tower production.
Angle Notching machine

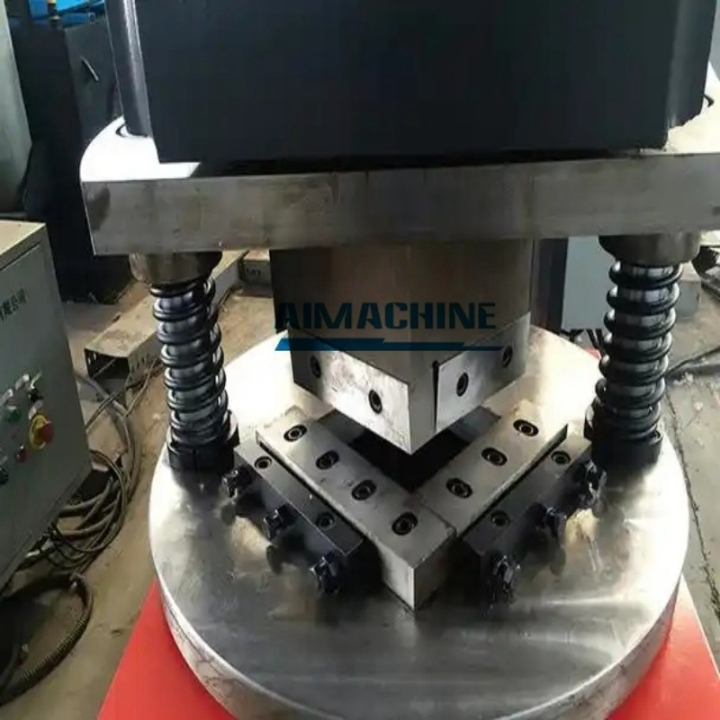

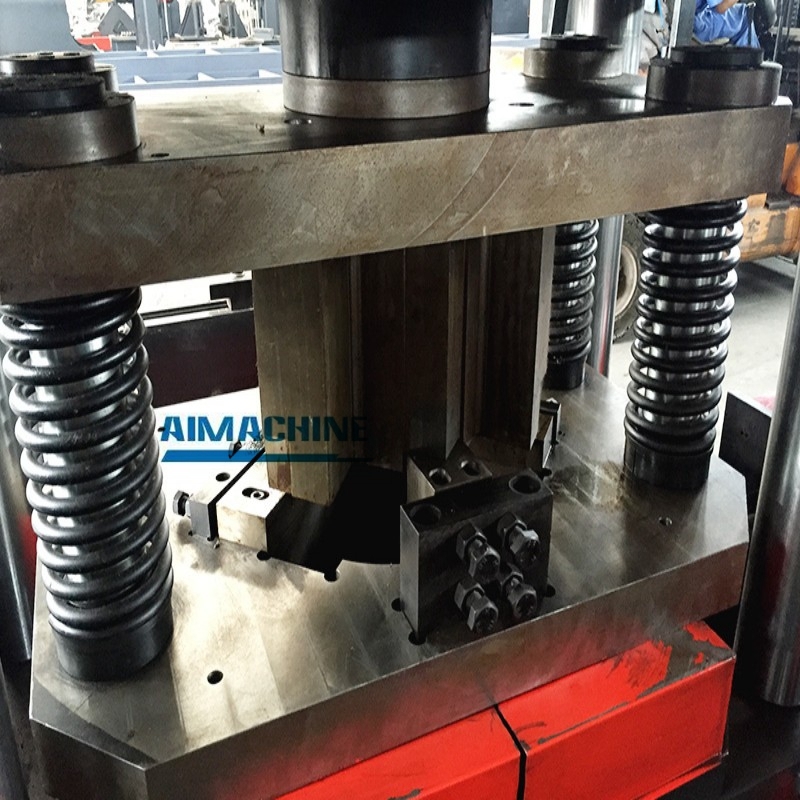

1.The angle corner cutting notching machine with opening C-type structure, its cutting mould is rectangular double-blade mode.
2.Multi-directions rotational corner cutting mould can cut out different angle of angles only need to adjust rotation die-carrier so as not to rotate the angles, so corner cutting with little error only need small working area.
Angle Notching Machine
Contact us to get more details about angle notching machine!

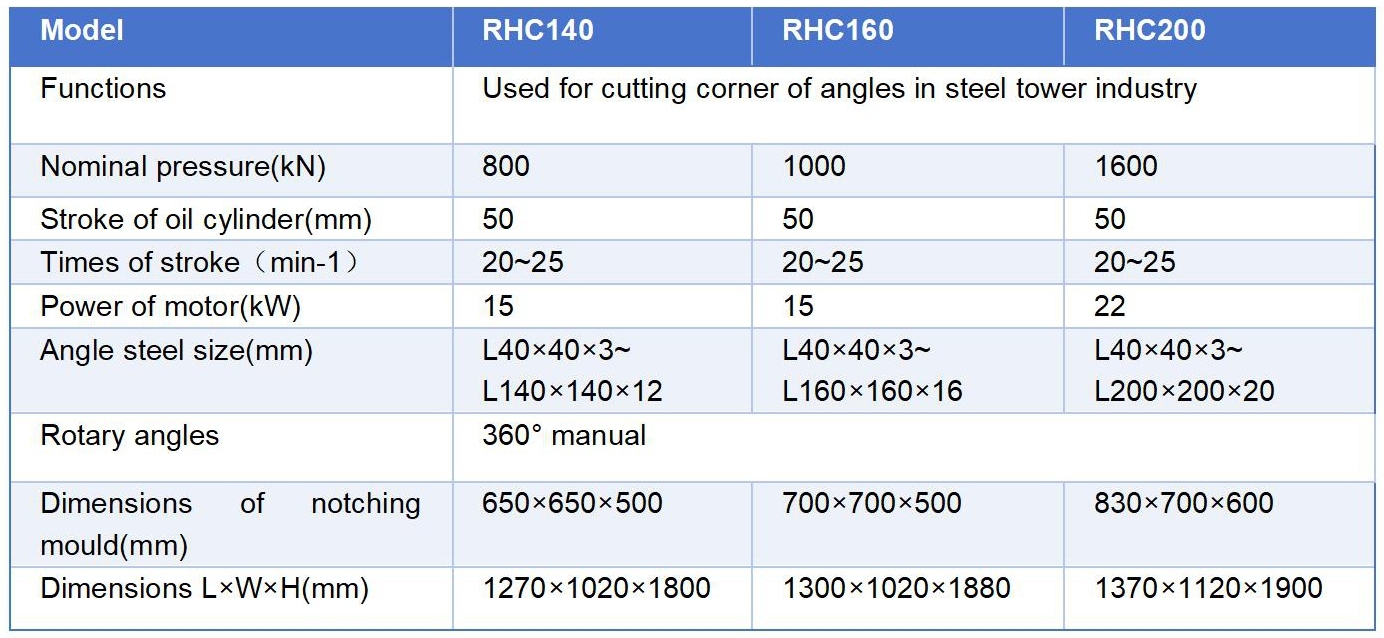

- RHC140:
- 40*40*3-140*140*12mm
- RHC160:
- 40*40*3-160*160*16mm
- RHC200:
- 40*40*3-200*200*20mm
- Rotary angle :
- 360° by manual
