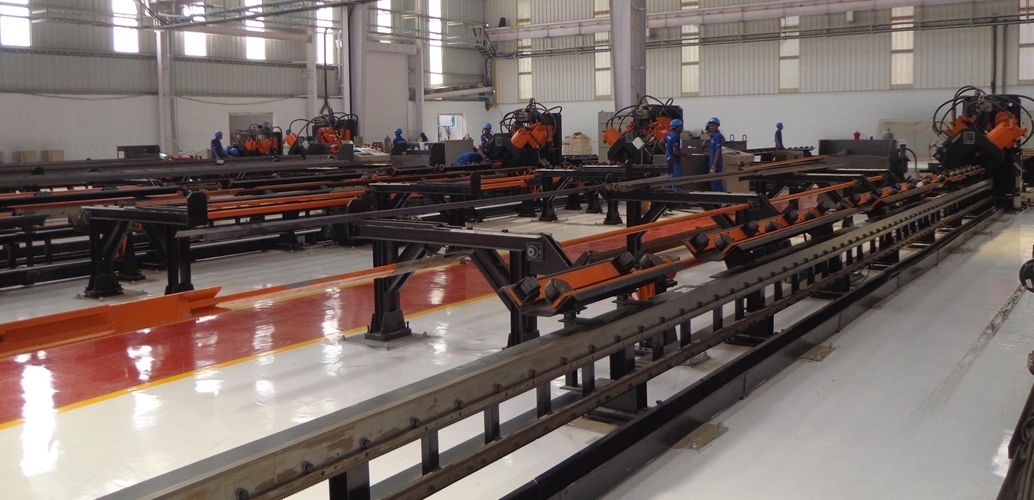

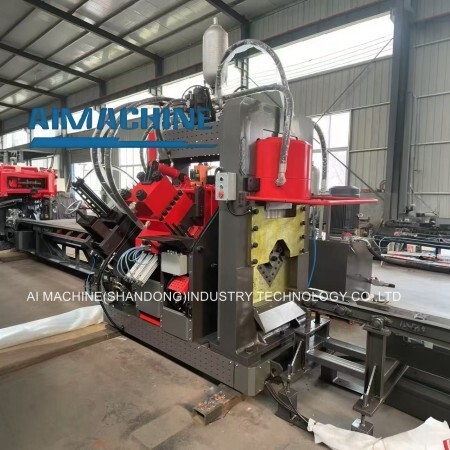

Angle Processing Machine-APM2020 CNC Angle Punching Machine for Angle steel size 200*200*20mm

Angle Processing Machine-APM2020 CNC Angle Punching Machine is the automatic special production line used for angle steel marking, punching (round hole, slot hole) and shearing, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Feature of Angle Processing Machine-APM 2020 cnc angle punching machine

1.Three sets of punches on each side, can process all holes once time.

2. APM2020 is Double blade shearing for high tensile large angles. APM2020S is Single blade shearing to save raw material.

3.  Numerical control processing, the operation is very convenient, can realize automation, high precision, many varieties, mass production.

4.  Marking unit adopts closed frame with good rigidity. On the marking unit is equipped with four groups of programmable selection box.

5.  With avoided shearing functions, so as to process fixed-length angles.

6.  All marking, punching and Cutting in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

7. Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software.

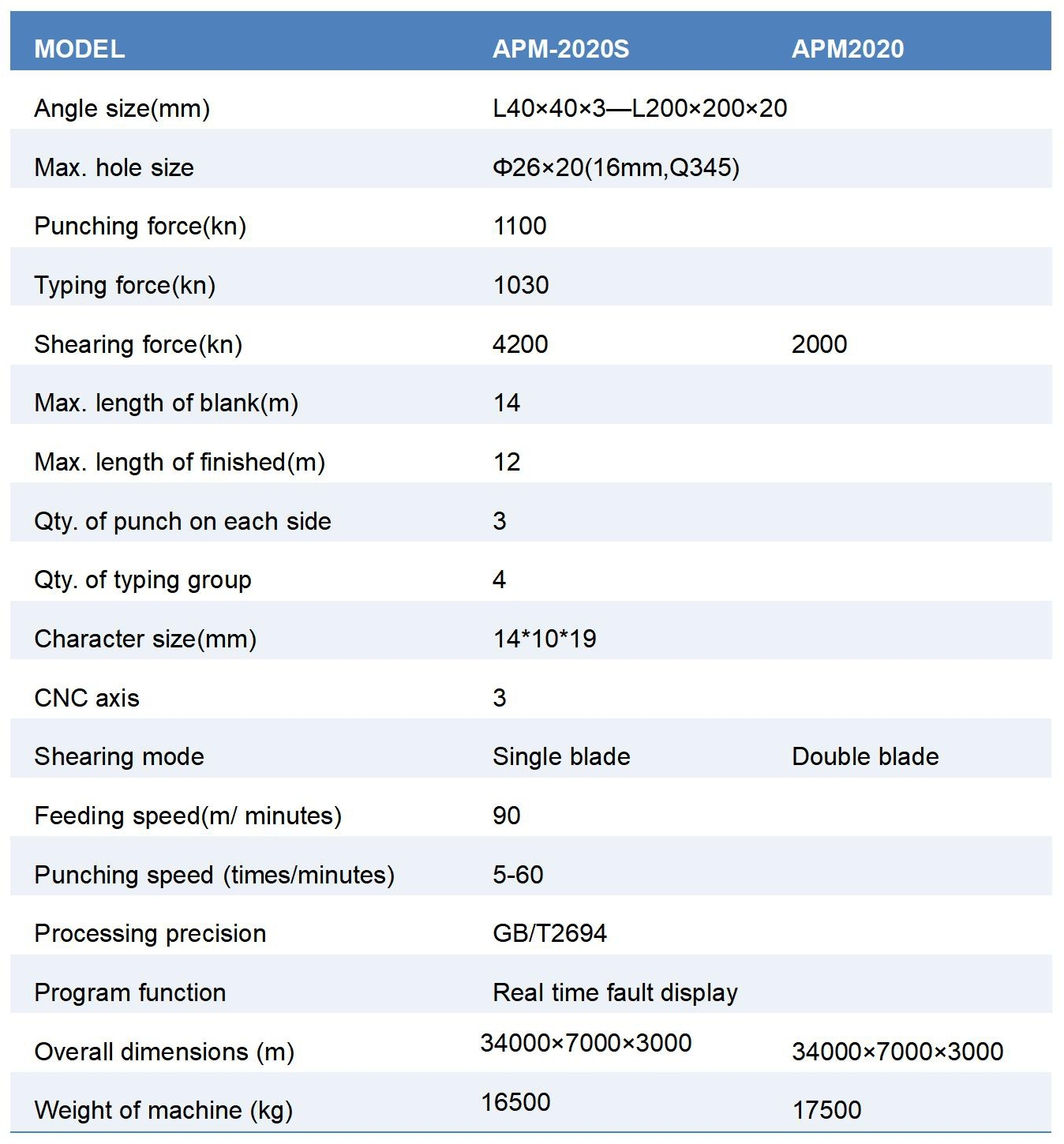

Basic Parameter of Angle Processing Machine cnc angle cutting machine
