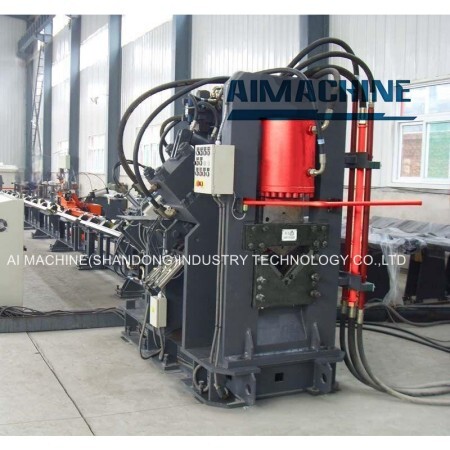

CNC Angle Punching Machine 2020: Parameters, Features, and Invitation for On-Site Inspection
The CNC Angle Punching Machine 2020 is a cutting-edge solution for fabricating high-precision angle steel components used in power transmission towers, telecommunication infrastructure, and industrial steel structures. Combining robust engineering with intelligent automation, this machine ensures efficiency and accuracy for critical tower manufacturing processes.
Core Functions of CNC Angle Punching Machine 2020
- Material Handling: Processes angle steel up to L200×20 mm (leg length × thickness) and lengths of 12 meters, compatible with Q235, Q345, and galvanized steel grades.
- Punching Capacity: Achieves punching diameters from Φ12 mm to Φ30 mm with hole spacing accuracy within ±0.1 mm, ideal for high-tolerance applications.
- Speed & Productivity: Operates at 15–20 punches per minute, supported by automatic feeding and sorting systems to maximize throughput.
- Intelligent Programming: Compatible with CAD/CAM software for custom hole layouts and batch processing of irregular profiles.
Real-Time Monitoring: Equipped with sensors and error-alert systems to ensure operational stability and minimize downtime.
CNC Angle Punching Machine 2020 Advantages for Tower Manufacturing
Precision Engineering: Ensures flawless bolt-hole alignment for tower assembly safety.
Cost Savings: Reduces material waste and labor costs through automation.
Scalability: Adapts to both small batches and large-scale production.
Welcome you to visit us for CNC Angle Punching Machine, We invite you to explore our facility and witness the CNC Angle Punching Machine 2020 in action.
Contact us today to schedule a visit and experience how the CNC Angle Punching Machine 2020 can elevate your tower manufacturing efficiency.
CNC Angle Punching Machine 2020 parameter
Angle size(mm):L63×63×4~L200×200×20
Max. punching (dia. × thi.)(mm):Φ26×20 Φ26; Φ22×50
Punching force(kN):1000
Marking force(kN):1030
Shearing force(kN):1800/4500
Max. length of blank(m):14
Max. length of finished(m):10
No. of punching head on each side(piece):3(2 round+1 oval)
No. of character group(piece):4
Character side (mm):14×10×19 By customers request
CNC axes(piece):3
Shearing mode:Dual blade cutting/Single blade cutting
Feeding speed of angle(m/min):40(Adjustable)
Processing precision:GB2694-81Accordance with GB2694-81
Programming mode:Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions (m):32×7×2.6
Gross Weight of machine (kg):16500
- Max Angle Size (mm):
- 200*200*20,Punching, Marking, Shearing
- Min Angle Size (mm):
- 63*63*4
- Max. Length of Finished (M):
- 12
- Shearing Mode:
- Single Blade
