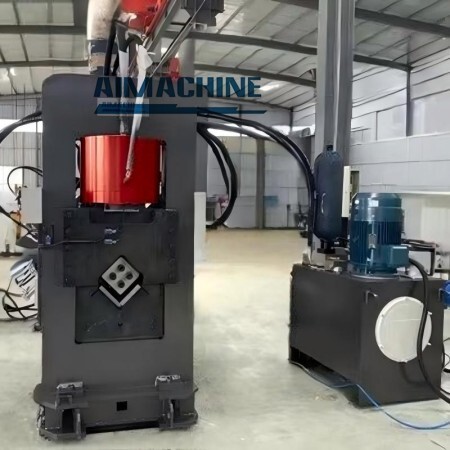

CNC Angle Steel Punching Stamping Cutting Machine

CNC Angle Steel Punching Stamping Cutting Machine

· The angle cutting and punching machine is professional automatic equipment for marking, punching and shearing of angle bar of power and telecommunication angle steel tower.

· The processing range of angle bar from L40 x 40 x 3 to L100 x 100 x 10 and length within 12000mm.

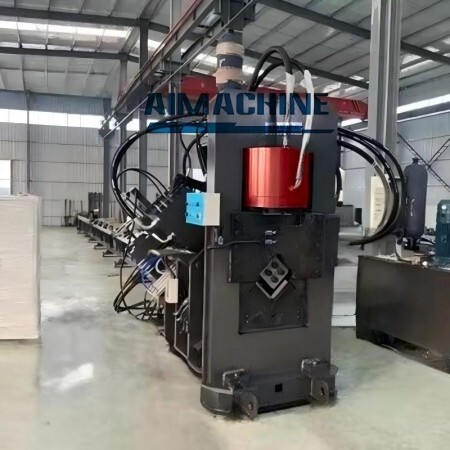

· The production line includes 6 units: material-loading unit, feeding unit, main body, finished products conveyor unit (automatically tilting unloading system), hydraulic power unit & electric control unit.

Machine Features

· Good rigidity, compact structure, optimal workpiece arrangement and high using rate of workpiece.

· Friendly computer interface can show workpieces’ figure, easy for operation.

· Easy programming, only need to input the data of workpiece, including size, hole diameter, stadia accuracy and quantity. Or use the programming data created by lofting software.

· Many solutions are adopted to resolve problems such as infeeding difficulty and stadia accuracy error which are caused by angle steel deformation.

· With CNC and serve motor achieves it high efficiency and stable working accuracy.

· The key hydraulic pneumatic and electrical elements are all imported from Germany, Japan, and South Korea etc.

· Marking, punching and shearing are automatically operated with high efficiency.

Parameters‌

This CNC Angle Steel Punching Stamping Cutting Machine combines speed, accuracy, and automation, significantly boosting production efficiency in steel processing workflows‌.‌
