CNC Flat Bar and C Channel Punching Marking Cutting Machine

AJX1519  C Channel Punching Machine is a machine that  integrates punching, marking and shearing for the angle steel, C channel steel and flat bar. One machine can finish three functions for three kinds of metal materials.
This C Channel Punching Machine is composed by six parts: workpiece loading part, feeding part, host machine, finished workpiece unloading part, electrical control part, hydraulic power part.

C Channel Punching Machine Feature

1.High-Efficiency CNC C Channel Punching Machine Solution

Intelligent Feeding System – Precision Positioning for C-Channel Processing
Equipped with a ‌CNC-controlled servo feeding system‌, integrating conveyor rollers, precision linear guides, and lateral positioning wheels to achieve millimeter-level accuracy for C-channel/steel channel feeding. Operators simply load materials manually, and the CNC feeding car automatically clamps and positions workpieces via a synchronous belt drive, delivering materials to processing stations per computer instructions.

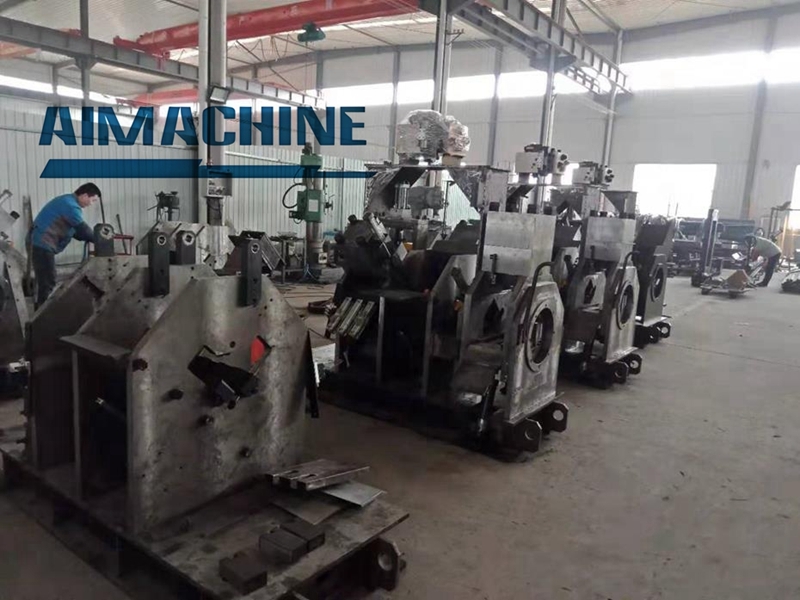

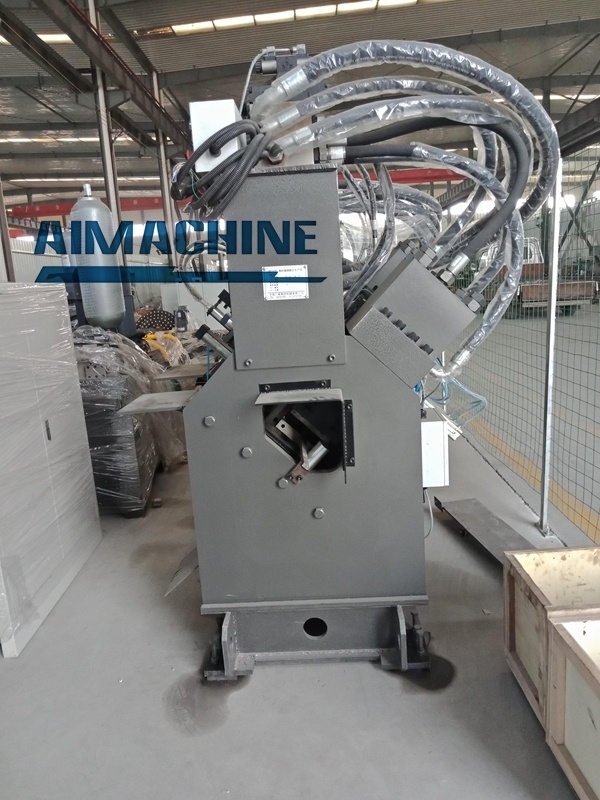

2.Multi-Station Punching & Shearing Host – Tri-Side Synchronized Processing

Dedicated C Channel Punching Machine‌ features three integrated systems:
(1)Hydraulic Clamping Unit‌: 500KN pressure stabilizes workpieces, preventing C-channel deformation during processing.

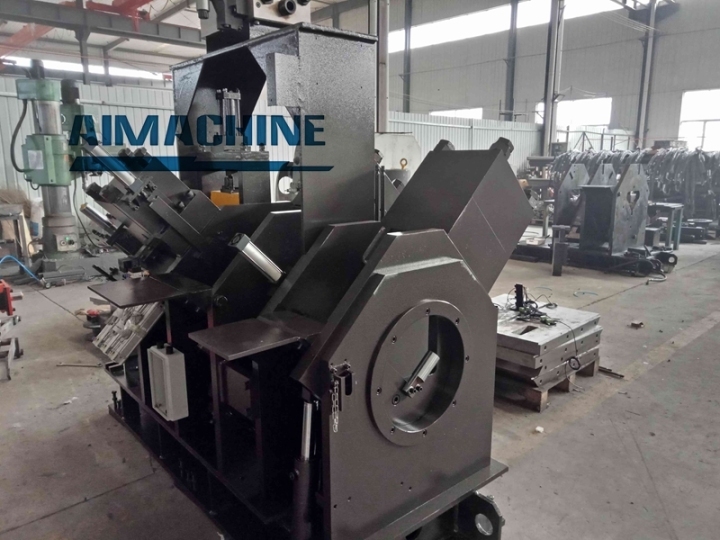

(2)3-Station Punching Unit‌: Enables multi-angle simultaneous punching (max. 16mm thickness).

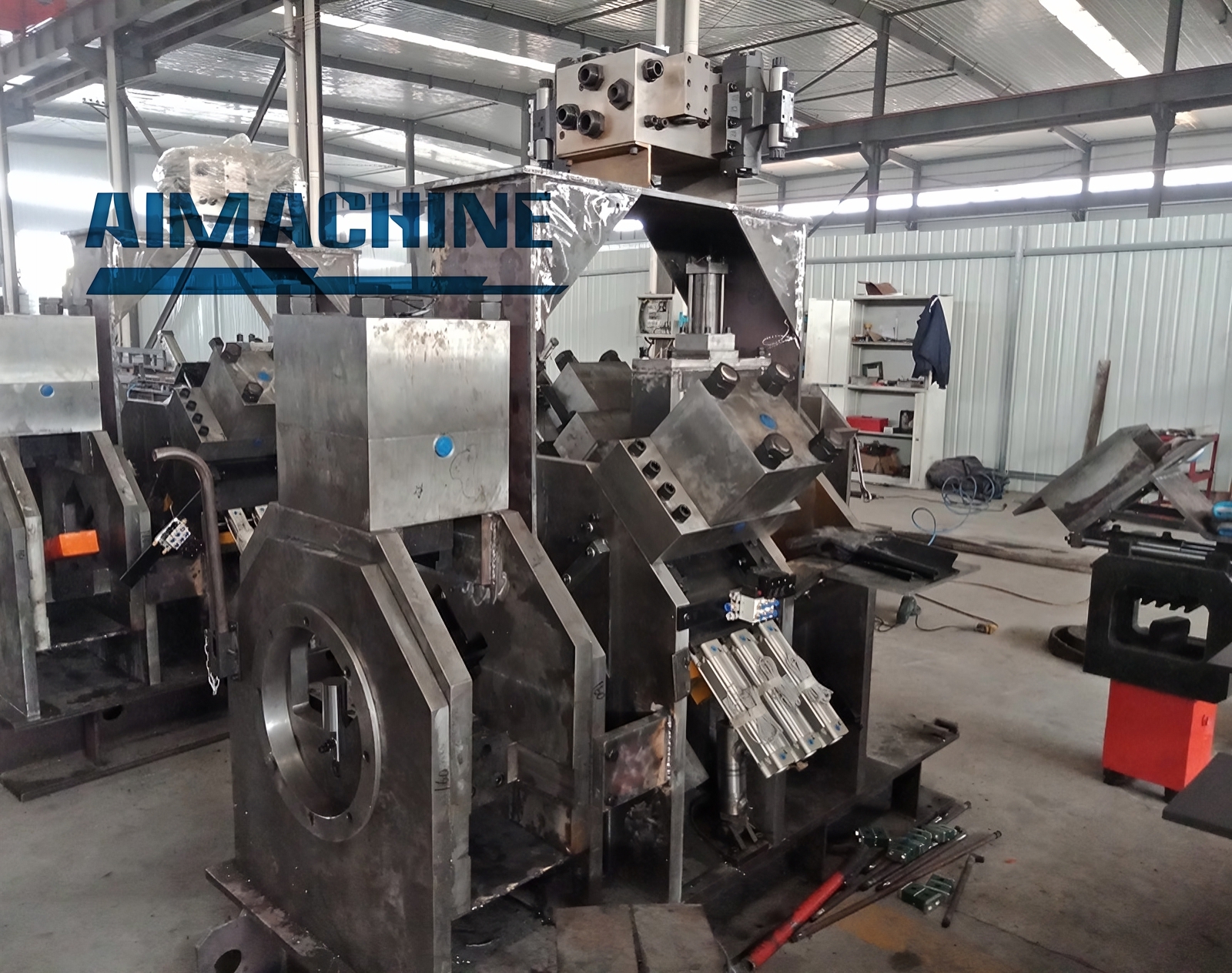

(3)Smart Shearing System‌: Modular blade design (upper/lower blade holders + translation mechanism) supports quick mold changes for cutting:

•   Angle steel (L-type 50-150mm)

•   Channel steel (C-type 80-300mm)

•   Steel plate (max. 20mm thickness)

3.Automated Unloading System Of C Channel Punching Machine

Programmable lateral discharge rollers enable:

• Left/right-side automatic unloading (customizable)

• Finished product stacking & counting

• Defective workpiece sorting

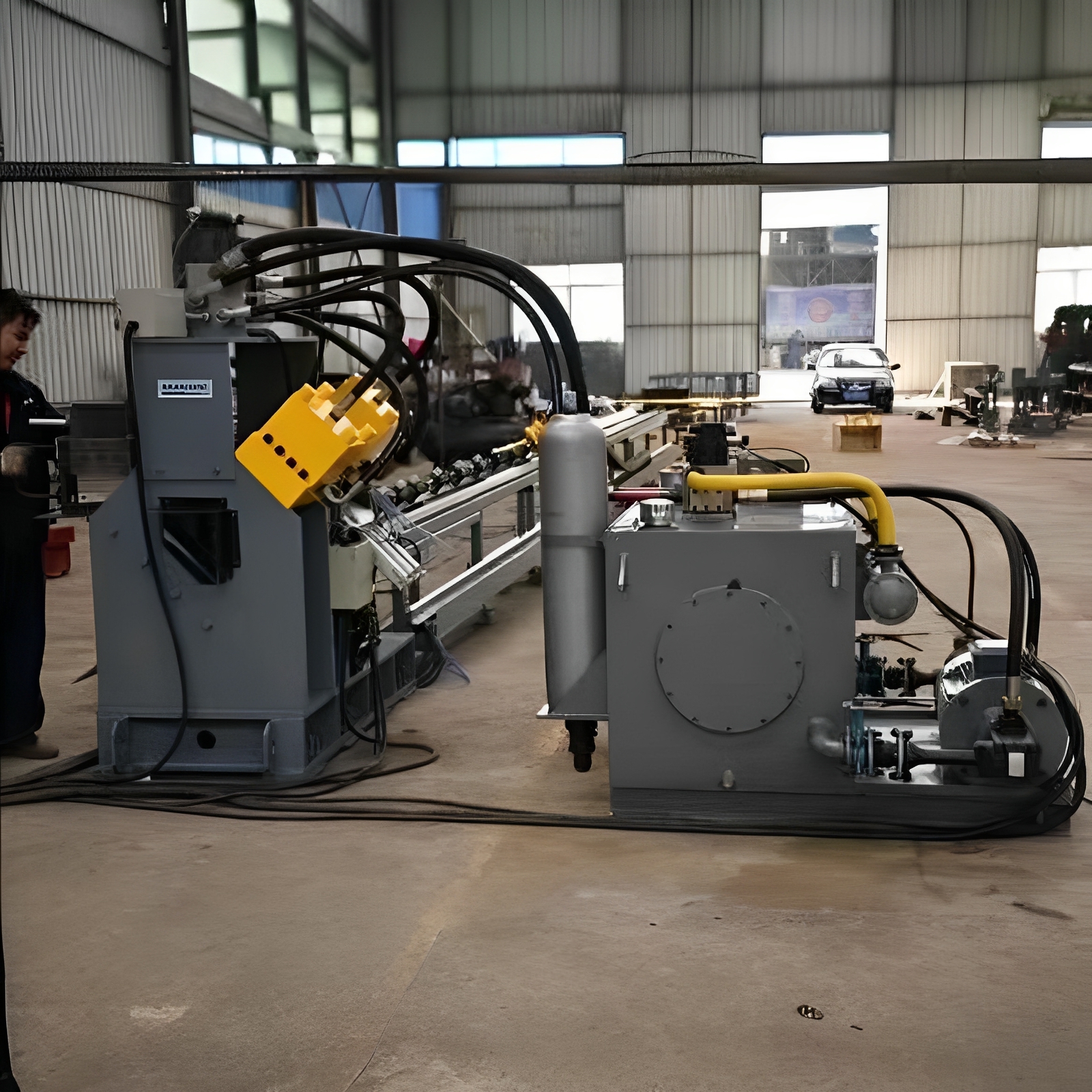

4.High-Performance Hydraulic Power System

Modular hydraulic station‌ delivers:

• ✓ Ferrule-type pipe connections – 90% leakage reduction

• ✓ Integrated valve blocks – 25% energy savings

• ✓ Dual plate/cartridge valve system – 40% faster maintenance

5.Intelligent Control Platform

Industrial-grade CNC system with:

• ★ Graphical programming interface – Direct DXF import

• ★ Real-time monitoring – 20+ sensor data tracking

• ★ Smart diagnostics – CRT display shows:

•    Error codes & solutions

•    Maintenance alerts

•    Efficiency analytics

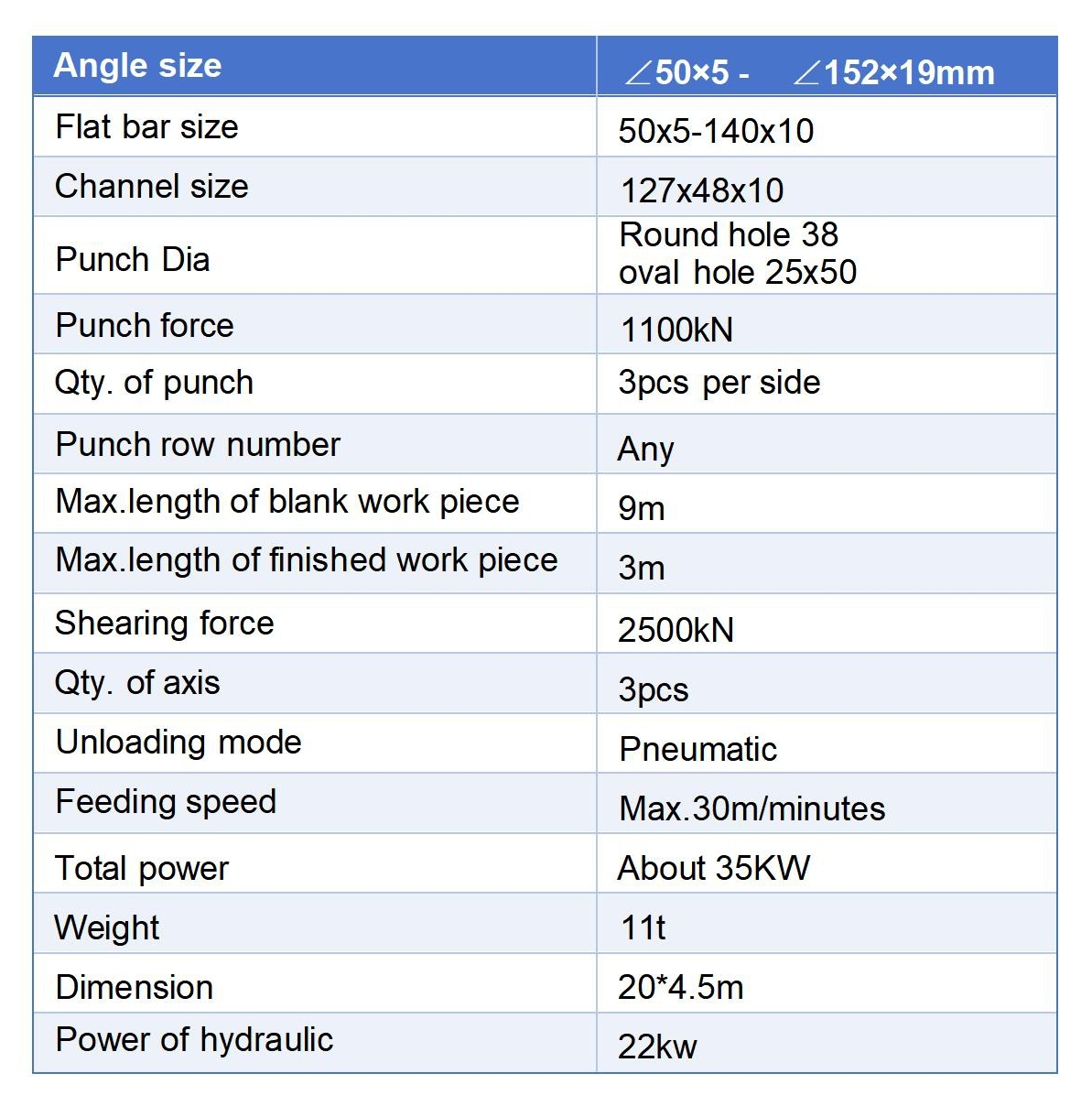

• Parameter of C Channel Punching Machine
