CNC Steel Plate Punching Machine: Multi-Industry Precision Fabrication

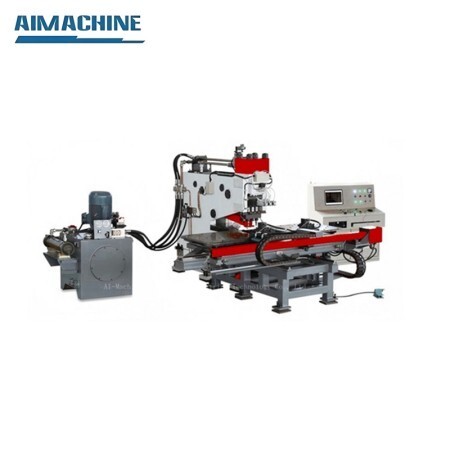

Product Overview
CNC Hydraulic Punching Drilling Marking Machine is a multi-function plate processing equipment, which integrates automatic punching, drilling, marking and scribing functions for steel plates.
Adopting CNC control system and hydraulic driving system, it features high efficiency, high precision, stable performance and easy operation, widely used in steel structure, tower, bridge, boiler and other industries.
It is an ideal equipment for automatic and efficient plate processing. Read our professional guide: Why CNC Steel Plate Punching Machines Revolutionize Modern Metal Fabrication.
Key Features
- Multi-function integration: punching, drilling, marking, scribing all in one machine
- CNC control system, automatic processing, high efficiency and high precision
- Hydraulic power system with strong pressure and stable operation
- Large processing range, suitable for various thickness steel plates
- Automatic feeding and positioning, saving labor and improving efficiency
- Rugged structure, long service life, low failure rate
Technical Specifications
| Item | PP1580 | PP2560 | PP3350 |
|---|---|---|---|
| Model | PP1580 | PP2560 | PP3350 |
| Max size of work piece L×W(mm) | 1500×800 | 2500×600 | 3300×500 |
| Max. diameter of punching (mm) | Φ26 | Φ30 | Φ30 |
| Plate thickness of punching (mm) | 5～25 | 5-30 | 5-30 |
| Punching force (kn) | 1000 | 1400 | 1400 |
| Marking force (kn) | 800 | 1000 | 1200 |
| Die-stations | 3 | 3 | 3 |
Main Applications
This CNC hydraulic punching drilling marking machine is widely used in steel structure, power transmission tower, communication tower, bridge, boiler, petroleum, chemical and metal plate processing industries, providing high-efficiency one-stop processing solutions.
Frequently Asked Questions
Q: What functions does this machine have?
A: It integrates punching, drilling, marking functions for steel plates.
Q: What materials can it process?
A: It can process carbon steel plates, alloy steel plates and other metal plates.
Q: Is it automatic control?
A: Yes, it adopts CNC automatic control system for high efficiency processing.
Q: How about warranty and service?
A: We provide 12-month warranty, lifelong maintenance and global after-sales support.
View More Related Products
CNC Plate Processing Machine- Model 1:
- 1500*800mm plate size
- Model 2:
- 2500*600mm plate size
- Model 3:
- 3300*500mm plate size
- Punch hole size:
- 5-25mm,5-30mm
- Stamping characters:
- YES
- Punch die:
- 3 stations
