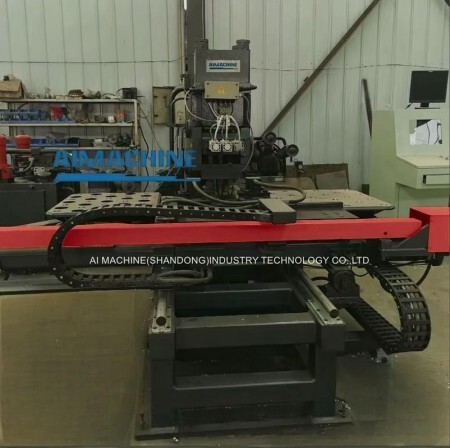

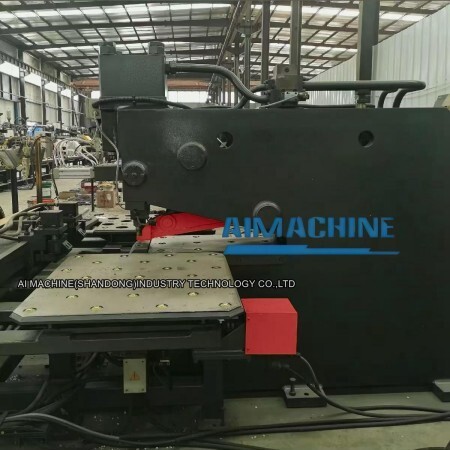

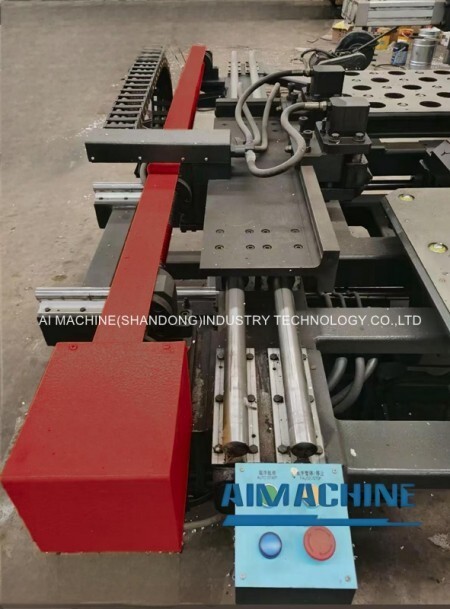

Our case-PP1580 CNC Steel Plate Punching Machine for Tower Connection Plates

Core Technical Parameters‌

1. ‌Performance Specifications‌ of cnc steel plate punching machine

  Punching Capacity‌:

•   Plate dimensions: Up to ‌1,800 × 600 mm‌‌
•   Material thickness: ‌5–30 mm‌ (Q235/Q460 steel)‌
•   Max punching diameter: ‌Φ32 mm‌‌

  Precision Control‌:

•   Positioning accuracy: ‌±0.02 mm‌ via servo motors and ball screws‌
•   Angular tolerance: ‌±0.5°‌ for lattice tower assembly‌

2. ‌Model Comparison‌

  Parameter                 Standard  Model                         High-Capacity Model

  Max Plate Thickness          25mm (Q235)                          30mm (Q460)

  Punching Speed           120 holes/hour                  150 holes/hour

  Tool Stations                  3 (punch/mark/shear)        5 (multi-process)

Industrial Applications‌

1. ‌Energy Infrastructure‌

•   Produces ‌800+ monthly connection plates‌ for 500kV+ transmission towers‌
•   Automated hole alignment ensures ‌bolt-fit accuracy‌ in lattice structures‌

2. ‌Heavy Steel Fabrication‌

  Processes ‌bridge bearing plates‌ with 15+ complex hole patterns‌

  Integrated QR code marking for ‌component traceability‌‌

Key Operational Advantages‌

1. ‌Efficiency Enhancements‌

•   30% faster mold changes‌ via modular tooling systems‌
•   9–10 ton daily output‌ in 8-hour shifts‌

2. ‌Smart Manufacturing Features‌

•   IoT-ready design supports ‌predictive maintenance‌ protocols‌
•   CAD/CAM direct import eliminates manual programming errors‌

Certification & Compliance‌

•   Dual-standard validation: ‌GOST R 54122-2010‌ & ‌ISO 9013‌‌
•   Centralized lubrication ensures ‌-25°C low-temperature operation‌‌
