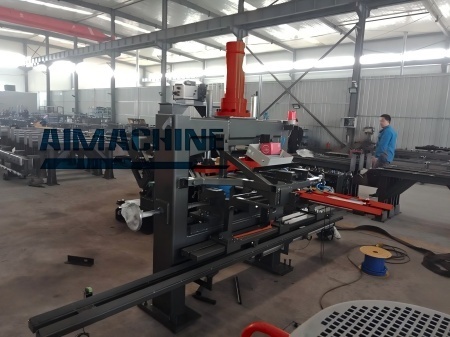

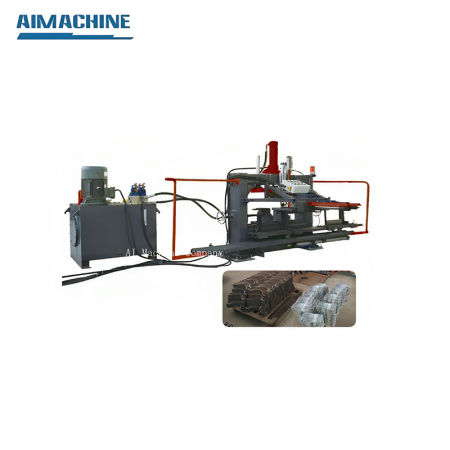

Flat And Angle Processing Flat Bar Bending Machine

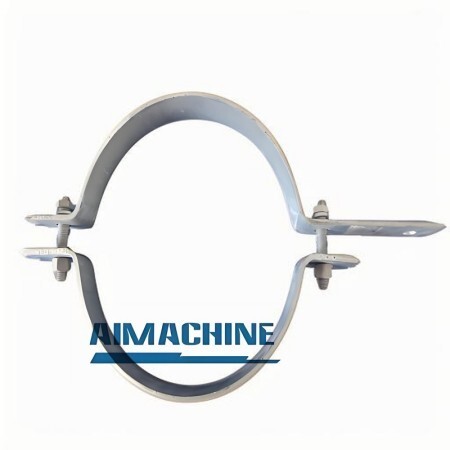

Suitable for automatic bending forming of flat bar clamps in the power fittings and iron accessories industry. Independent hydraulic power system and electrical control system, high degree of automation, strong production capacity.
Model of Flat Bar Bending Machine
| Model | BF80/2 | BF100 | BF120 |
| Clamping size (mm) | ∅120-400 | ∅120-500 | ∅120-500 |
| Size of flat bar (mm) | 800*80*8 | 1000*100*10 | 1000*120*10 |
| Bending force (kn) | 200 | 300 | 400 |
| Times of bending (times/min) | 15-25 | 10-20 | 10-20 |
| Pressure of hydraulic system (mpa) | 25 | ||
| Motor power (kw) | 11 | 11 | 15 |
| Dimension (m) | 4*2*2 | 4.5*4.5*2.3 | 4.5*4.5*2.3 |
| Weight (kg) | 1700 | 2400 | 2600 |
- Model:
- ABG80
- Form size:
- φ120-400
- Maximum size of Blank :
- 800*80*8mm
- Minumim size of blank:
- 260*40*4mm
- Press force:
- 200kn
