APM1412 CNC Angle Punching Machine for Power Transmission Towers Angles 140*12mm

APM1412 CNC Angle Cutting Machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry, steel structure and buildings.

Key Features of the CNC Angle Cutting Machine APM1412

1.Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2.The APM1412 cnc angle cutting machine has two or three sets punch and die on each side which can install three kinds of punches with different diameters, can process all holes once time.
3.Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming, can manual programming and also can use the program generated by lofting software.
4.CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
5.All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
6.Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program.
7.With avoided shearing functions, so as to process fixed-length angles.

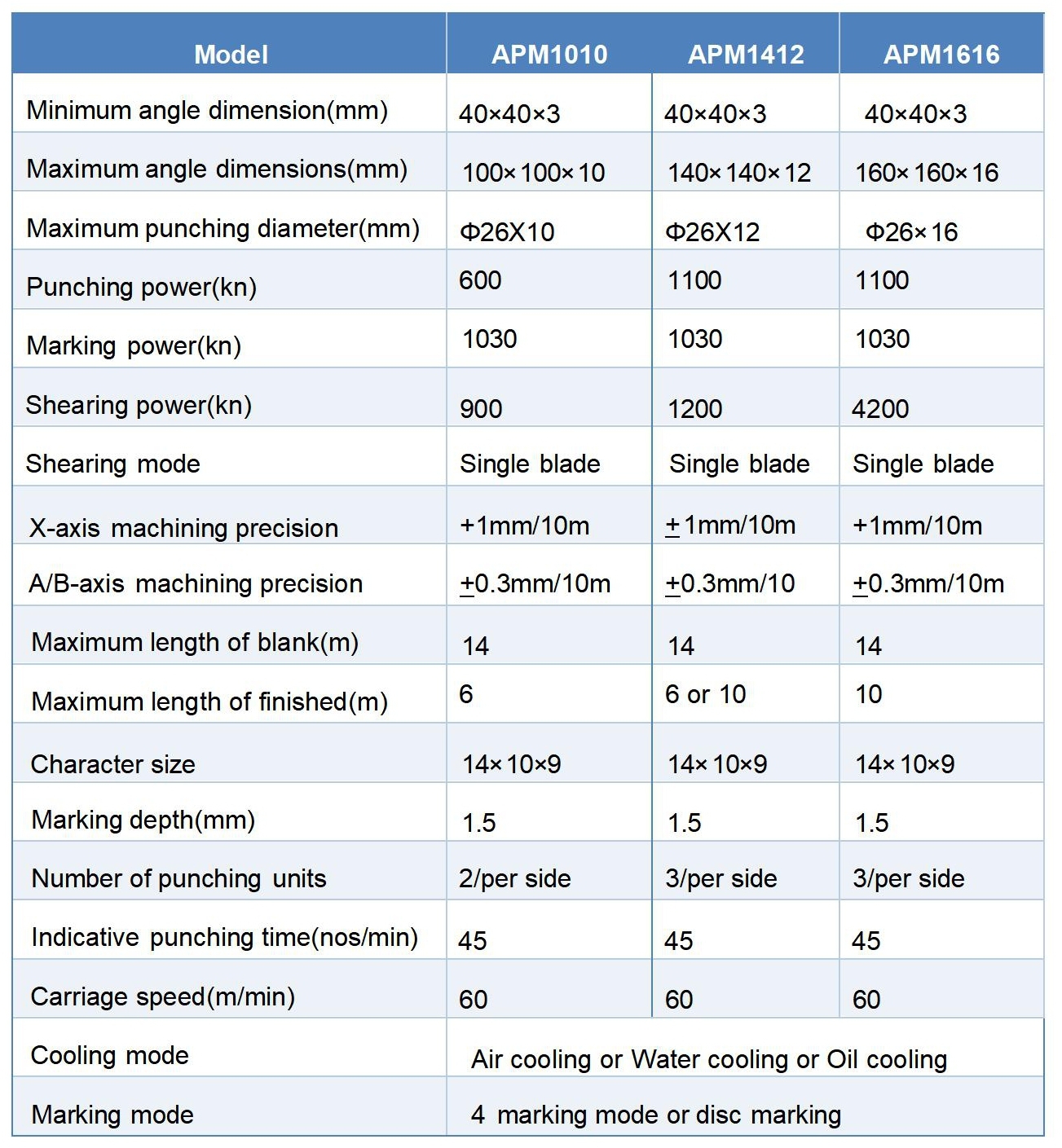

Processing range of CNC Angle Cutting Machine

Contact us today‌ to schedule a visit and experience how the CNC Angle Punching Machine 2020 can elevate your tower manufacturing efficiency.
