Our case -APM2020 CNC Angle Punching Machine Overview‌

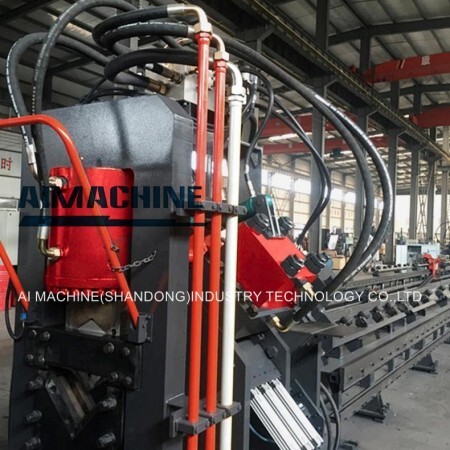

The ‌APM2020 CNC angle punching machine‌ is a state-of-the-art automated system engineered for high-precision, large-scale processing of angle steel in heavy industrial applications. As a flagship ‌CNC angle punching machine‌, it combines advanced automation, robust hydraulic power, and intelligent programming to meet demanding fabrication requirements.

1.Core Functions‌

High-Capacity Punching & Marking‌

Punching‌: Delivers a punching force of ‌1500 kN‌, capable of creating holes up to ‌Φ30 mm‌ in diameter, even in high-strength materials like Q420 steel‌.

Marking‌: Features ‌6-axis servo-driven marking heads‌ for permanent engraving (text, logos, or barcodes) with a force of ‌600 kN‌‌.

Shearing‌: Equipped with a ‌2200 kN hydraulic shear‌ for cutting angle steel up to ‌∠250×250×25‌ and lengths of ‌16 m‌‌.

Intelligent Automation‌

Utilizes a ‌5-axis CNC servo system‌ with ‌±0.05 mm positioning accuracy‌, enabling complex multi-angle hole patterns and infinite gauge line adjustments‌.

Integrates automated material feeding and sorting, achieving speeds of ‌50 m/min‌ and a punching rate of ‌1,200 holes/hour‌‌.

2.Technical Specifications‌ of cnc angle punching machine

Material Compatibility‌ Angle steel: ‌∠60×60×6 to ∠200×200×20

Control System‌ Industrial PC with ‌IoT connectivity‌, CAD/CAM integration, and real-time diagnostics‌

Production Capacity‌ ‌15–18 tons per 8-hour shift‌‌

Workpiece Length‌ Up to ‌18 m (raw material)‌‌

3.Applications‌ of cnc angle punching machine

Heavy Infrastructure‌: Fabrication of components for bridges, wind turbine towers, and offshore platforms requiring ultra-high precision‌.

Railway & Transportation‌: Processing structural steel for rail tracks, cargo frames, and heavy-duty connectors‌.

Energy Sector‌: Manufacturing supports for nuclear facilities and high-voltage transmission towers‌.

4.Advantages‌

Unmatched Power‌: Designed for heavy-duty operations with reinforced frames and imported hydraulic components‌.

Smart Manufacturing‌: IoT-enabled for remote monitoring, predictive maintenance, and data-driven optimization‌.

Versatility‌: Handles diverse profiles (angle steel, channel steel, H-beams) and batch sizes (prototypes to mass production)‌.

The ‌APM2020 CNC angle punching machine‌ redefines industrial efficiency, offering unparalleled precision, scalability, and connectivity for next-generation metal fabrication‌.
