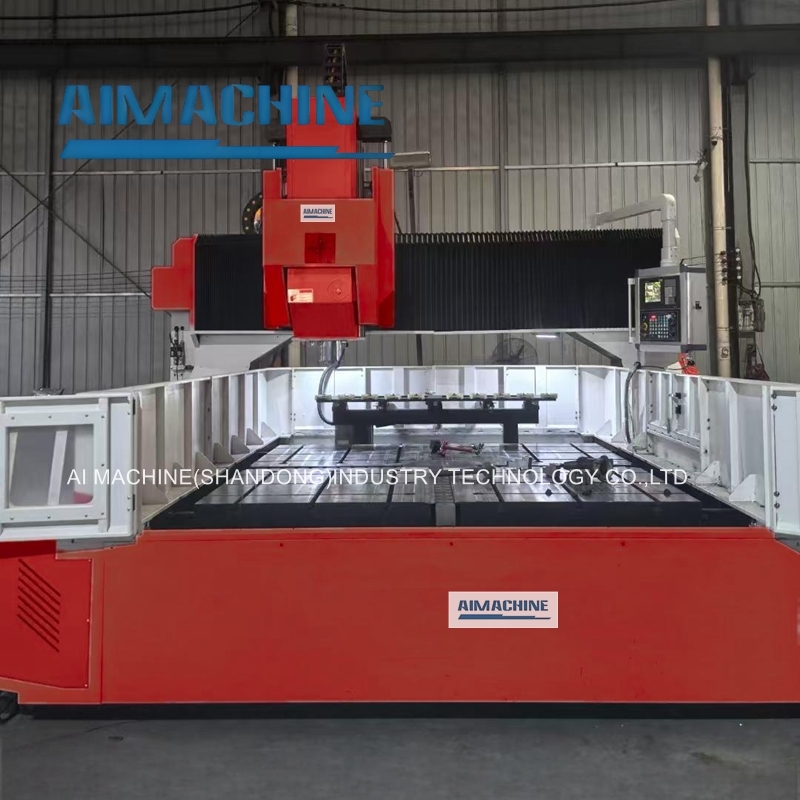

For industries demanding flawless accuracy and speed in steel plate/flange/tube sheet drilling, the PHD2016 CNC Flange Drilling Machine delivers unmatched capabilities. Combining advanced automation, robust engineering, and user-friendly operation, this machine is designed to optimize productivity across construction, shipbuilding, energy, and heavy machinery sectors.
Key Features of the PHD2016 CNC Flange Drilling Machine

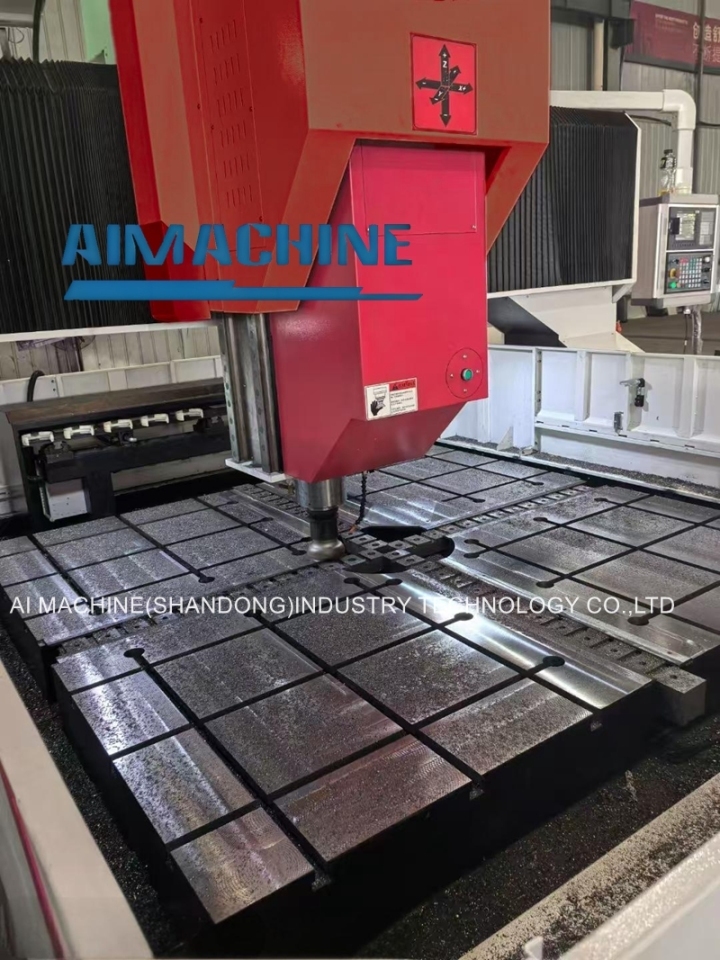

1.Auto-Switch Z-Axis Spindle for Versatile Drilling
The CNC-controlled Z-axis spindle features a pre-set stroke system that automatically switches between through-holes and blind holes with ±0.1mm precision. This high-efficiency design ensures rapid cycle times, simplified maintenance, and consistent results for complex drilling tasks.
2.12 Hydraulic Clamps & T-Slot Worktable
Secure large or irregular steel plates effortlessly with 12 hydraulic clamps and T-slot fixtures. This setup reduces workpiece alignment time by 50%, boosting throughput while eliminating slippage during high-torque operations.
3.Triple-Axis CNC Control with Premium Motion Systems
- X-Axis: Gantry movement for wide-range plate coverage.
- Y-Axis: Drilling head traverse for precise positioning.
- Z-Axis: Spindle feed control for depth accuracy.
All axes are driven by high-precision servo motors and supported by linear guides and ball screws from top-tier brands, ensuring smooth motion and long-term durability.
4.Integrated Scrap Cleaner System
Automatically collect iron debris and cutting fluid, maintaining a clean workspace and reducing manual cleanup. This feature enhances tool lifespan and supports eco-friendly operations.
5.Automatic Lubrication for Critical Components
Protect linear guides and ball screws with a self-lubricating system that minimizes wear, lowers maintenance costs, and ensures uninterrupted performance.
6.CNC System with CAD/CAM Integration
The CNC system, paired with an onboard computer, allows seamless import of CAD/CAM files. Operators can program intricate drilling patterns in minutes, streamlining workflows for custom projects.
7.Premium Brand Components for Reliability
From servo motors and inverters to electrical parts, the PHD2016 uses globally renowned components, guaranteeing compliance with international standards and reliable 24/7 operation.
Technical Specifications of PHD2016 CNC Flange Drilling Machine
