China Factory-Gantry Type CNC Drilling Machine/Angle Lines
Our case-APM1010 CNC Angle Cutting Machine

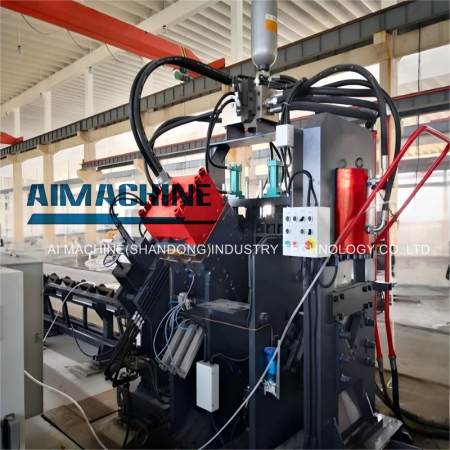

Our factory has successfully installed and commissioned the CNC Angle Punching Machine, a high-performance solution for automated steel angle processing. This CNC angle Cutting machine integrates advanced functionalities to enhance productivity in industries such as power transmission towers, telecommunications, and steel structure manufacturing. Below are its key features and applications:
Functional Parameters
- Processing Range: Handles angle steel dimensions from ∠63×63×4 to ∠200×200×20, supporting diverse industrial requirements.
- Maximum punching diameter: Φ25.5mm (for 20mm-thick Q345 steel) with a punching force of 1100kN.
- Multi-position punching: Up to 3 punches per side and unlimited punching rows, enabling complex hole patterns.
| Model | APM1010 | Unit |
| Angle size | L40×40×3~L100×100×10 | mm |
| Max. punching | Φ26; Φ22×50;(Q235) | mm |
| Punching force | 600 | kn |
| Marking force | 700 | kn |
| Shearing force | 1200 | kn |
| Max. length of blank | 12 | m |
| Max. length of finished | 10 | m |
| Qty. of punching head | 3(2 round+1 oval) | |
| Qty. of character group | 4 | |
| Character side | 14×10×19 | |
| Shearing mode | Single blade cutting | mm |
| Feeding speed | 90 | m/min |
| Overall dimensions | 27*5.5*2. 5 | m |
| Weight of machine | 12000 | kg |
Speed & Efficiency
- Feed speed: 40m/min, achieving approximately 1,000 holes/hour for standard workpieces.
- Triple the processing speed of conventional machines, ideal for small-angle steel production.
- Cutting System: Utilizes dual-blade shearing with a force of 1800kN, ensuring precise cuts and material savings.
Automation
- Automatic marking, punching, and shearing via PLC and servo motor control.
- Air-driven flipping for finished product discharge, reducing manual handling.
Programming & Compatibility
- Supports NC1 file formats and interfaces with CAD/CAM software.
- User-friendly CNC system with Chinese/English interfaces and real-time graphical display.
Applications
The APM1010 CNC angle Cutting machine excels in:
- Power/Telecommunication Tower Manufacturing: Rapid production of stamped and labeled angle components.
- Structural Steel Fabrication: High-precision processing for bridges, buildings, and industrial frameworks.
- Material Optimization: Single-edge shearing and programmable parameters minimize material waste.
Technical Advantages
- Durability: Linear guides and hardened racks ensure long-term stability under heavy use.
- Energy Efficiency: Servo-driven systems reduce power consumption while maintaining precision.
This cnc angle punching machine combines speed, accuracy, and automation, significantly boosting production efficiency in steel processing workflows.
Welcome you to visit our factory for checking cnc angle punching machine！
- Max Angle Size (mm):
- 200*200*20,Punching, Marking, Shearing
- Min Angle Size (mm):
- 63*63*4
- Max. Length of Finished (M):
- 12
- Shearing Mode:
- Single Blade
