Our case-India User successfully runing APM1412 CNC Angle Punching Machine

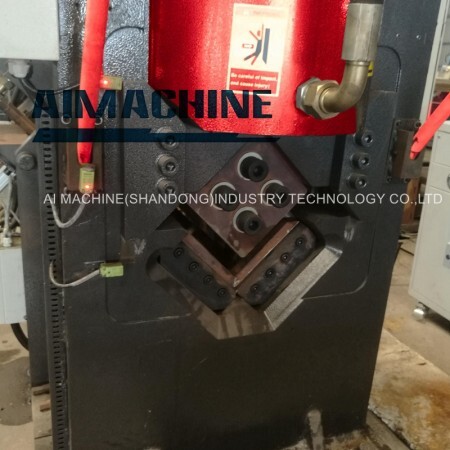

APM1412 CNC Angle Punching Machine: Functional Parameters & Applications
Our factory has successfully commissioned the APM1412 CNC Angle Punching Machine in India, delivering high-efficiency solutions for steel structure fabrication. Below is a detailed overview of its capabilities and technical specifications:
Core Functions
Multi-Axis CNC Control: Enables dual-wing punching for complex hole patterns on both sides of angle steel, ensuring ±0.15mm positioning accuracy.
Automated Tool Switching: Integrates three pneumatic quick-die-change modules to process three different hole diameters (e.g., Φ12–Φ25.5mm) in a single workflow.
Integrated Shearing Unit: Supports dual-blade or single-blade cutting (force: 1,800kN) for precise material separation and waste reduction.
Technical Parameters
Material Compatibility:
Processes angle steel: ∠40×40×3mm to ∠150×150×16mm.
Max workpiece length: 14m; finished product length: up to 12m.
Punching Performance:
Max punching diameter: Φ25.5mm (Q345 steel, 20mm thickness) with 1,100kN force.
Hole density: Achieves 1,000 holes/hour at a feed speed of 40m/min.
Automation Features:
PLC-driven servo motors for synchronized material handling and positioning.
Automatic marking system with 4 stamping groups (force: 540kN) for traceability.
Industrial Applications
Power Transmission Towers: Rapid production of high-precision angle components with stamped holes and labels.
Steel Structure Fabrication: Ideal for bridges, warehouses, and industrial frameworks requiring multi-row hole patterns.
Material Optimization: Reduces scrap rates by 18% through programmable nesting and single-edge shearing.
Advantages
Durability: Forged worktable and hardened linear guides ensure longevity under heavy-duty operations.
User-Friendly Interface: Supports USB/CAD/CAM input and bilingual (CN/EN) CNC programming.
Visit Our Factory
Witness the APM1412 CNC Angle Punching Machine in action! Contact us for a guided tour to explore its advanced capabilities firsthand.
- Max Angle Size (mm):
- 200*200*20,Punching, Marking, Shearing
- Min Angle Size (mm):
- 63*63*4
- Max. Length of Finished (M):
- 12
- Shearing Mode:
- Single Blade
