APM2020 CNC Angle Punching Machine for Lattice Tower Manufacturing

APM2020 CNC Angle Punching Machine‌ redefines precision and productivity in large-scale steel fabrication. Designed for processing angle steel profiles up to ‌L200×200 mm‌ with leg thicknesses of ‌6–20 mm‌, this industrial-grade system integrates advanced automation and robust engineering to tackle complex structural components.

Key Technical Parameters of APM2020 CNC Angle Punching Machine‌:

    1. Profile Dimensions: L60×60 mm to L200×200 mm

    2. Max Length: 12 meters

    3. Material Thickness: 6–20 mm (steel grades up to Q355)

Core Performance of APM2020 CNC Angle Punching Machine‌:

    1. Punching Force: 50 tons (hydraulic system with pressure compensation)

    2. Positioning Accuracy: ±0.1 mm (X/Y axes)

    3. Angular Accuracy: ±0.02°

Punching Speed: 60 strokes/minute

Smart Features of APM2020 CNC Angle Punching Machine‌：

    1. Automatic Angle Recognition: Adjusts tooling for variable cross-sections

    2. Dual-Station Design: Independent punching and shearing modules reduce idle time

    4. Collision Avoidance: AI-powered sensors prevent tool damage

Energy Efficiency of APM2020 CNC Angle Punching Machine：‌

    1. Regenerative Braking: Recovers 20% of energy during deceleration

    2. Power Consumption: 18 kW (average load)

Applications of APM2020 CNC Angle Punching Machine‌

    1. Power Transmission Towers‌: Processes 15-meter lattice angles with ±0.15 mm hole alignment

    2. Bridge Construction‌: Punches reinforced nodes for truss systems at 45 operations/hour

    3. Offshore Platforms‌: Handles corrosion-resistant steel with automatic lubrication

Visit Our Facility‌

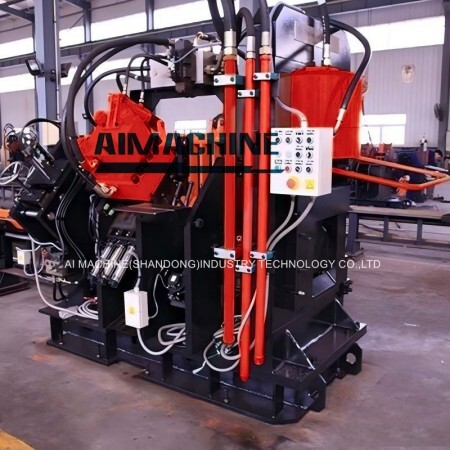

See the APM2020 CNC angle punching machine in action:

Contact sales@aimachinecn.com to request a technical datasheet. Upgrade your fabrication capabilities with CNC Angle Punching Machine APM2020’s unmatched power and intelligence.
