CNC Angle Punching Machine for Angle Iron Punching Marking Shearing
CNC Angle Punching Machine
1. Automated Punching & Marking

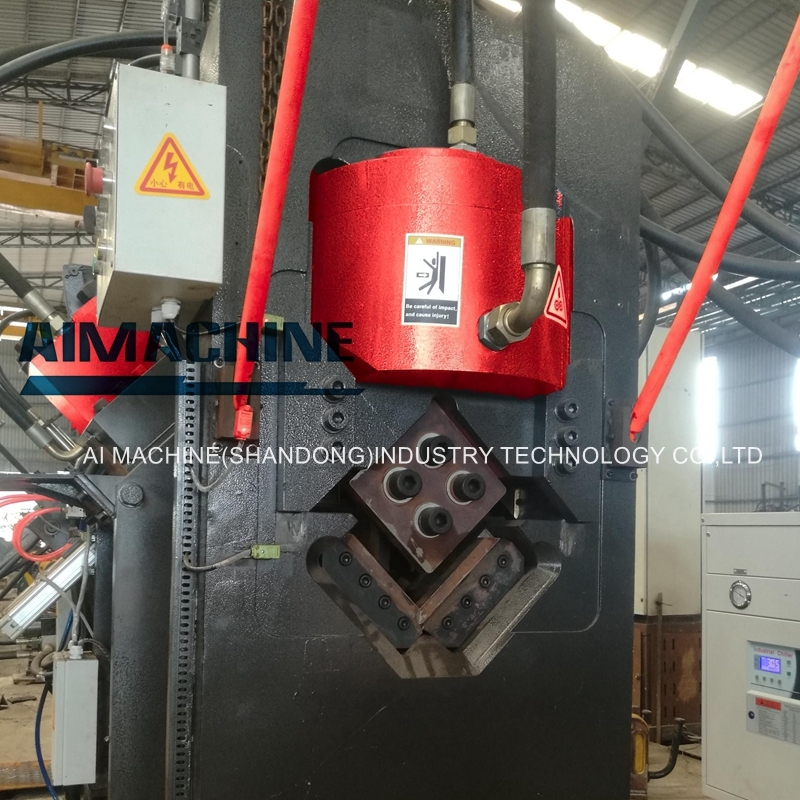

(1) Precision Punching: The CNC angle punching machine performs high-accuracy hole drilling (up to Φ30 mm) in angle steel, channel steel, and flat bars, driven by hydraulic systems with forces exceeding 1500 kN.

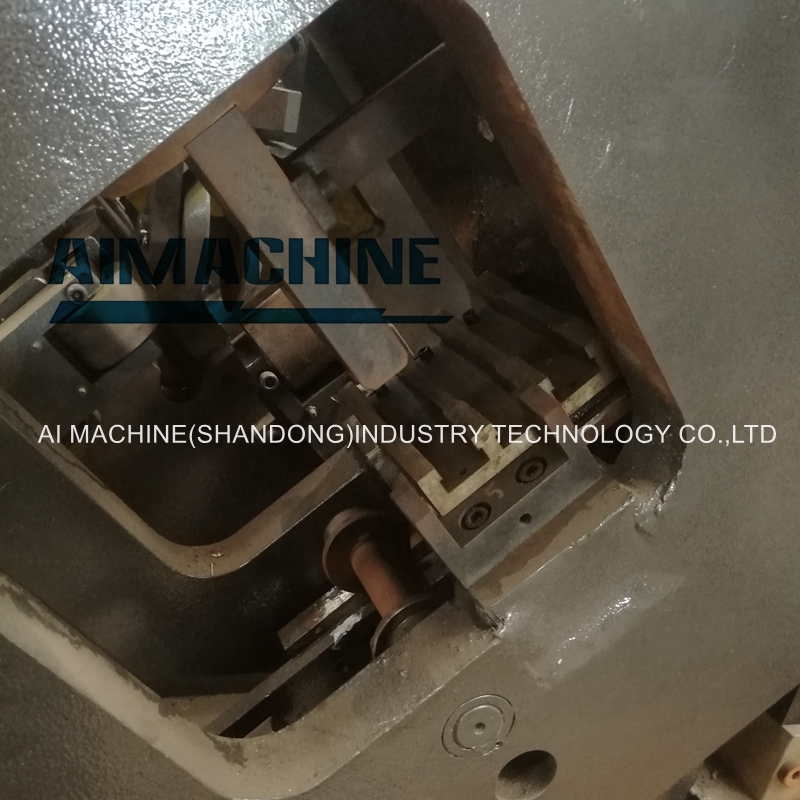

(2) Permanent Marking: Equipped with servo-controlled marking heads, it engraves text, logos, or codes on steel surfaces for traceability.
(3) Multi-Axis Control: A CNC servo system ensures infinite gauge line adjustments and complex hole patterns (±0.1 mm accuracy).
2. Integrated Shearing & Material Handling

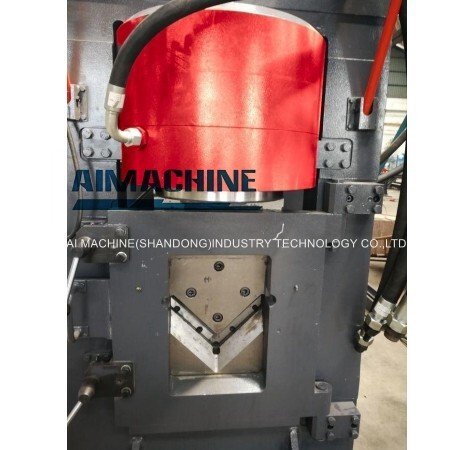

(1) Hydraulic Shearing: Cuts angle steel up to ∠200×200×20 with forces up to 2200 kN, achieving clean edges for structural assembly.

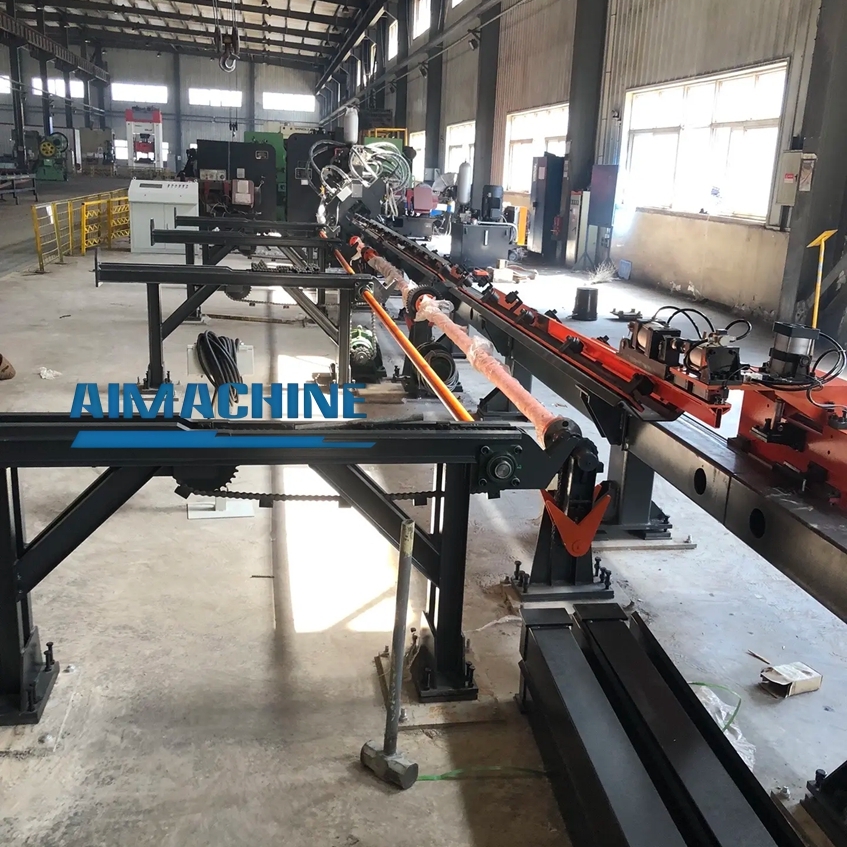

(2) Automated Feeding: Supports continuous processing of materials up to 18 m in length, reducing manual intervention.
Parameter of APM2020 CNC Angle Punching Machine
| Model | APM2020 |
| Angle size(mm) | L40×40×3—L200×200×20 |
| Max. hole size | Φ26×20(16mm,Q345) |
| Punching force(kn) | 1000 |
| Typing force(kn) | 1000 |
| Shearing force(kn) | 3500 |
| Max. length of blank(m) | 14 |
| Max. length of finished(m) | 12 |
| Qty. of punch on each side | 3 |
| Qty. of typing group | 4 |
| Character size(mm) | 14*10*19 |
| CNC axis | 3 |
| Shearing mode | Single blade shearing |
| Feeding speed(m/ minutes) | 90 |
| Punching speed (times/minutes) | 5-60 |
Applications of cnc angle punching machine

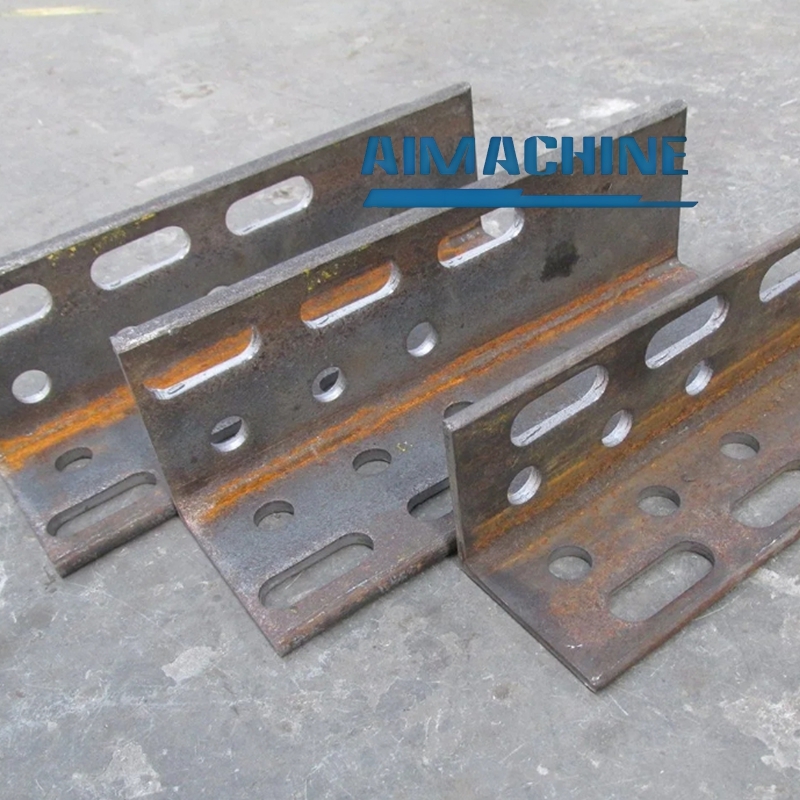

(1) Power & Telecommunication Towers: Fabricates angle steel components for high-voltage transmission towers and substations.
(2) Elevator Manufacturing: Processes structural parts like brackets and connectors in elevator systems.
(3) Steel Construction: Produces beams, trusses, and connectors for bridges, buildings, and industrial frameworks.
(4) Renewable Energy: Manufactures solar bracket supports and wind turbine tower components.
Advantages of cnc angle punching machine
(1) High Efficiency: Processes 9–18 tons per shift with automated punching, marking, and shearing.
(2) Versatility: Adapts to diverse materials (angle steel, channel steel) and batch sizes (prototype to mass production).
(3) Durability: Built with reinforced frames and imported hydraulic components for heavy-duty operations.
Explore our advanced CNC angle punching machine solutions tailored to your industrial needs.
- Model:
- APM2020
- Angle Size:
- 63*63*4-200*200*20mm
- Max. Length of Finished:
- 12m
- Shearing Mode:
- Single Blade
