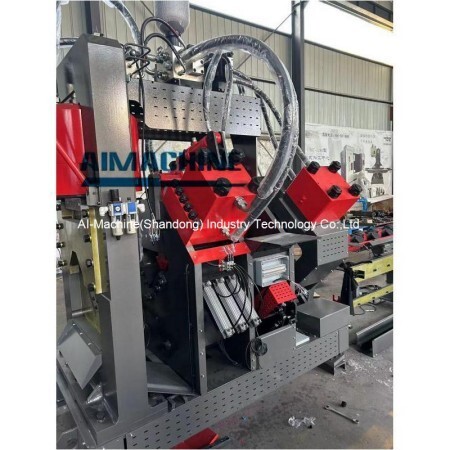

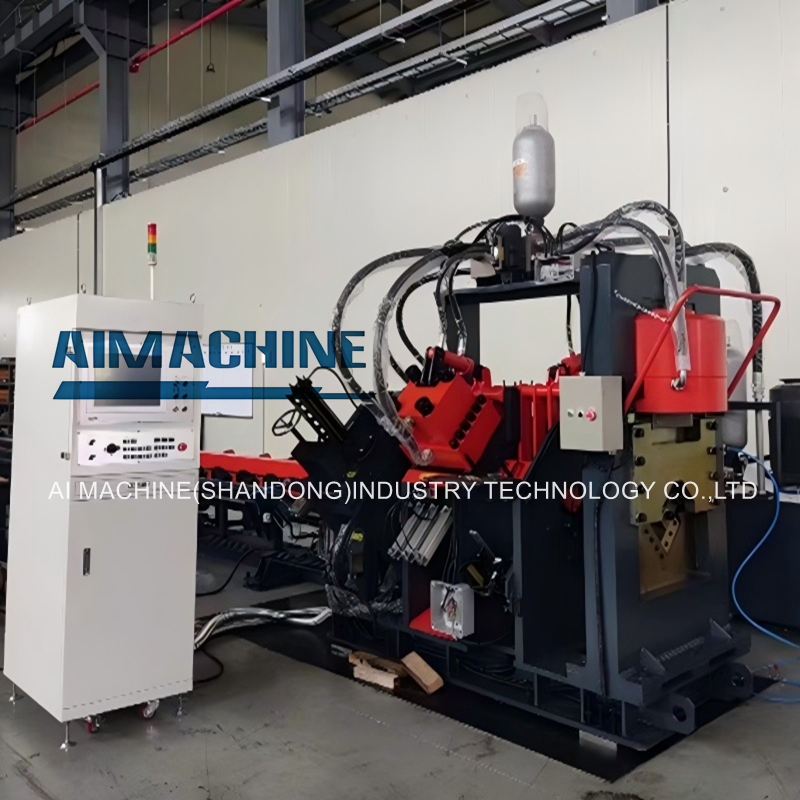

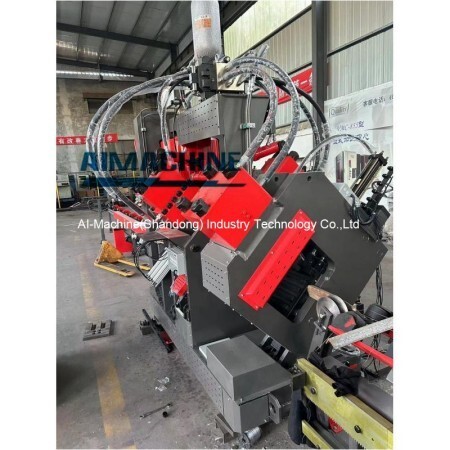

CNC Angle Cutting Machine for Cutting Punching Angle iron 140*140*12mm
Main feature of APM1412 cnc angle cutting machine:
1. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
2. Key hydraulic, pneumatic and electric parts all imported.
3. Easy programming and can directly use the program data made by lofting software.
4. Computer with Chinese/English intemarking face, easy operation, and can display the drawing of workpiece.
5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.
6. Only need to input size of work piece, diameter of holes, stadia and quantity of work piece when edit program, or use CAD/CAM direct conversion.

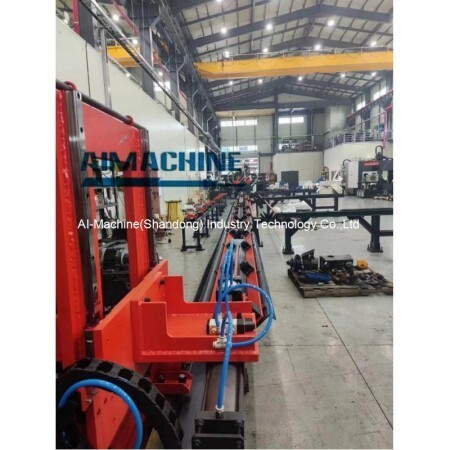

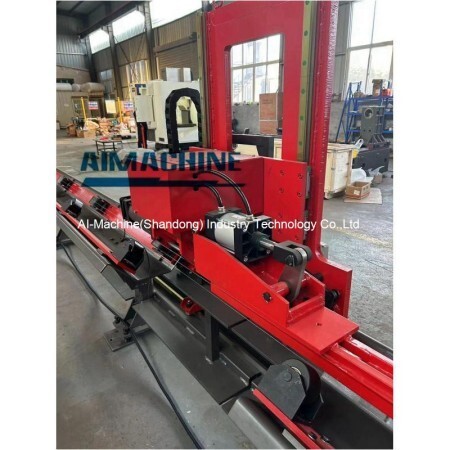

7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
8. Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.
9. With avoided shearing functions, so as to process fixed-length angles.
10. With function of self-diagnosis for failures.
Main parameter of APM1412 cnc angle cutting machine：
| Angle size | L40×40×3~L140×140×12mm |
| Max. punching | Φ26mm; Φ22×50mm;(Q235) |
| Punching force | 950kn |
| Marking force | 1030kn |
| Shearing force | 1800kn |
| Max. length of blank | 12m |
| Max. length of finished | 10m |
| Qty. of punching head | 3(2 round+1 oval) |
| Qty. of character group | 4 |
| Character size | 14×10×19 mm |
| CNC axes | 3 |
| Shearing mode | Single blade cutting |
| Feeding speed | 80m/min |
| Programming mode | Input by keyboard, floppy disk and USB interface |
| Dimensions | 28×5.5×2.5 |
| Weight | 13000kg |
Contact us to get more details about our cnc angle cutting machine.
