PCD2016 CNC Steel Plate/Flange/Tube sheet Drilling Machine|560 RPM Precision Drilling

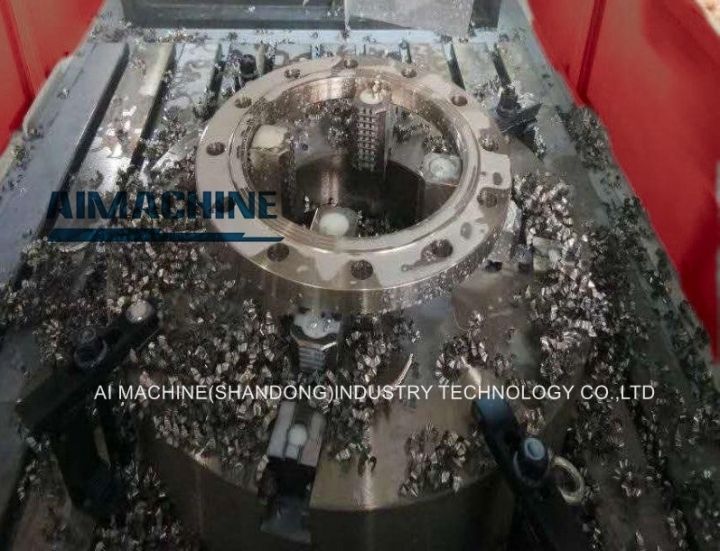

PCD2016 CNC Steel Plate/Flange/Tube sheet Drilling Machine|560 RPM Precision Drilling is used for the drilling holes on tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc.

SEE THE VIDEO OF PCD SERIES CNC TUBE SHEET DRILLING MACHINE

Feature of PCD2016 CNC Tube Sheet Drilling Machine

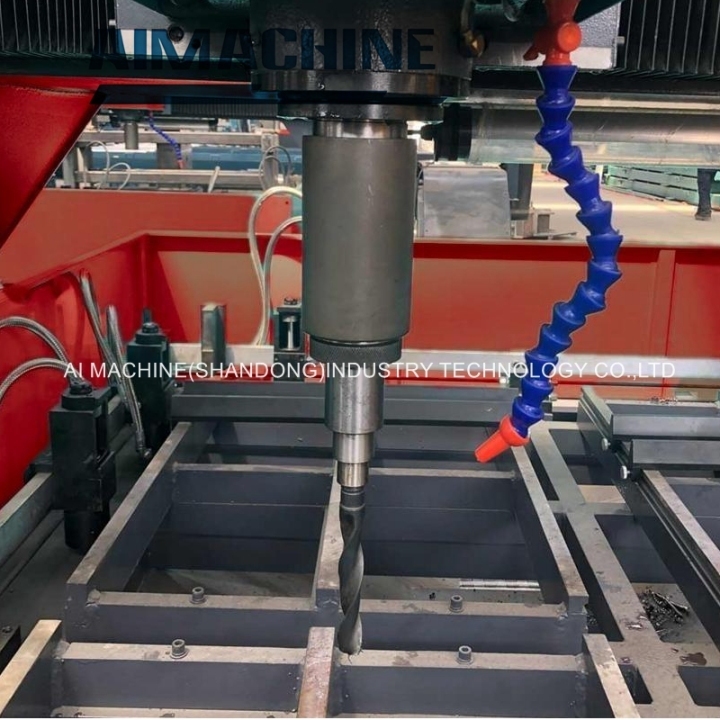

1. High-Speed Precision Drilling‌

• Operates at ‌560 RPM‌ with ±0.02mm positional accuracy for flawless tube sheet drilling.

• Ideal for heat exchangers, boilers, and condensers requiring Φ50mm hole diameters‌.

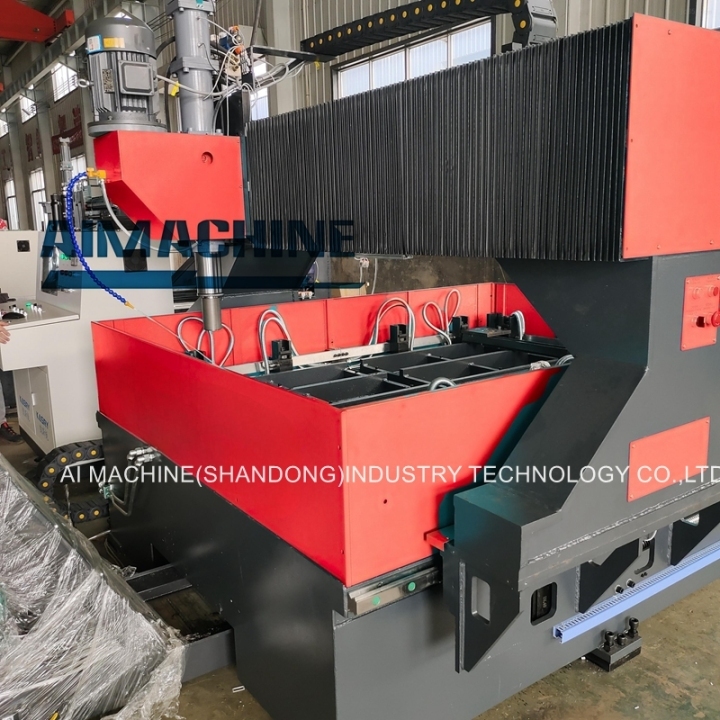

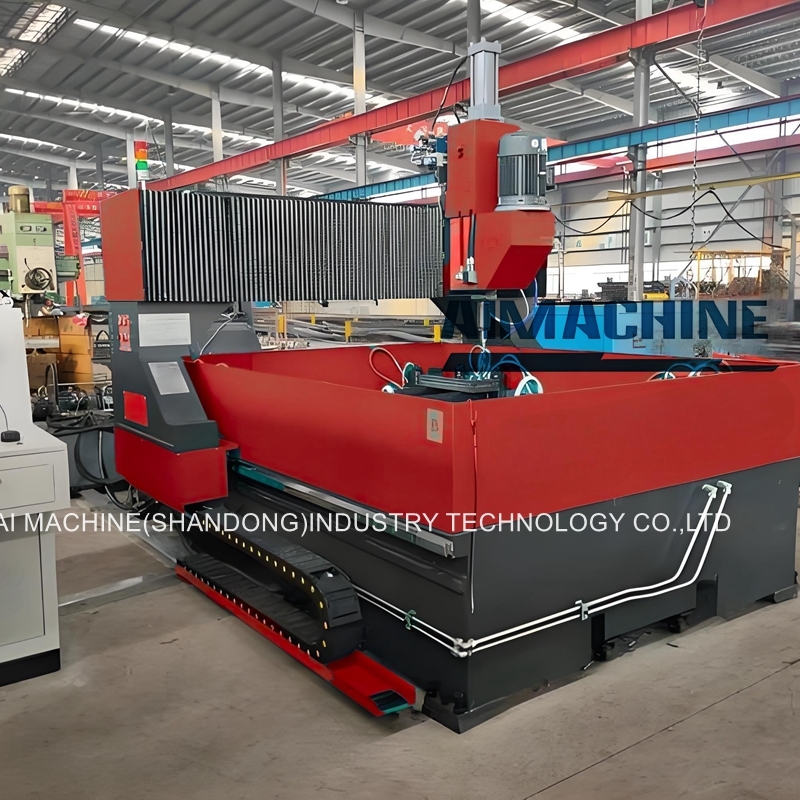

2. Robust Construction & Stability‌

• Heavy-duty cast iron frame ensures ‌98% vibration reduction‌ during high-speed operations.

• Dual-column design with ‌3-axis servo control‌ for drilling depths up to 150mm.

3. Intelligent Automation‌

• Automated tool changer (ATC) with ‌12-station capacity‌ minimizes downtime.

• Built-in coolant filtration and chip removal system for ‌24/7 continuous operation‌.

4. User-Friendly Programming‌

• 10.4" touchscreen interface supports ‌DXF/CAD file import‌ for instant drilling path generation.

• Pre-loaded templates for common tube sheet patterns (triangular, square, rotated layouts).

5. Global Component Integration‌

Core components sourced from Siemens, Mitsubishi, and other famous brand.

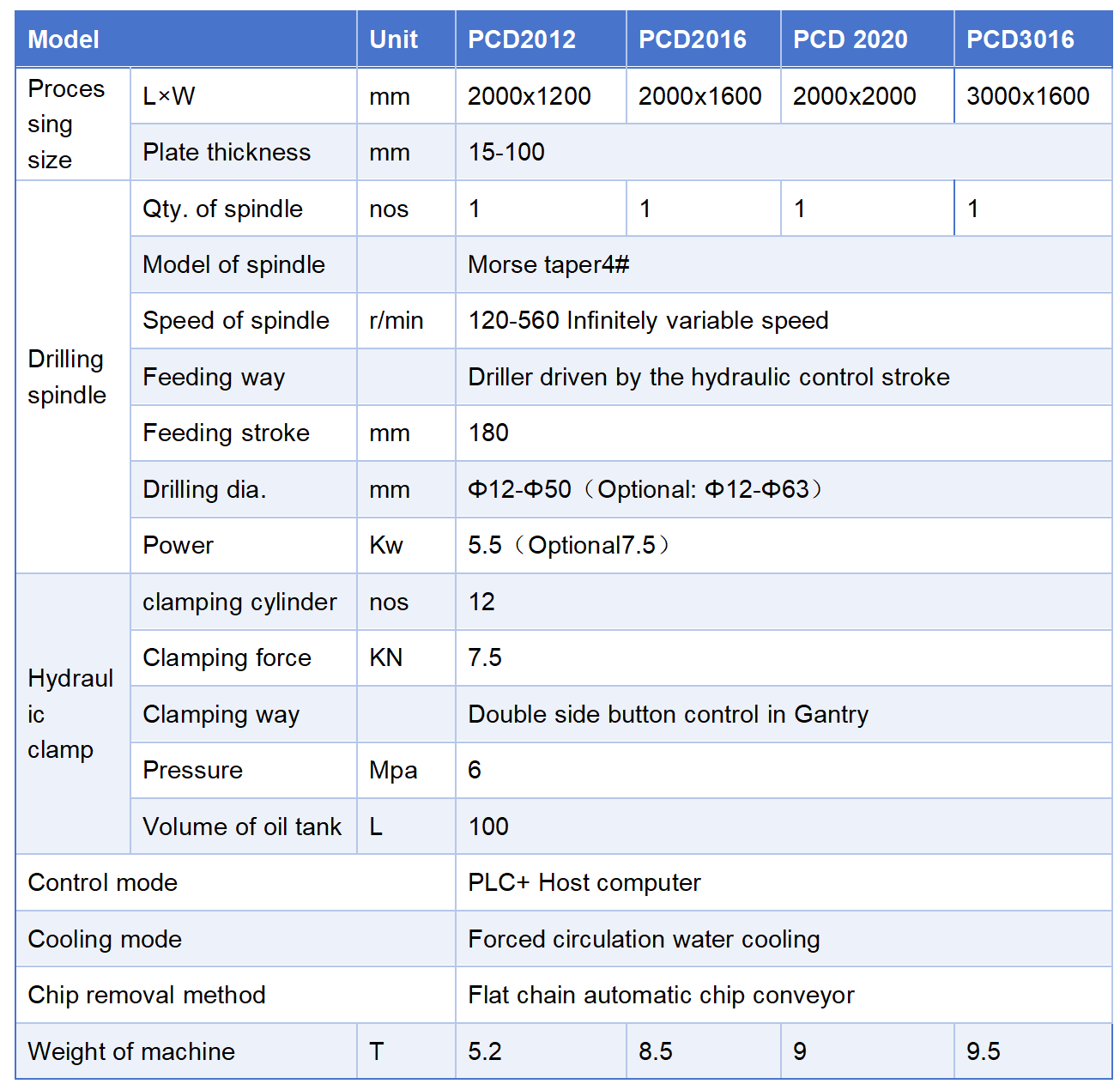

Basic Parameter PCD2016 CNC Tube Sheet Drilling Machine
