AWT5000 Heavy Duty CNC Tube Sheet Drilling Machine for petrochemical, boiler & wind tower applications
stars, based on 0reviews
Application Scope
This industrial-grade CNC tube sheet drilling machine is designed for high-accuracy drilling of:

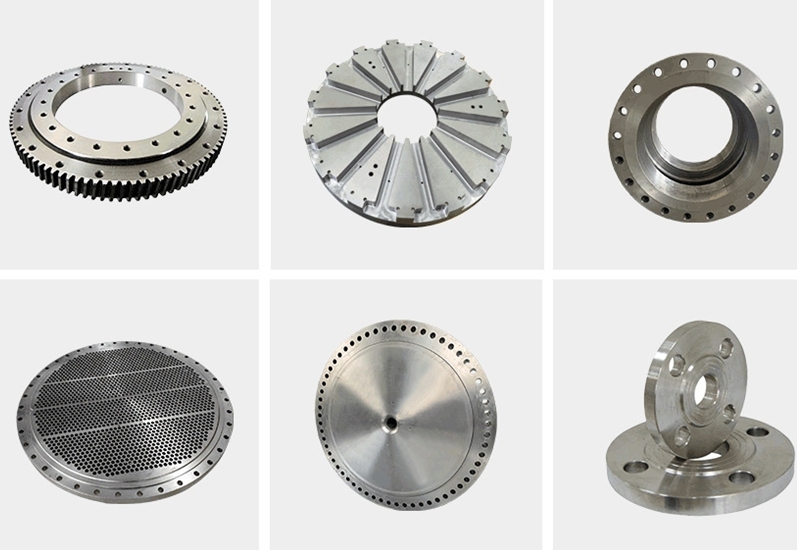

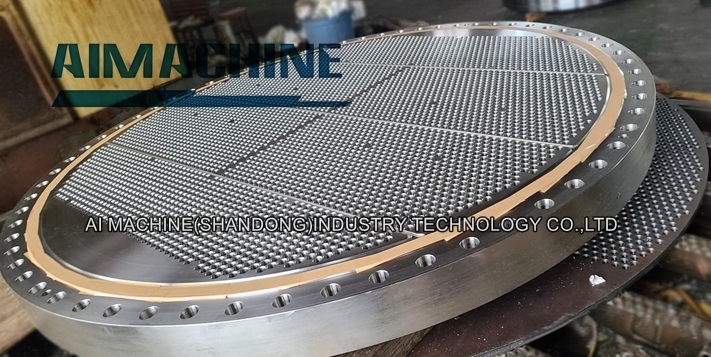

- 1.Critical components: Tube sheets, baffles, flanges, and thick-walled pipes (up to 150mm steel)
- 2.Industries: Petrochemical plants, boiler manufacturing, wind turbine flange production, and refrigeration systems
- 3.Structural projects: Steel connectors for bridges, building frameworks, and transmission towers
1.Key Structural Features
(1)Robust Dual-Frame Design
- Movable gantry + fixed worktable: Space-efficient layout reduces footprint by 30% vs. traditional models.
- Independent bed & workbench: Enhanced vibration dampening for stable high-speed drilling (up to 3,000 RPM).
(2)Precision Motion System
- Roller linear guides: X/Y-axis rigidity increased by 45%, ensuring ±0.02mm repeatability for tube sheet patterns.
- Servo-driven spindle: Stepless speed control (50-6,000 RPM) with heavy-duty torque for alloy drilling.
(3)BT40 Spindle with Auto-Tooling
- Taiwanese high-precision spindle: BT50 taper with internal coolant channels for extended tool life.
- Hydraulic tool release: Quick-change system reduces downtime by 70% Compare spindle specs.
(4)Smart Production Support
Centralized lubrication | Chip conveyor system | PLC-controlled safety interlocks

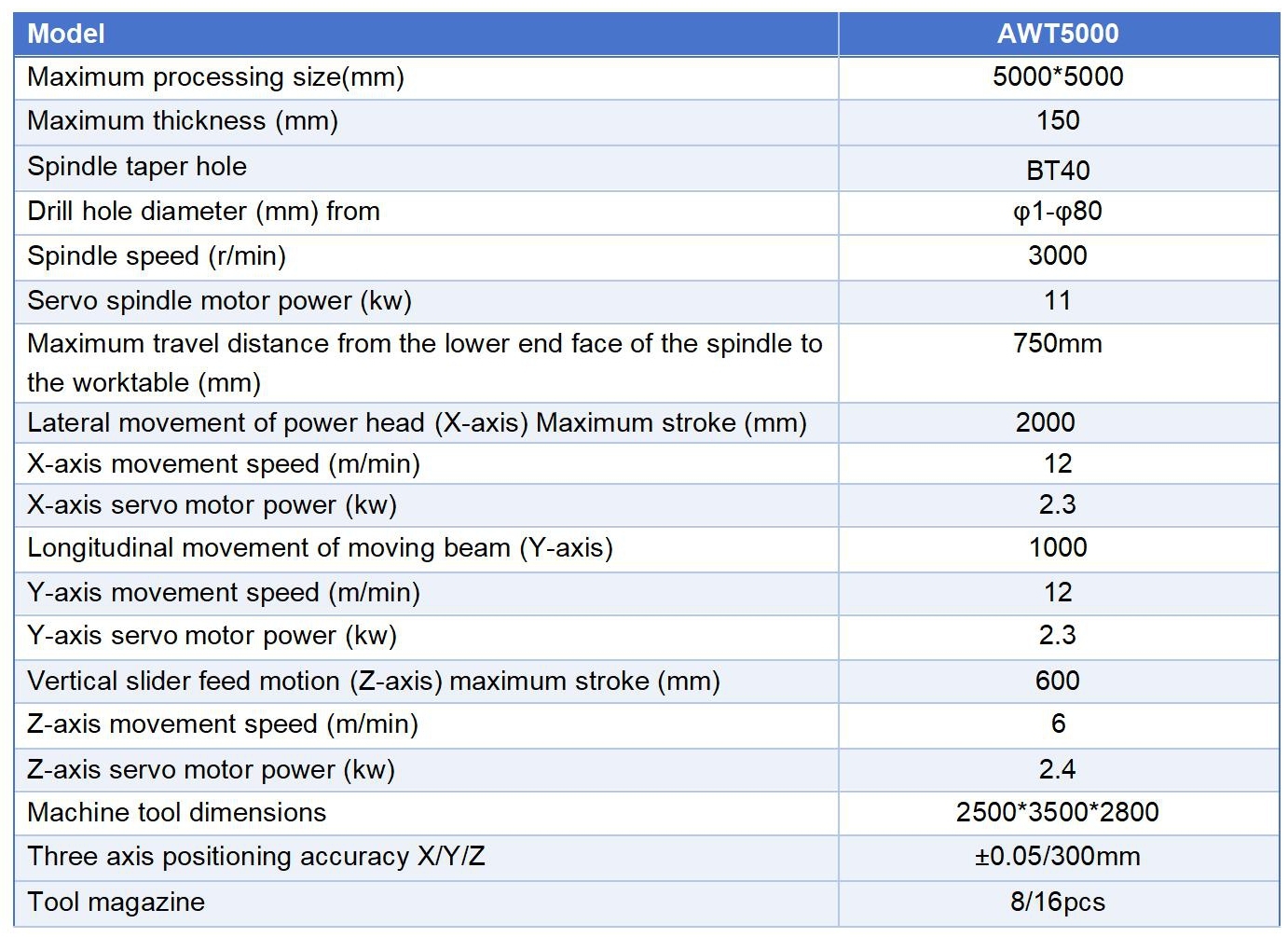

2.Technology parameter of AWT5000 CNC tube sheet drilling machine
