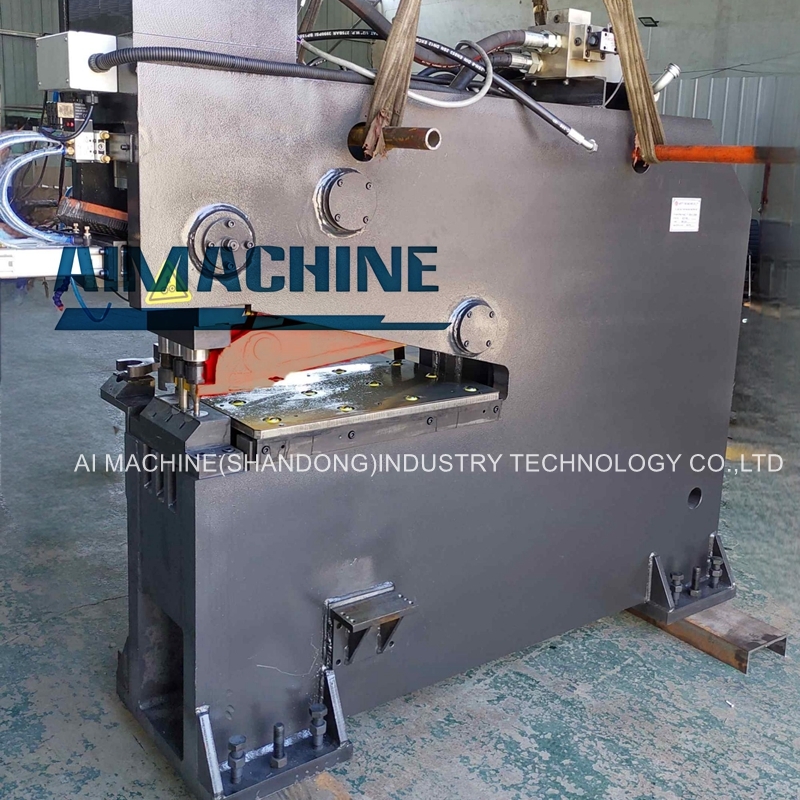

Hydraulic CNC Steel Plate Punching Machine | 1400kN force for 5–30mm steel plates.

• ‌CNC steel plate punching machine‌ redefines efficiency in structural steel processing. Designed for power transmission towers, industrial frameworks, and prefabricated construction, this industrial powerhouse combines rugged durability with advanced automation.

Key Features & Innovations‌

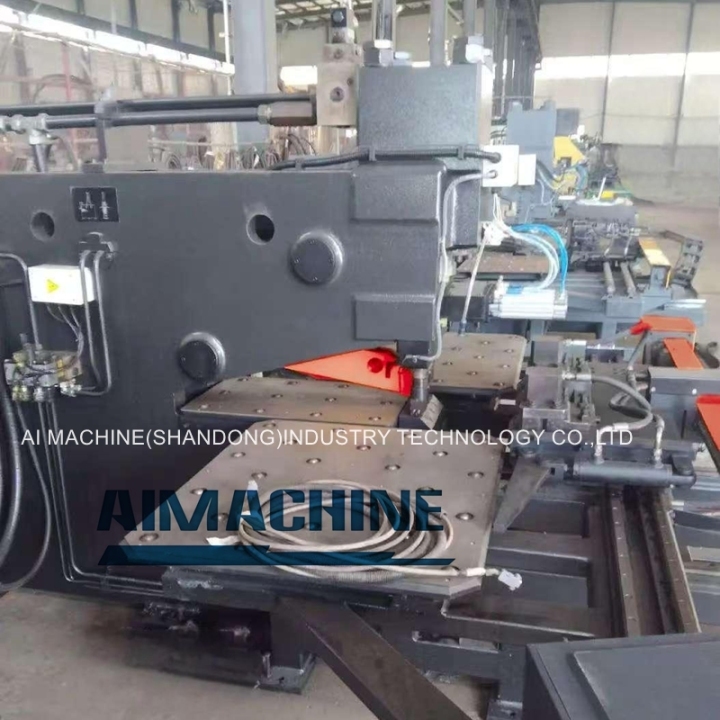

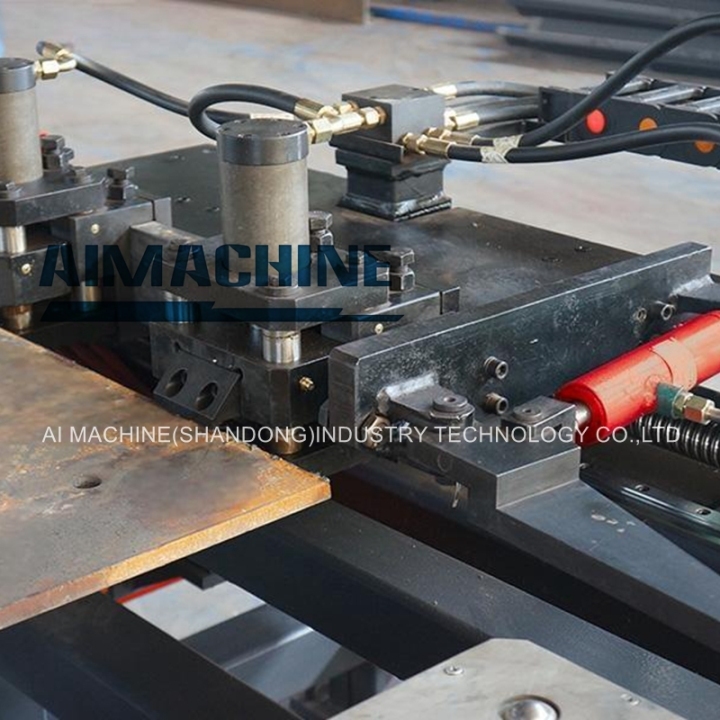

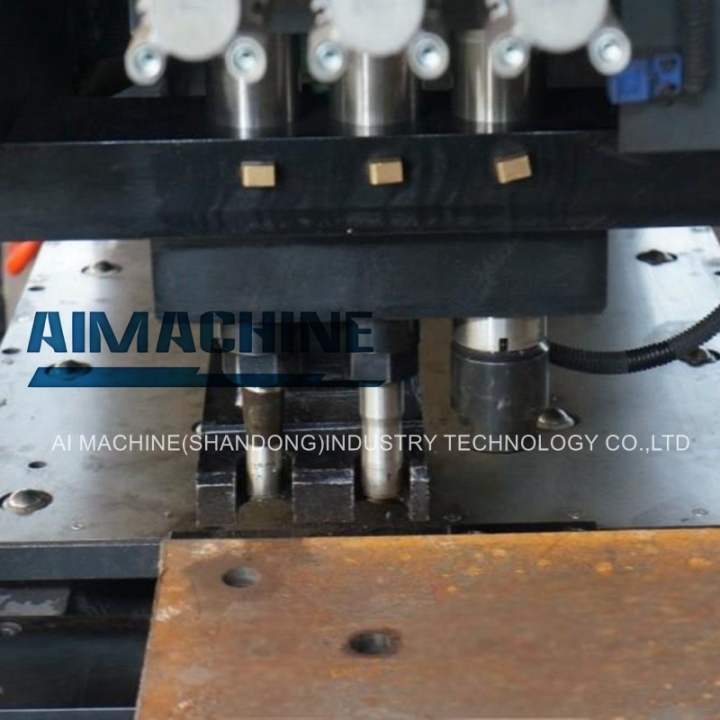

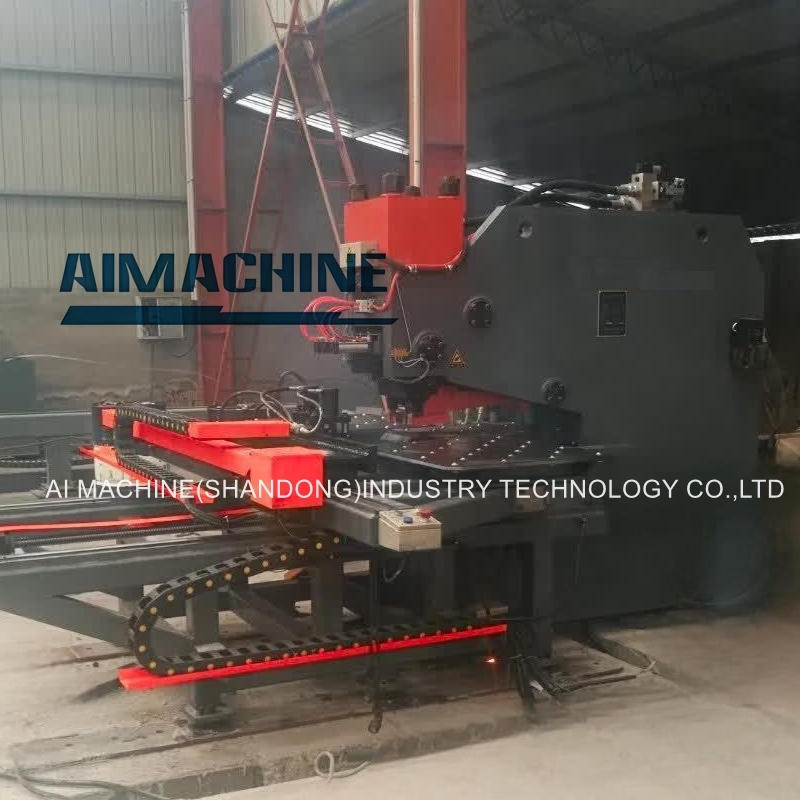

1.Optimized for precision and durability, this ‌CNC steel plate punching machine‌ features a rugged C-frame welded steel construction, delivering 1400kN punching force for 5–30mm thick steel plates. Its 3-in-1 modular tooling system enables seamless integration of punching, marking, and stamping operations, with automatic die switching for multi-tasking workflows.

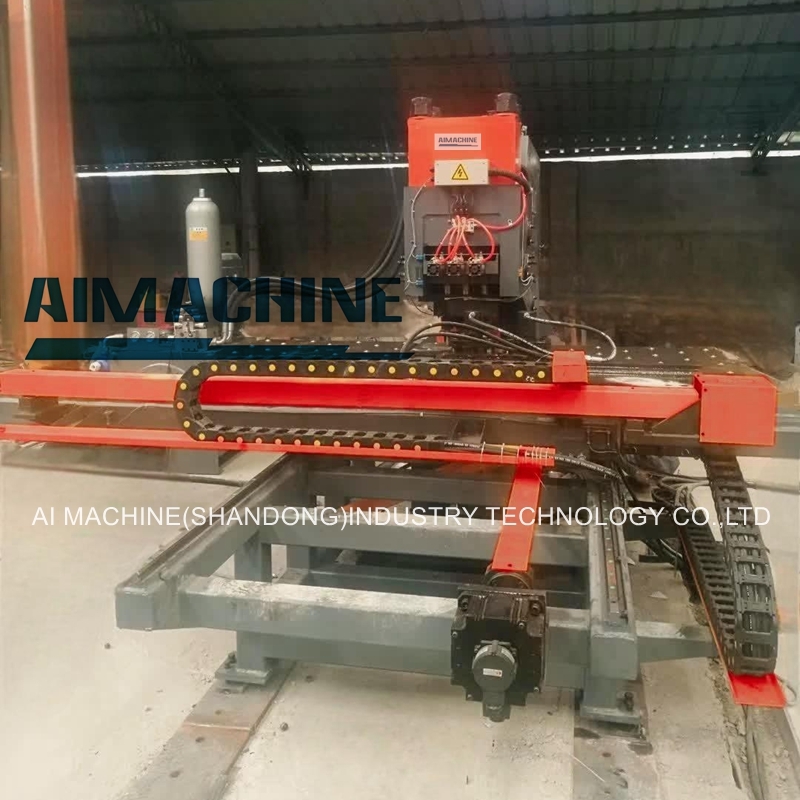

2.Powered by a ‌CNC servo-controlled system‌ (X/Y axes), it achieves ±0.1mm positional accuracy for complex steel plate fabrication. CAD/CAM compatibility cuts programming time by 60%, allowing direct import of lofting software designs.

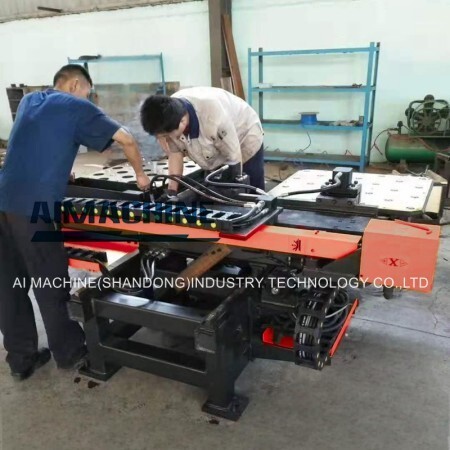

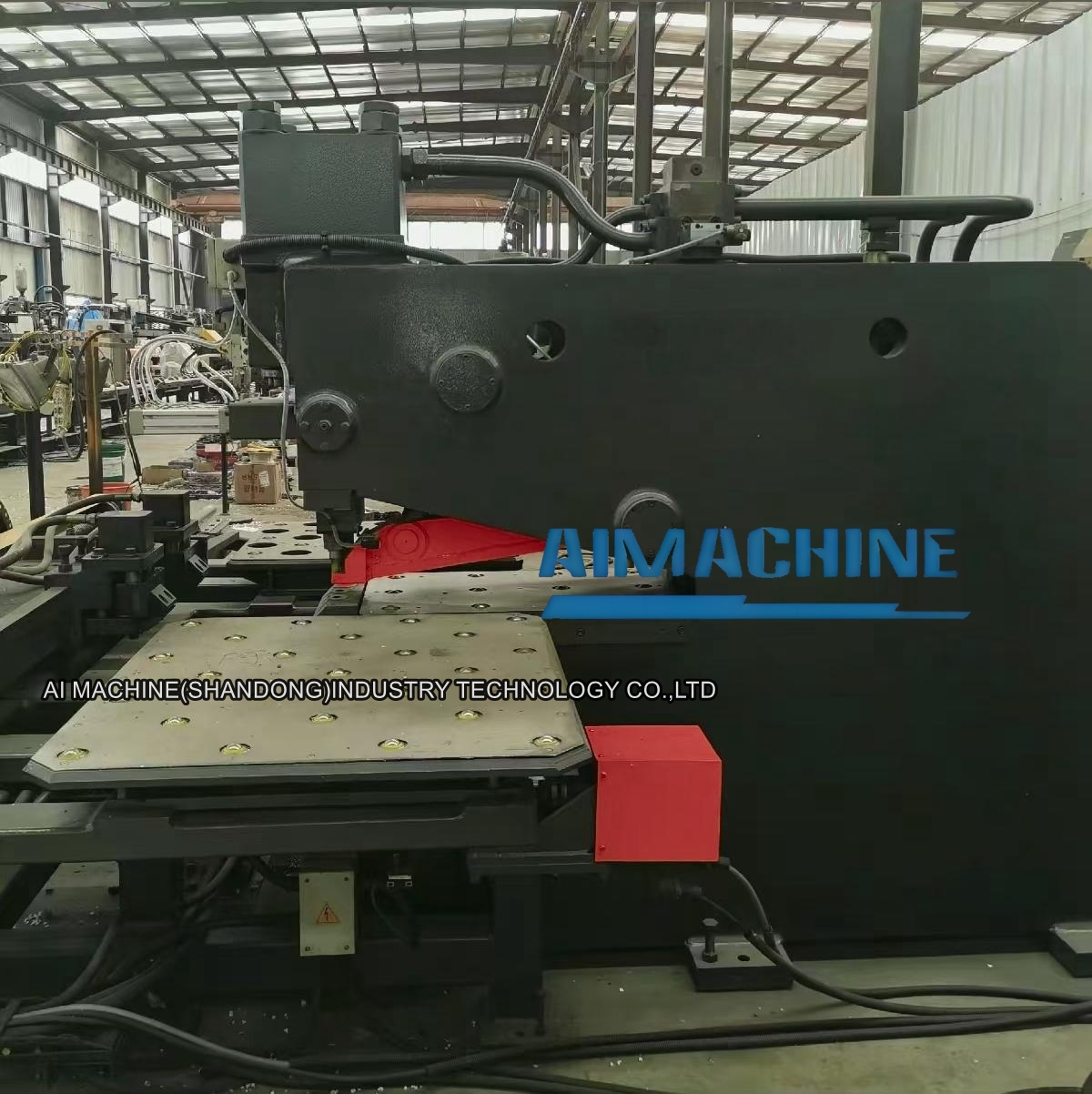

3.The rolling-ball worktable supports irregular plates up to 2500×600mm, paired with zero-point alignment for rapid setup. Built for harsh environments, its self-diagnostic system monitors hydraulic pressure and servo performance, ensuring 24/7 reliability. Ideal for structural steel, shipbuilding, and heavy machinery industries.

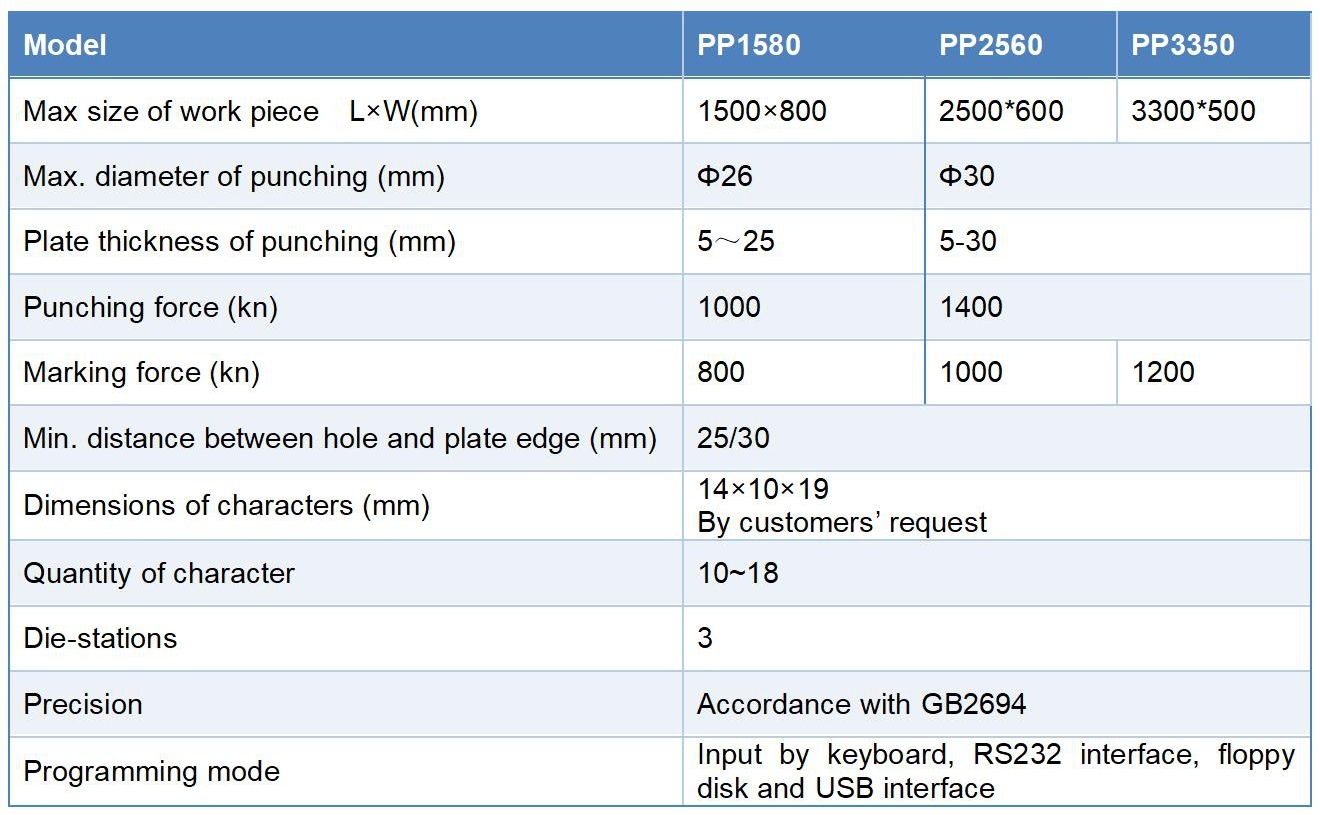

4.Technical Specifications‌

Industry Applications‌

Our ‌CNC steel plate punching machine‌ excels in:

•   Power Infrastructure‌: Rapid hole patterning for transmission tower joint plates

•   Bridge Construction‌: Precision marking/punching of steel girder connectors
•   Heavy Machinery‌: Batch processing of excavator arm reinforcement plates

Why Choose our machine?‌

•   30% faster cycle times‌ vs. conventional hydraulic punches through servo-driven automation
•   Multi-language interface‌ simplifies operation for global engineering teams

•   ISO-certified manufacturing‌ with Bosch Rexroth hydraulics and Siemens CNC systems
•


Upgrade your workshop with the ‌CNC steel plate punching machine‌ trusted by leading steel fabricators.
