China Factory-Gantry Type CNC Drilling Machine/Angle Lines

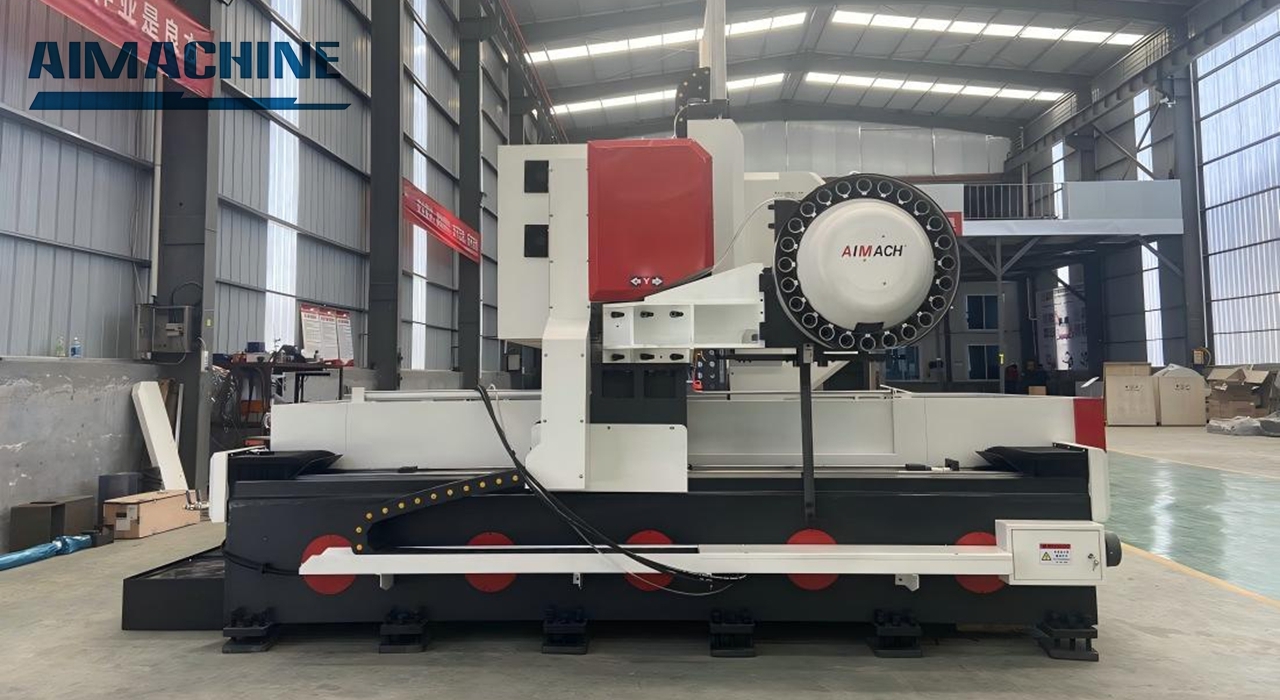

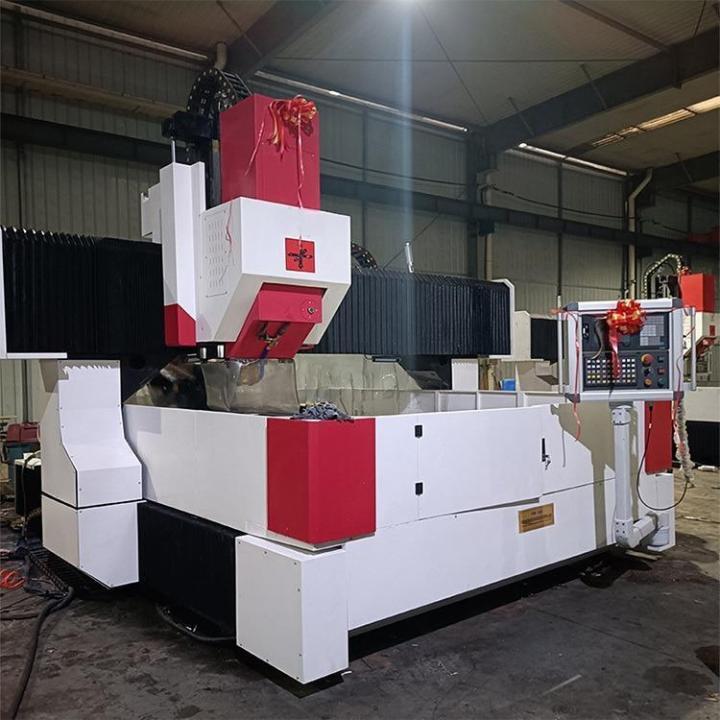

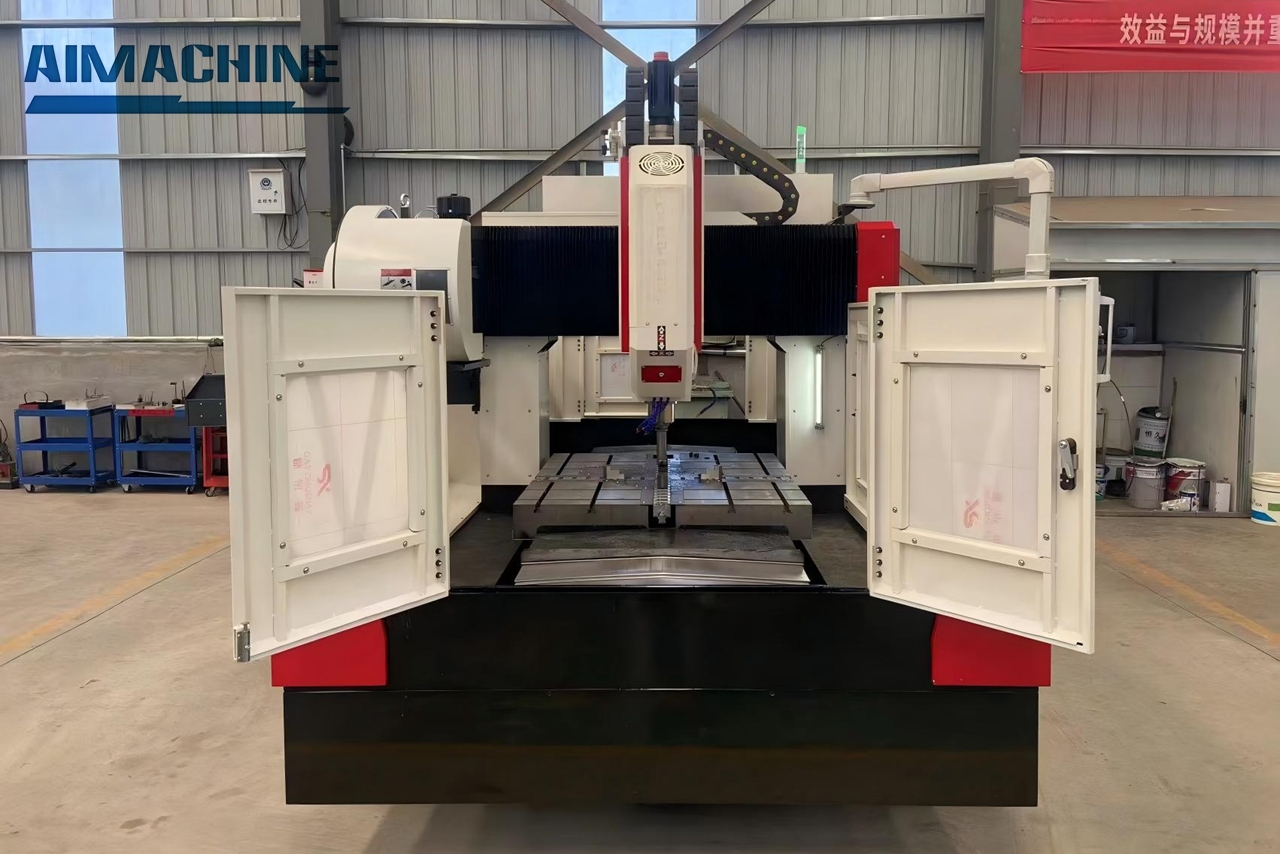

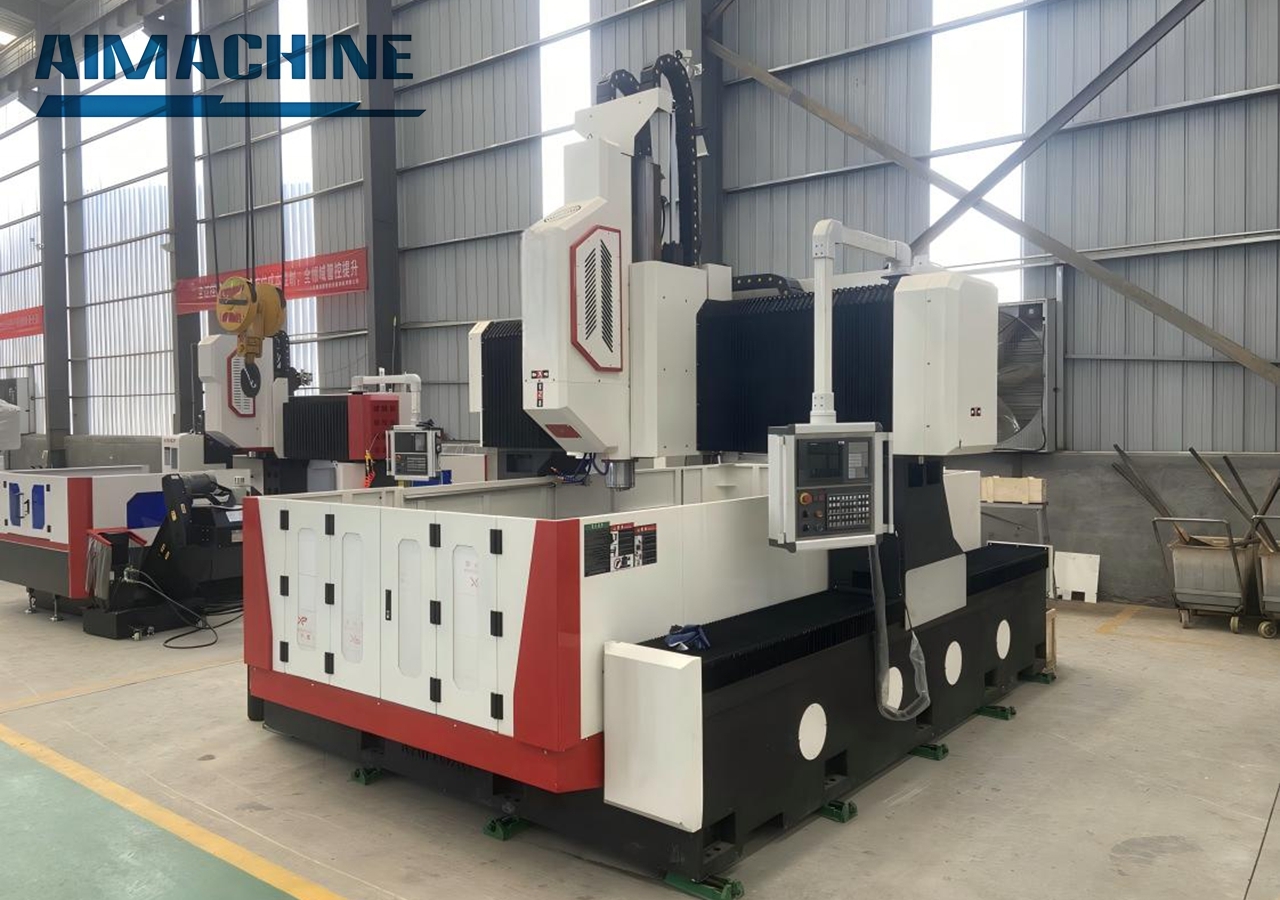

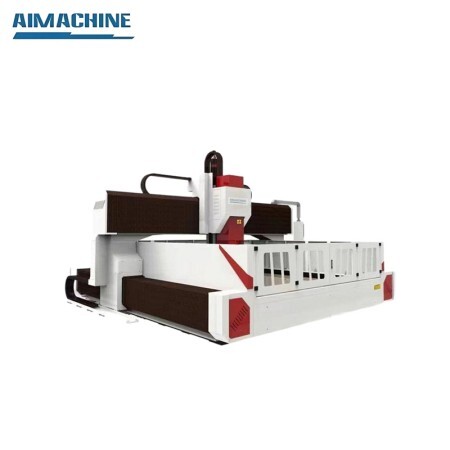

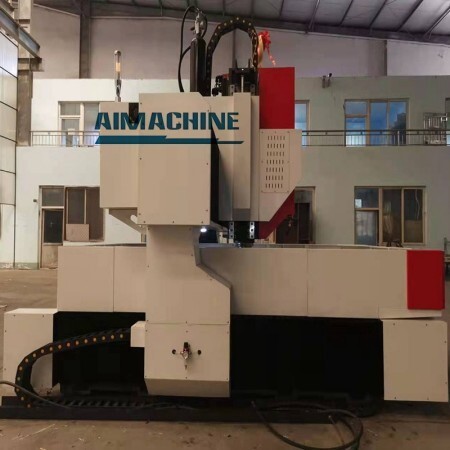

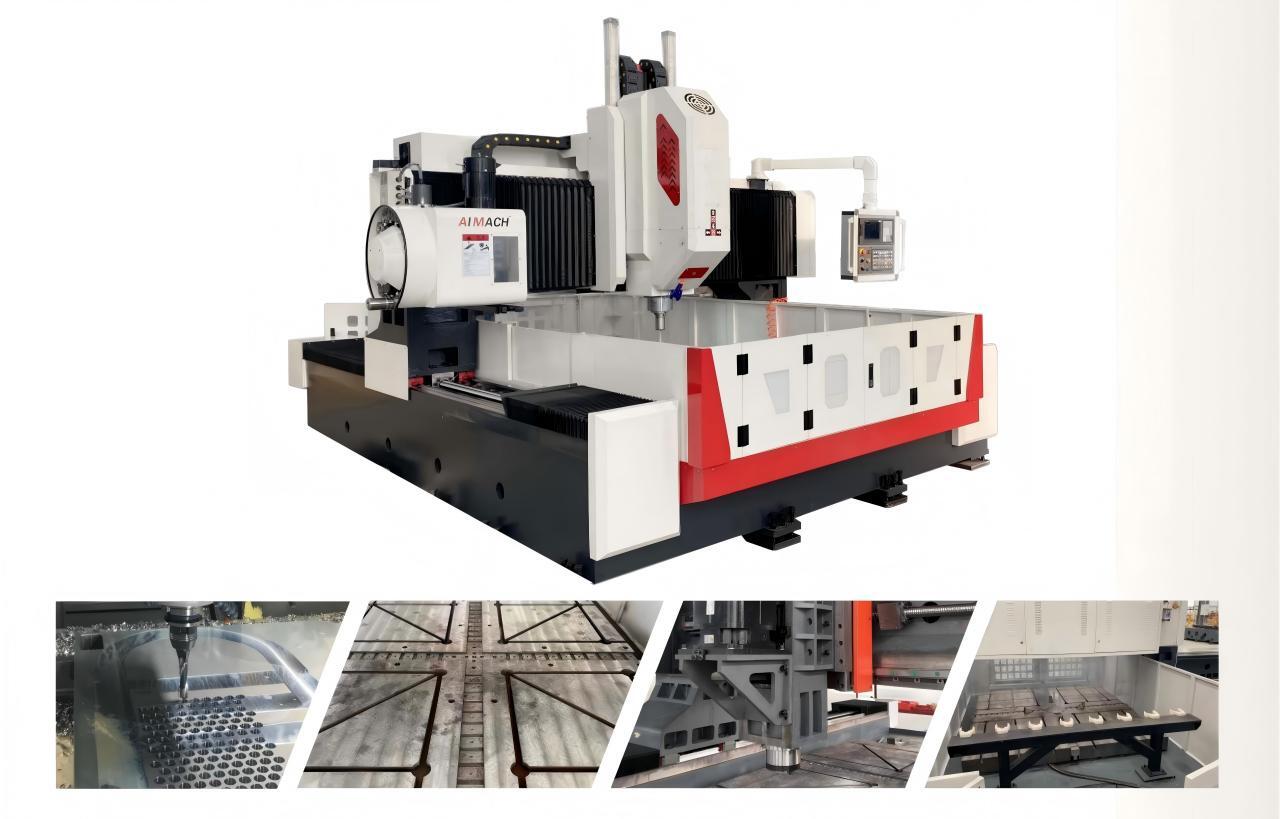

AWT1616 Gantry CNC Steel Plate Drilling Machine for Industrial Metal Fabrication
Machine Features
(1) Gantry Structure Design
1. Moving-beam double drive system for simultaneous multi-axis operations
2. Processes steel plates up to 1600*1600*150mm
3. HT250 cast iron framework ensures vibration-free drilling
(2) 3-Axis CNC Precision of our plate drilling machine
1.X/Y/Z axes with linear guides & ball screws (±0.02mm positioning)
2.18m/min rapid traverse speed for high-volume plate processing
3.BT50 spindle chuck compatible with Ø12-50mm drill bits
(3) Smart Machining Capabilities
1.Automatic tool changer reduces setup time by 70%
2.Water-cooled spindle maintains 24,000N drilling torque
3.KND control system with USB/G-code programming interface
Basic Parameter
| Model | AWT1616 |
| Maximum processing size(mm) | 1600*1600 |
| Maximum thickness (mm) | 150 |
| Spindle taper hole | BT50 |
| Drill hole diameter (mm) | φ80 |
| Tapping diameter (mm) | M3-M16 |
| Spindle speed (r/min) | 3000 |
| Servo spindle motor power (kw) | 18.5 |
| X-axis Maximum stroke (mm) | 1600 |
| Y-axis Maximum stroke (mm) | 1600 |
| Z-axis Maximum stroke (mm) | 500 |
| Positioning accuracy X/Y/Z | ±0.05 |
- Processing size:
- 1600*1600mm
- Maximum thickness:
- 150mm
- Spindle :
- BT50
- Hole diameter:
- φ80
- Tapping diameter:
- M16
- Spindle speed:
- 3000rpm
- Motor power:
- 18.5kw
- Positioning accuracy:
- ±0.05mm
