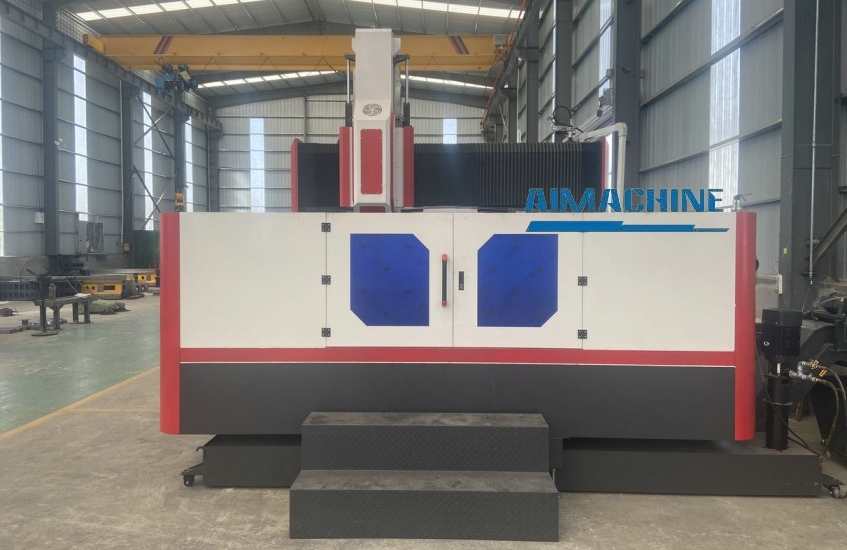

AWT2525 Gantry Type CNC Plate Drilling Machine With Tapping Milling Function
Product Description
PHD2020 is a heavy-duty CNC steel plate drilling machine designed for high-efficiency processing of steel structure, flanges, tube sheets, pressure vessels and large metal workpieces.
With 2000×2000mm working table, high-rigidity gantry structure, powerful spindle and stable CNC control system, this machine provides high precision, strong drilling capacity and long-term stability for heavy-duty industrial production.
This model belongs to our Heavy Duty CNC Drilling Machine series. For more technical details, you can check our professional guide: Application of CNC Drilling Machine.
Key Advantages
- Heavy-duty gantry structure for large steel plate processing
- 2000×2000mm large working table, strong stability
- High-power spindle for thick steel plate drilling
- High positioning accuracy & high processing efficiency
- Suitable for steel structure, flange, tube sheet industry
- Long service life & low maintenance cost
Technical Parameters
| Item | Specification |
|---|---|
| Model | PHD2020 |
| Processing Size | 2000×2000mm |
| Drilling Diameter | Ø40–Ø120mm (Customizable) |
| Spindle Type | Heavy Duty High-power Spindle |
| Positioning Accuracy | ±0.03mm |
| Control System | CNC 3-axis Automatic Control |
View More Related Models

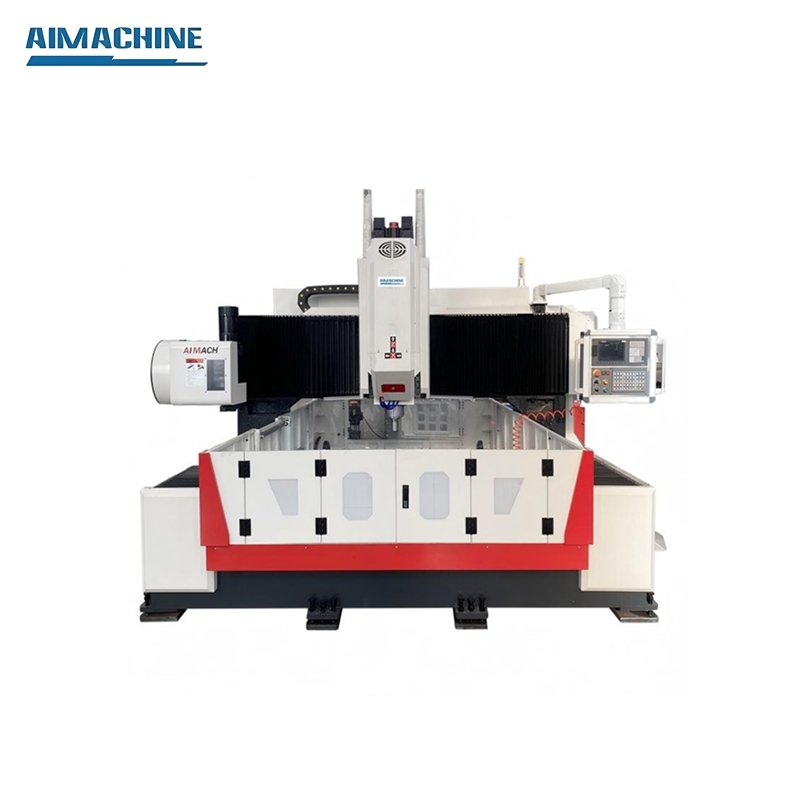

Heavy Duty Drilling Machine- Processing size:
- 2500*2500mm
- Drilling diameter:
- Ø80mm
- Tapping diameter:
- M5-M30mm
- Spindle model:
- BT50-190
- Spindle Speed:
- 3000rpm
- Spindle motor:
- 22kw(servo)
