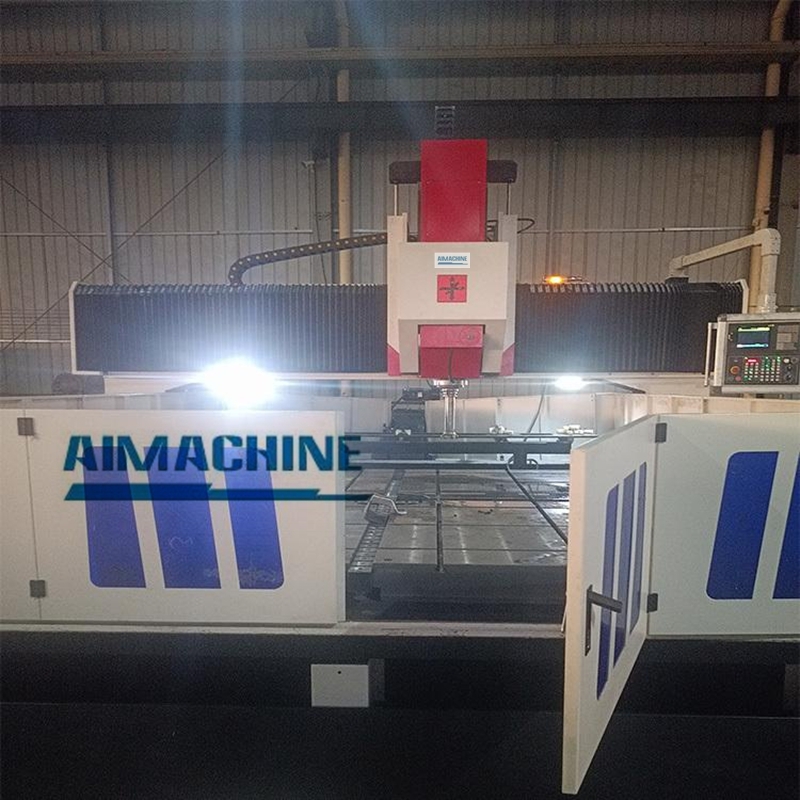

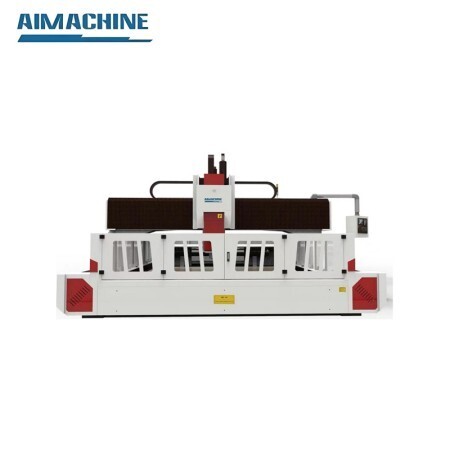

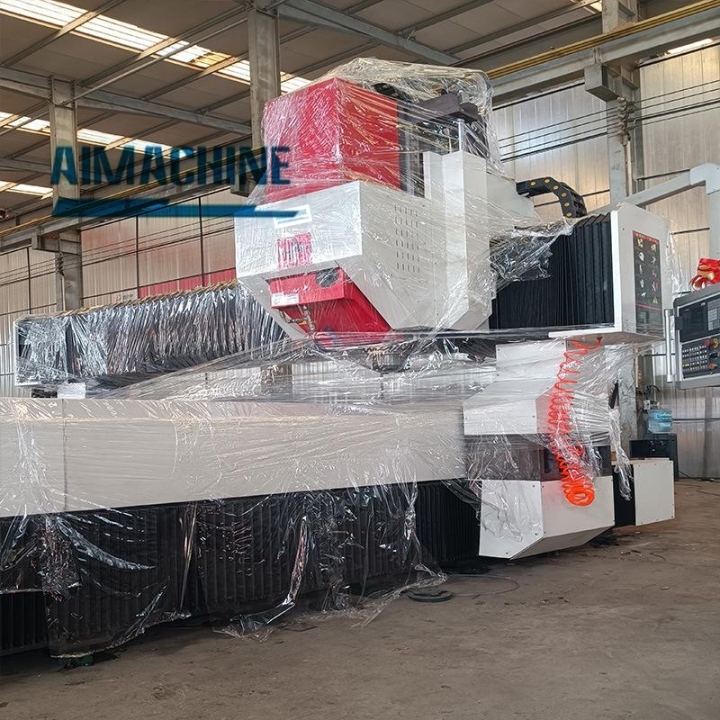

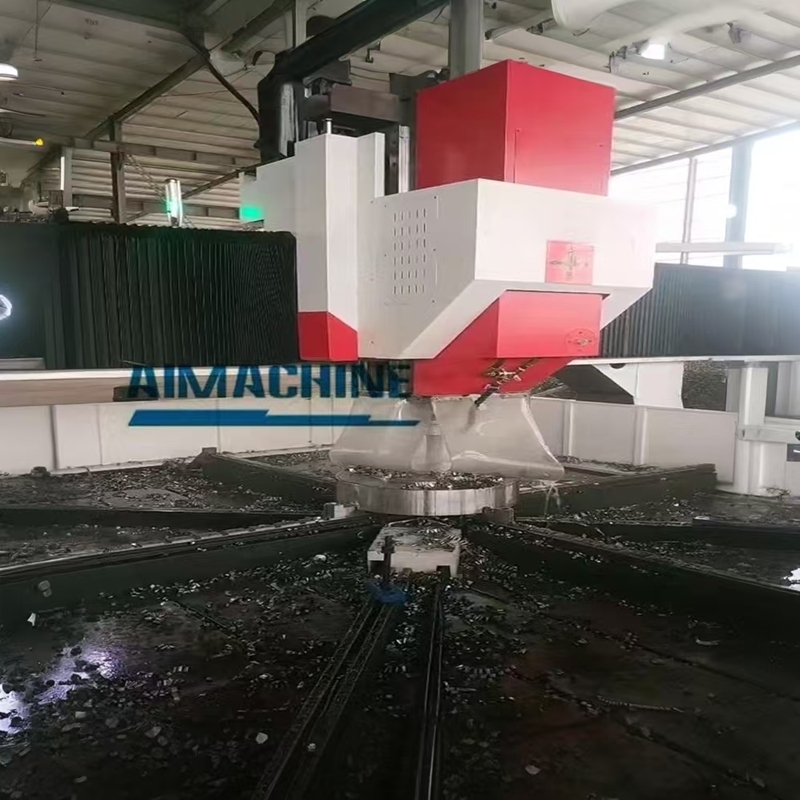

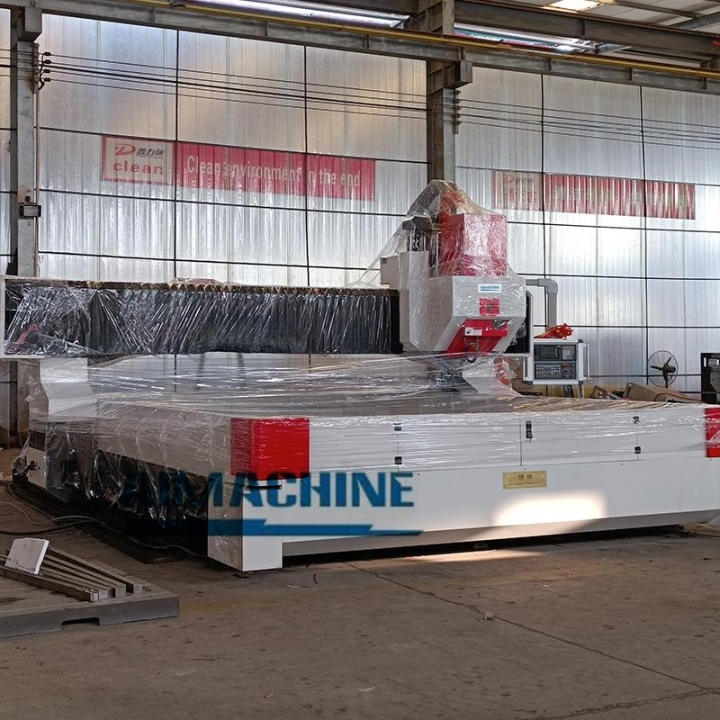

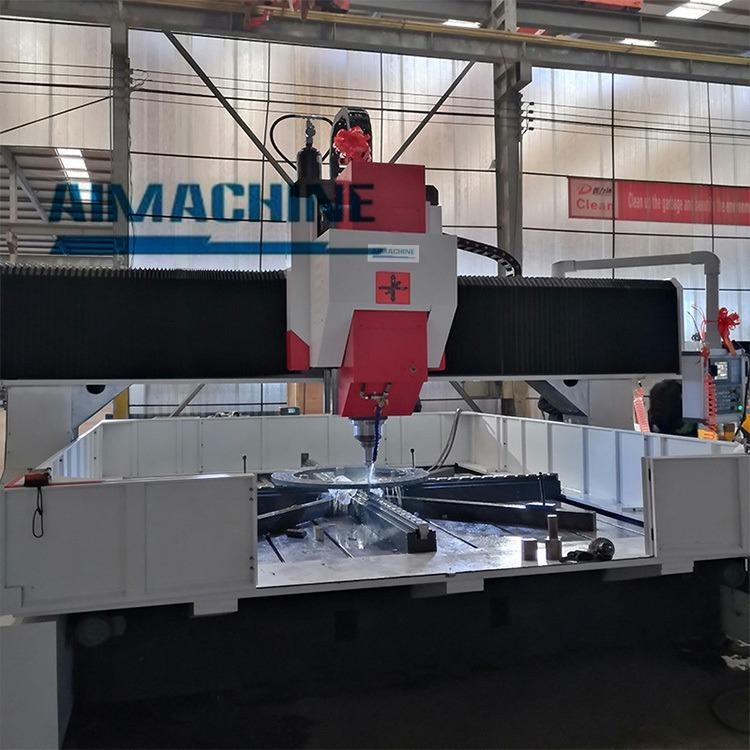

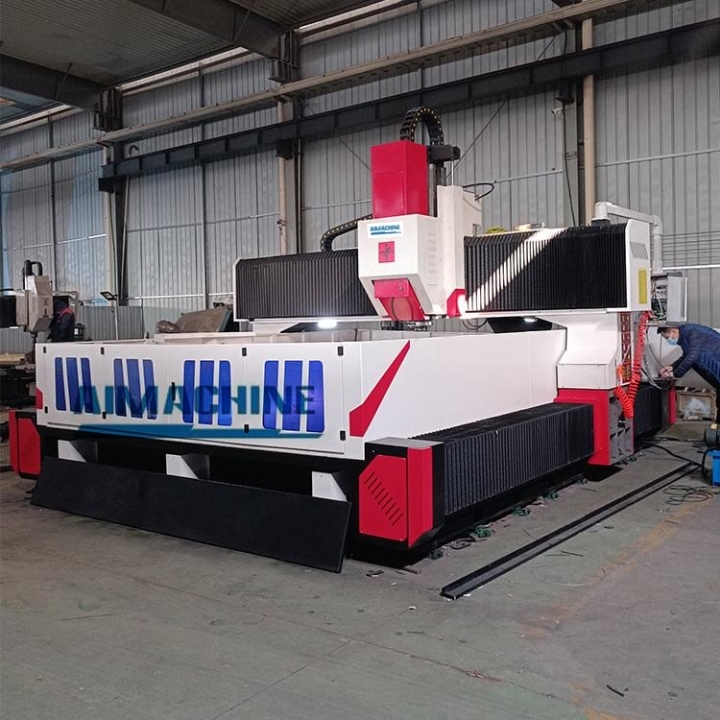

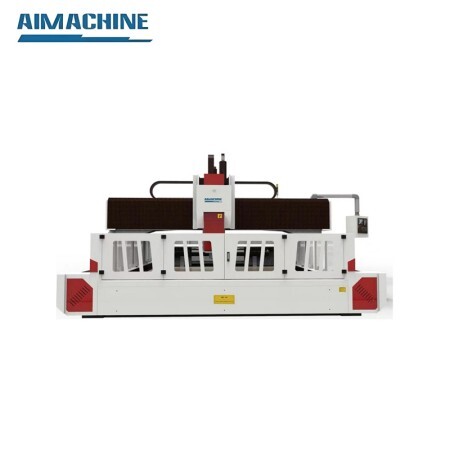

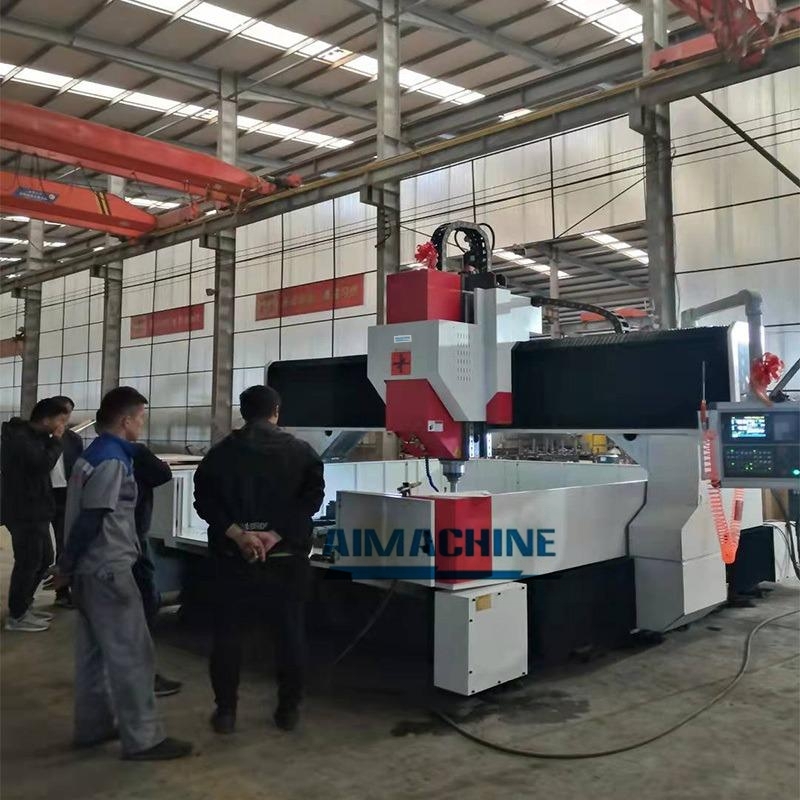

AWT3030 Heavy Duty 3000r/min CNC Gantry Drilling Machine For Tube Sheet/Flange/Steel Plates
Product Overview

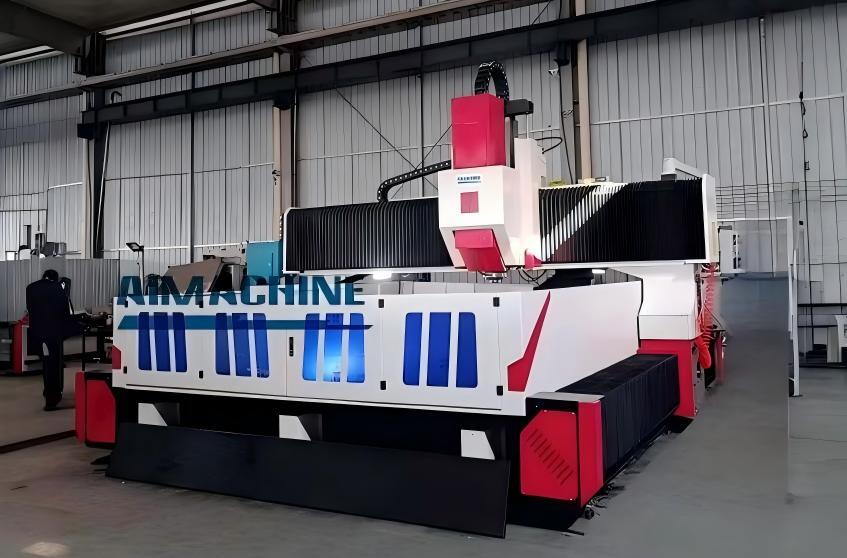

AWT3030 is a heavy-duty CNC gantry drilling machine designed for high-precision drilling, tapping, milling and chamfering on steel plates, flanges, tube sheets and steel structure workpieces.
With 3000×3000mm large working table, high-rigidity gantry structure and powerful BT50 spindle, this machine provides stable performance, high efficiency and long service life for heavy-duty industrial processing.
It is an ideal equipment for metal fabrication, pressure vessel, steel structure and flange manufacturing. Learn more: Large Model CNC Gantry Drilling Machine. Read our professional guide: Application of CNC Drilling Machine.
Key Features
- Heavy-duty gantry structure with 3000×3000mm working table
- High-power BT50 spindle, max drilling diameter up to φ100mm
- High positioning accuracy ±0.03mm for high-quality processing
- 3-axis CNC system with automatic lubrication and cooling system
- Supports drilling, tapping, milling, chamfering multi-process processing
- Suitable for large steel plates, flanges, tube sheets and heavy workpieces
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC gantry movable drilling machine |
| Worktable size | 3050x3050 mm |
| Processing size | 3000x3000 mm |
| The maximum drilling diameter | Ø100mm (Q235) |
| The maximum drilling depth | 300mm |
| The spindle Model | BT50 |
| Power of spindle motor | 30kw(servo) |
| Spindle Speed | 3000rpm |
| Position accuracy | ±0.03mm (within 300mm, ±0.05mm) |
| Re-positioning accuracy | ±0.03mm (within 300mm, ±0.05mm) |
Main Applications
AWT3030 heavy-duty CNC gantry drilling machine is widely used in steel structure, flange, tube sheet, pressure vessel, wind power and other metal processing industries, providing reliable and efficient processing solutions for global customers.
Frequently Asked Questions
Q: What materials can AWT3030 process?

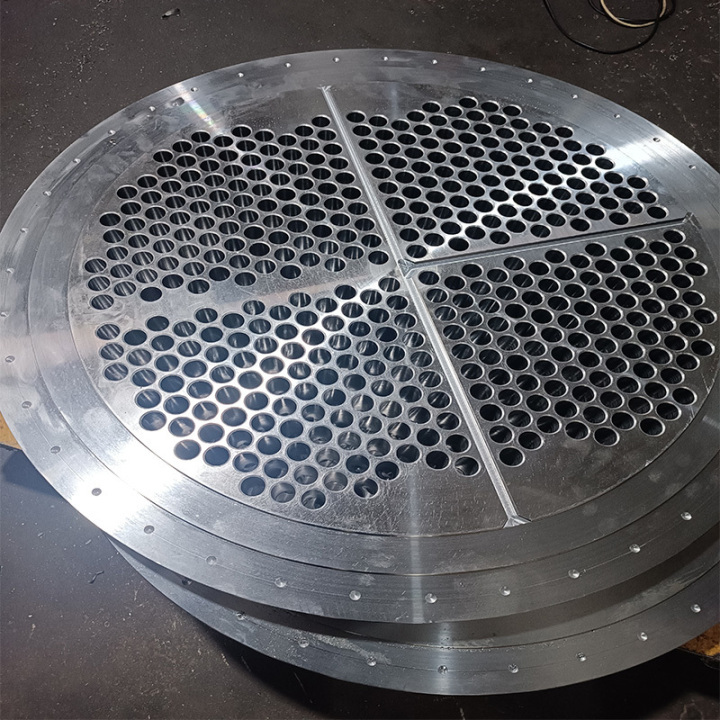

A: It can process steel plates, flanges, tube sheets, steel structures, pressure vessels and other metal workpieces.
Q: What is the maximum drilling diameter?
A: Max drilling diameter is up to φ100mm with high-power BT50 spindle.
Q: Does it support tapping and milling?
A: Yes, it supports drilling, tapping, milling, chamfering and multi-process processing.
Q: How about warranty and service?
A: We provide 12-month warranty, lifelong maintenance and global after-sales support.
