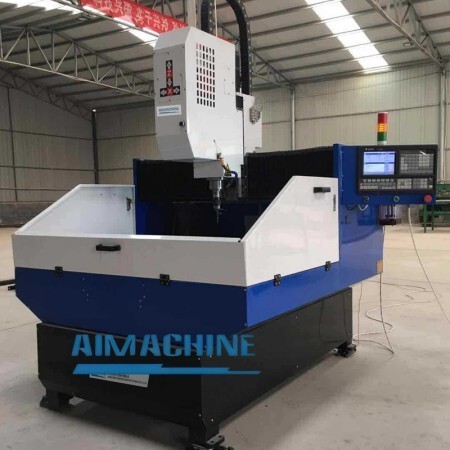

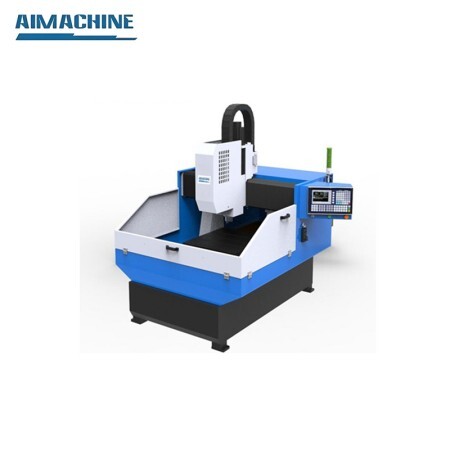

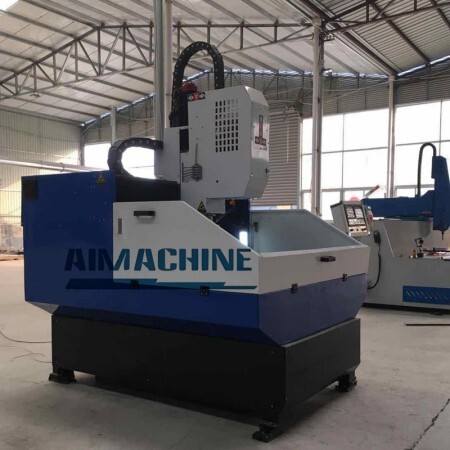

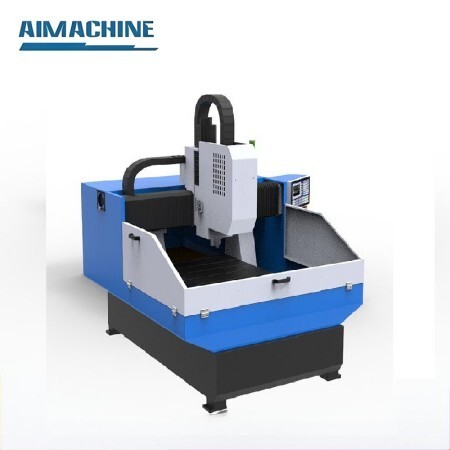

AWT600 CNC Plate Drilling Machine for Steel Plates,Flange,Tube sheet600*600mm size with BT40 Spindle
stars, based on 0reviews
AWT600 CNC Plate Drilling Machine for Steel Plates,Flange,Tube sheet600*600mm size with BT40 Spindle
Gantry Structure Design
- 1. Moving-beam double drive system for simultaneous multi-axis operations
- 2. Processes steel plates up to 600*600mm
- 3. HT250 cast iron framework ensures vibration-free drilling
3-Axis CNC Precision
- 1.X/Y/Z axes with linear guides & ball screws (±0.03mm positioning)
- 2.9m/min rapid traverse speed for high-volume plate processing
- 3.BT40 spindle chuck compatible with Ø36mm drill bits
Smart Machining Capabilities
- 1.Automatic tool changer reduces setup time by 70%
- 2.Water-cooled spindle maintains 24,000N drilling torque
- 3.CNC control system with USB/G-code programming interface
AWT1616 CNC PLATE DRILLING MACHINE PARAMETER
| Model | AWT600 |
| Processing size | 600*600mm |
| Drilling diameter | φ36mm |
| Drilling depth | 150mm |
| Spindle model | BT40 |
| Spindle motor power | 7.5kw |
| Positioning accuracy | +/-0.03 within 300mm |
CONTACT US TO GET MORE DETAILS ABOUT CNC PLATE DRILLING MACHINE
- Processing range:
- 600*600mm
- Drilling depth:
- 150mm
- Drilling diameter:
- 36mm
- Motor power:
- 7.5kw
- Accuracy:
- +/-0.03mm within 300mm
