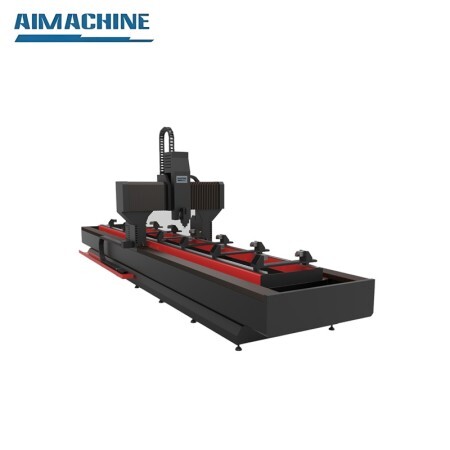

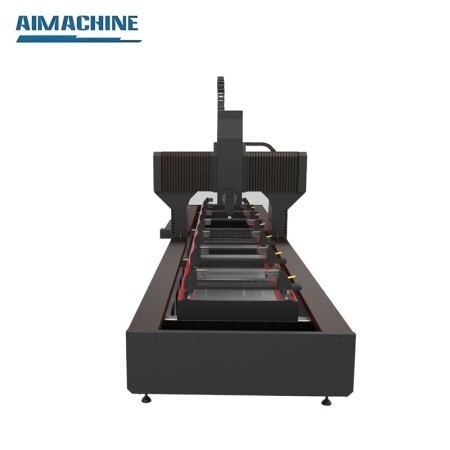

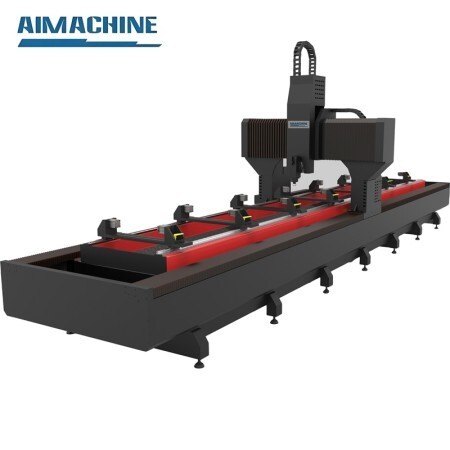

AWT9000 CNC Gantry Drilling Machine For Tube Sheet/Flange/Steel Plates
Product Description
AWT9000 heavy-duty CNC gantry drilling machine is specially developed for large-size workpieces, such as big tube sheets, flanges, steel plates and heavy metal components in pressure vessel and steel structure industries.
It adopts ultra-strong gantry frame, high-power spindle, professional CNC system, efficient cooling and automatic lubrication to achieve high efficiency and precision in heavy-duty processing.
Key Features
- Ultra-strong heavy-duty gantry frame for large workpieces
- High-power spindle for heavy-duty and high-efficiency drilling
- Extra-large processing range for big tube sheets and flanges
- Professional CNC system with high stability and reliability
- Designed for pressure vessel and steel structure industries
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | AWT9000 |
| X axis stroke | 3000-10000mm |
| Y axis stroke | 2000mm |
| Z axis stroke | 800mm |
| Spindle Speed | 10000rpm |
| Spindle taper | BT40 |
| Tool changer type | Disc type |
| Tool changer capacity | 24pcs |
| X axis speed | 40m/min |
| Y axis speed | 40m/min |
| Z axis speed | 20m/min |
| Cooling system | Auto water cooling |
| X-axis accuracy | 0.05mm |
| Y/Z-axis accuracy | 0.03/0.02mm |
| Re-positioning accuracy | 0.01mm |
AWT9000 Heavy Duty CNC Gantry Drilling Machine Inquire Now
