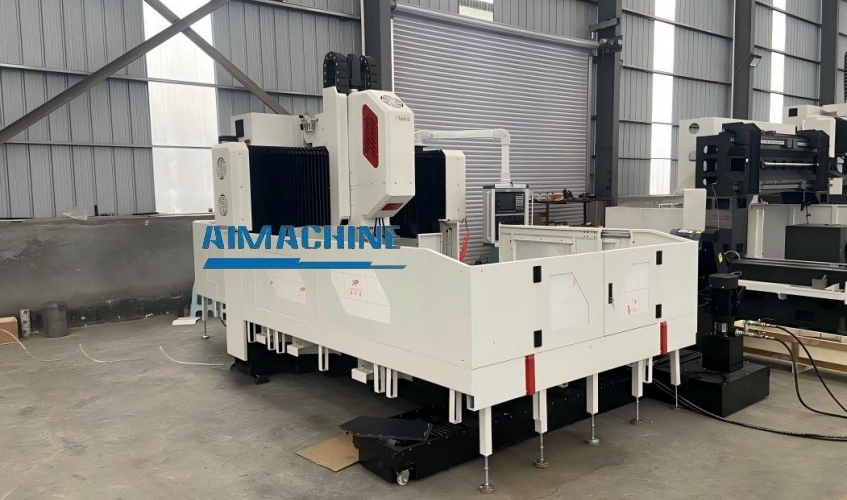

Model 2016 CNC Steel Plate Drilling Machine Production Completed

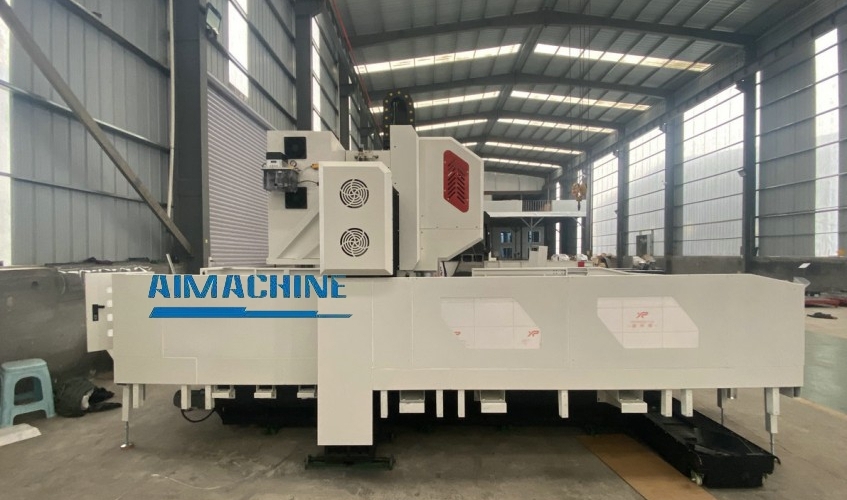

Model 2016 CNC Drilling and Milling Machine Production Completed

The 2016 cnc drilling and milling machine is mainly used for drilling, milling, reaming and chamfering of plate-shaped work-piece, such as heat exchanger tube plates, baffles, flanges, slewing supports, steel structure connection plates and so on.

1. Machine bed is cast iron structure; heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively for guiding the left and right supports of the gantry.

2. Several T type bars are mounted on the worktable of high-quality iron casting, on which the tube sheet can be placed and pressed with a pressing board.

3. The moving of the gantry structure is guided by two pairs of linear guide-way, it is driven by AC servo motor, ball screw to ensure the high positioning accuracy and repeated positioning accuracy.

4. Two linear rolling guide pairs and a sliding power head are installed on the front side of the gantry and a set of precision ball screw pairs are installed above the gantry.

5. Adopt reducer motor and Taiwan precision spindle to drive the ball screw to rotate. High-speed precision spindle taper hole B50 with internal cooling, greatly improve the drilling accuracy and labor productivity.
