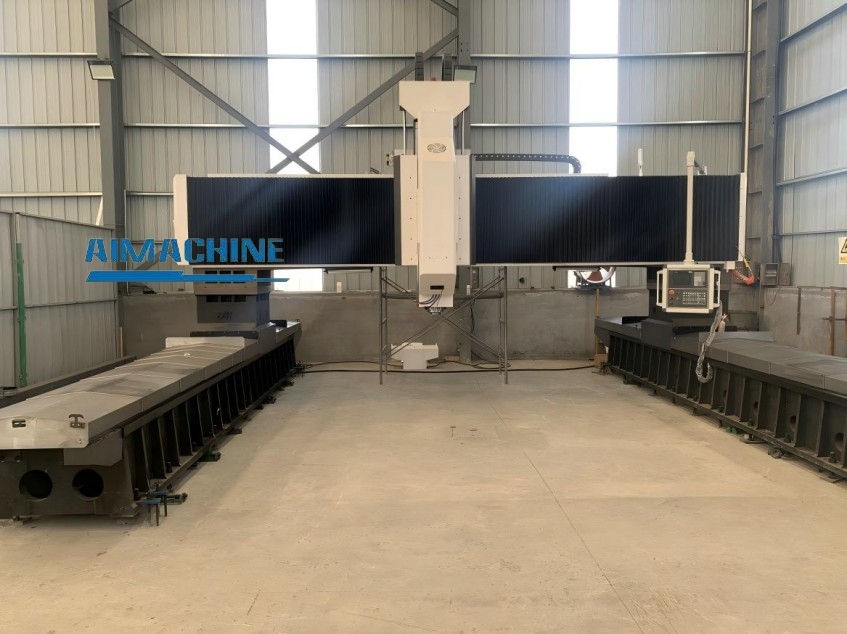

Model 4040 CNC Drilling and Tapping Machine in Production

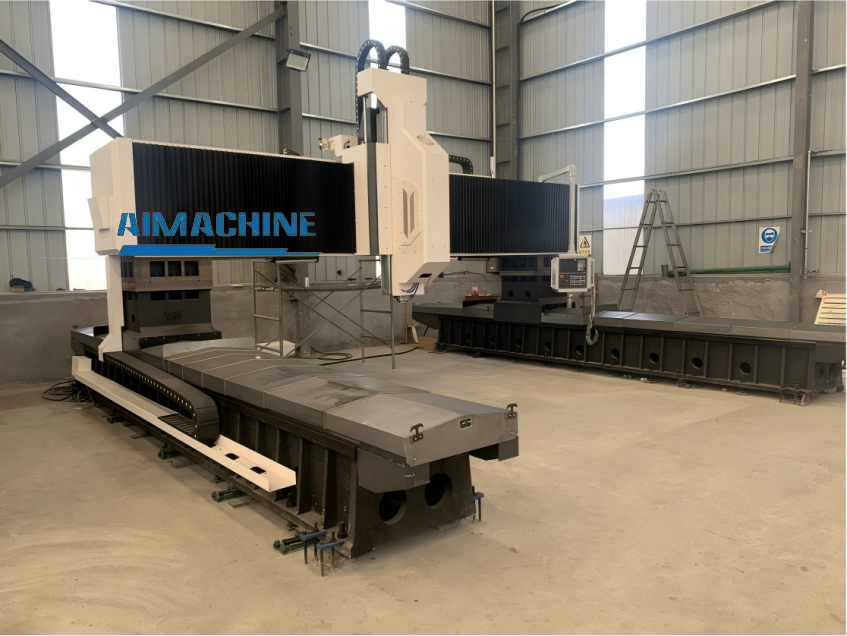

Model 4040 CNC Drilling and Tapping Machine in Production

If you work with steel plates, flanges, or structural components, you know how critical precision and efficiency are in drilling and tapping operations. Many manufacturers struggle to find a machine that balances performance, reliability, and affordability. That’s where the our CNC drilling and tapping machine comes in.

Key Features

The cnc drilling and tapping machine is designed with stability as a top priority. Every major component is selected to ensure rigidity and precision during drilling and tapping.

1.All-Cast-Iron Structure for Maximum Rigidity

Drilling and tapping generate vibration, which can affect accuracy. To minimize this, it uses **HT250 cast iron** for the beam, column, and spindle box. No welded structures are used, which ensures better damping and long-term stability.

The cast iron worktable features precision-machined T-slots, making it easy to secure workpieces of different sizes.

2. High-Load Linear Guideways

The X, Y, and Z axes use **45mm HIWIN linear guideways** with flange-type bearings. Flange bearings offer higher load capacity than standard types, making the machine more stable during fast movements.

To further enhance durability, multiple pressure blocks are installed along the guide rails. They distribute stress evenly and prevent deformation even after years of use.

3. Precision Ball Screws for Smooth Motion

The XYZ axes are driven by **TBI ball screws** (40mm diameter, 10mm pitch). This combination ensures fast acceleration, precise positioning, and minimal backlash—critical factors for consistent hole quality.

4. Powerful Spindle with BT40 Tooling System

The gantry type high speed drilling machine spindle head uses a ram-style structure with a **BT40 taper**. This allows for a wide range of tools, including U-drills, spiral drills, tapping tools, and face mills.

The spindle motor provides sufficient power for drilling up to 37mm and tapping up to M18, making it suitable for most common plate processing tasks.

5. Efficient Coolant and Tool Change Systems

A rear-mounted coolant filtration system keeps the cutting area clean and extends tool life. The pneumatic tool change cylinder from AirTac ensures quick and reliable tool swaps.

Technical Specifications (Quick Overview)

Who Should Consider the CNC Drilling and milling machine?

If your workshop focuses on:

•   Drilling and tapping steel plates
•   Processing flanges, tube sheets, or connection plates
•   High-precision hole-making
•   Reducing manual labor and improving consistency

However, if you need to mill, drill, and tap long workpieces like beams, you may want to explore our gantry cnc drilling and tapping machine, which is designed specifically for long-part machining.

Get in Touch for More Information

If you’re looking for a reliable CNC drilling and tapping machine that delivers accuracy and value, contact us today to discuss your application requirements or request a quote.
