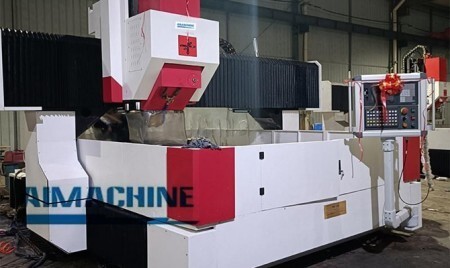

CNC AWT2525 CNC Steel Plate Drilling Machine Successfully Delivered – Precision Redefined‌

We are thrilled to announce the successful delivery of  ‌AWT2525 CNC Tube Sheet Drilling Machine‌ to a leading industrial equipment manufacturer. This milestone underscores our commitment to delivering advanced, high-precision machinery tailored for demanding applications in energy, petrochemical, and heavy fabrication industries. Below, we dive into the groundbreaking features and technical specifications that make the AWT2525 a game-changer for ‌CNC tube sheet drilling machine‌ operations.

Why the YWT2525 Stands Out in CNC Tube Sheet Drilling‌

Engineered for precision and efficiency, the AWT2525 ‌CNC tube sheet drilling machine‌ is designed to tackle large-scale tube sheets, boiler plates, and heat exchanger components. Its robust construction and intelligent automation ensure unmatched accuracy, even for complex multi-hole drilling patterns.

Core Features‌

1.Heavy-Duty Structural Integrity‌

• HT250 Cast Iron Framework‌: The machine’s bed, columns, and worktable are crafted from high-grade HT250 cast iron, enhanced by dual annealing processes to eliminate internal stresses and guarantee long-term stability.

• Fixed Gantry & Mobile Worktable‌: Optimized for handling large workpieces (up to 2500mm x 2500mm), this design minimizes vibration and maximizes rigidity during high-speed drilling.

2.High-Speed Precision Drilling‌

• BT50 Spindle System‌: Equipped with 16 powerful BT50 spindles (optional configurations available), the YWT2525 achieves rapid drilling cycles with spindle speeds up to ‌3,000 RPM‌.

• ±0.02mm Positioning Accuracy‌: Advanced linear guides and servo-driven ball screws ensure micron-level precision across all axes (X, Y, Z).

3.Smart Automation & User-Friendly Operation‌

• Automatic Tool Change (ATC)‌: Integrated pneumatic tool changers reduce downtime by enabling rapid bit swaps for varied hole diameters.

• KND CNC Control System‌: The intuitive interface supports RS232/USB connectivity and G-code programming, allowing operators to manage complex drilling templates effortlessly.
• Coolant & Chip Management‌: A high-pressure coolant system and automatic chip conveyor maintain clean workspaces and extend tool life.

Technical Specifications‌

• Worktable Size‌: 2500mm x 2500mm
• Max Drilling Diameter‌: 50mm (steel), 80mm (non-ferrous metals)
• Spindle Power‌: 11 kW (per spindle)
• Axes Travel‌: X-axis 3000mm / Y-axis 2500mm / Z-axis 300mm
• Positioning Speed‌: 15,000mm/min
• Repeatability‌: ≤±0.015mm

Ideal Applications for the YWT2525 CNC Tube Sheet Drilling Machine‌

This machine excels in industries requiring mass production of perforated plates:

• Energy Sector‌: Drilling tube sheets for boilers, condensers, and nuclear reactors.

• Petrochemical‌: Fabricating heat exchangers, pressure vessels, and pipeline flanges.
• Shipbuilding & Construction‌: Processing structural plates with complex hole patterns.
