cnc angle steel punching marking shearing machine

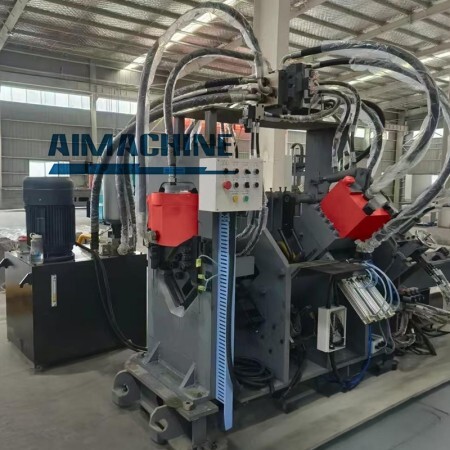

CNC Angle Steel Punching Marking Shearing Machine

The angle processing machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry, electric power fitting, structure storage facilities and structure construction industries etc.

Features of cnc angle steel punching marking shearing machine

1.Three sets of punches on each side,can process all holes once time.

2. Single blade shearing, save raw material.

3. Numerical control processing, the operation is very convenient, can realize automation, high precision, many varieties, mass production.

4. Marking unit with closed body, good rigidity. On the marking unit is equipped with four groups of programmable selection box.

5. With avoided shearing functions, so as to process fixed-length angles.

6. All marking, punching and Cutting in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

7. Easy programming, can manual programming and also can use the program generated by lofting software.. It can read NC.1 files generated by TEKLA software.

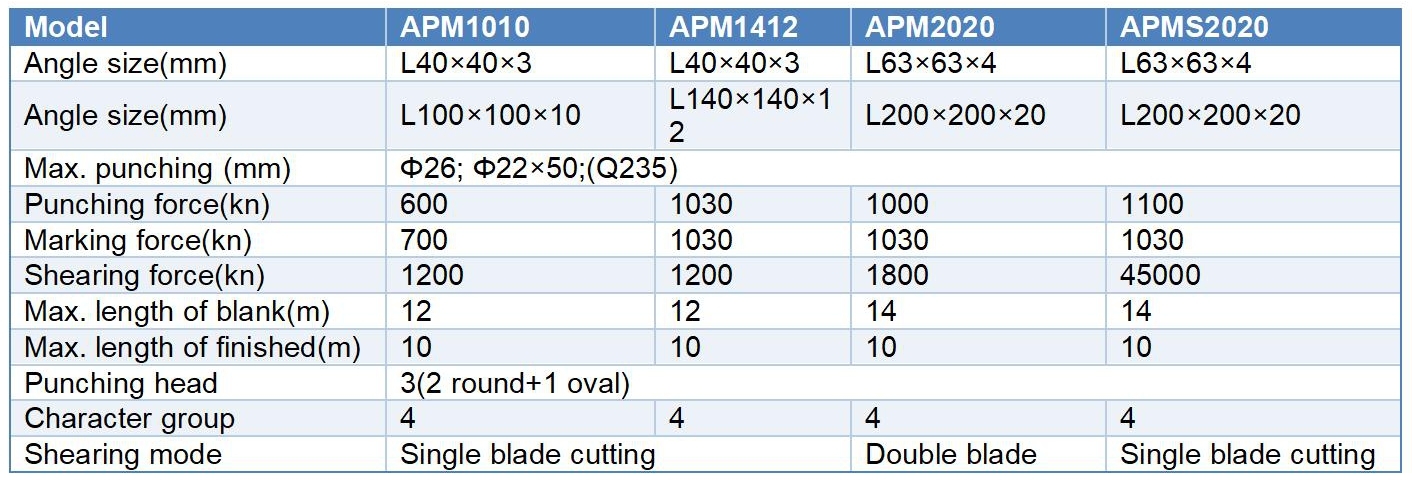

Parameters‌
