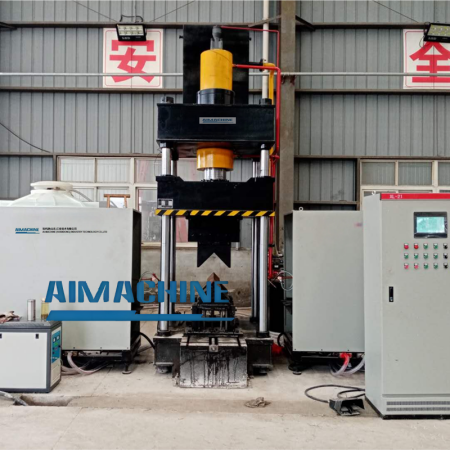

Angle Steel Bending Machine

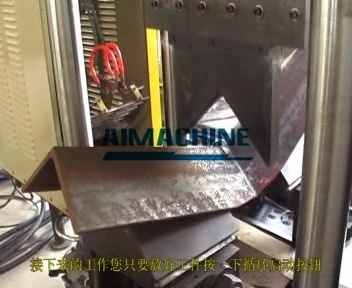

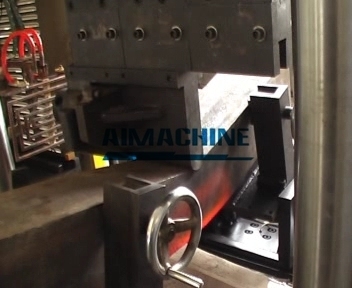

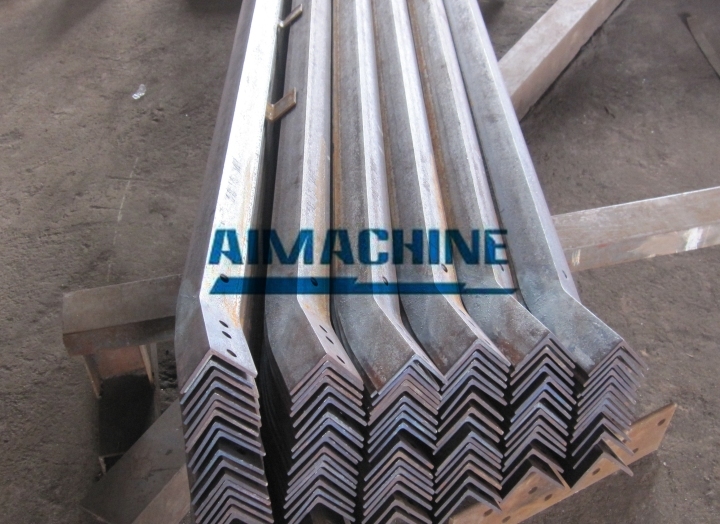

The angle steel bending machine is mainly used for angle steel bending and plate bending,such as power towers, communication towers, power fittings, steel structures, and storage shelves.
Feature of Angle Steel Bending Machine
1. Adopting CNC programmable controller, touch screen input information and status feedback, simple operation.
2. Adopting intelligent ultrasonic induction heating, it can improve production efficiency, reduce production costs, and ensure the working environment of the company.
3. Angle steel bending machine, realizing multi-purpose use without the need for other tooling and molds.
4. Numerical control ensures the forming angle of the workpiece, guarantees product quality, and improves production efficiency.
5. The angle steel bending machine has an independent hydraulic station and electrical control system, with simple and convenient operation, safe and reliable performance, and high production efficiency.
Model of Angle Steel Bending Machine
| Model | AHQ250 |
| Oil cylinder pressure (kn) | 1600 |
| Double flange bending range (mm) | 80*7-250*32 |
| Double flange bending angle | 30° |
| Single flange bending range (mm) | 80*7-200*20 |
| Single flange bending angle | 20° |

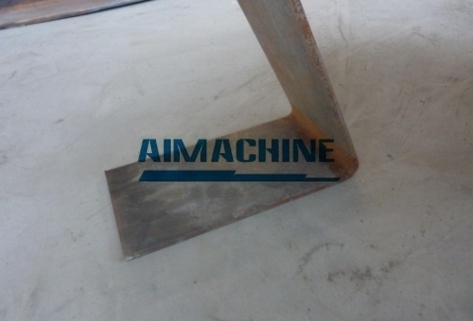

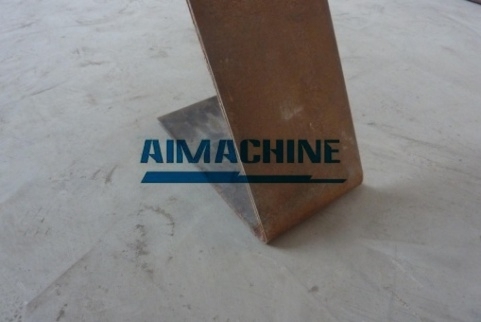

| Plate bending thickness (mm) | 2-16 |
| Plate bending width (mm) | 700 |
| Plate bending angle | 90° |
| Cylinder capacity (L) | 630 |
| Dimension (mm) | 3500*4500*4100 |
CONTACT US FOR MORE ANGLE PROCESSING MACHINE!
