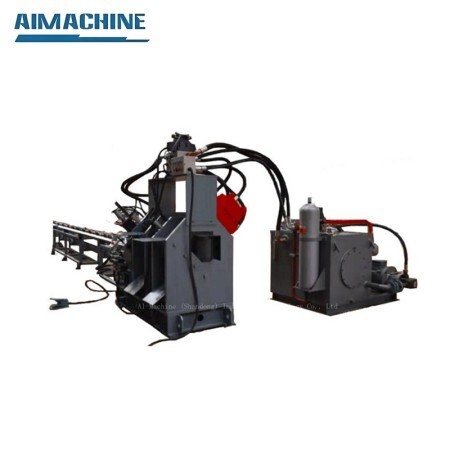

CNC Flat Bar Cuttting and Punching Machine

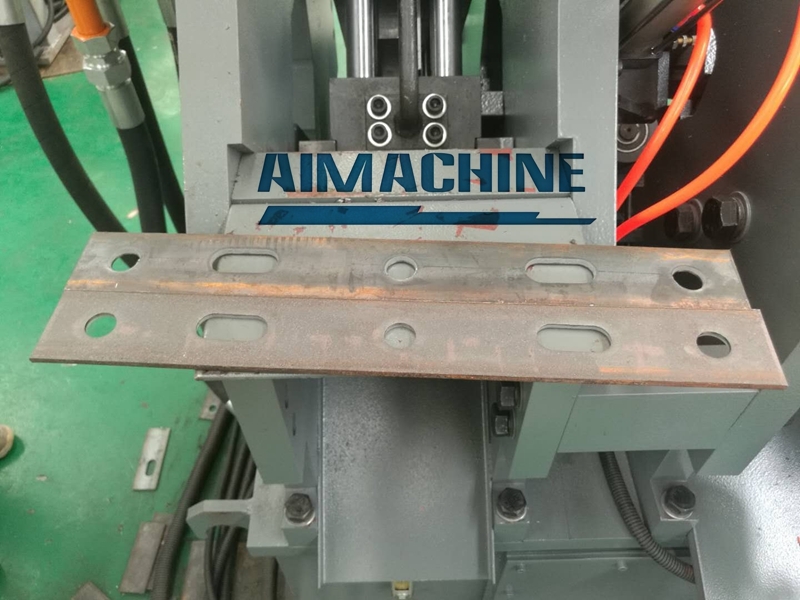

cnc flat and angle processing machine is suitable for punching,cutting,stamping on flat bar,and punching for channel steel, so it can be called combined line for flat steel and channel steel.
Feature of cnc Flat Bar Cutting and Punching Machine
1.Adopt servo motor feeding system with high efficiency and steady high precision.
2.The key parts of electrical,hydraulic and pneumatic are international famous brand to assure the high and steady quality.
3.Simple programme, easy operation, the user only need to input the parts size, hole diameter, stadia, parts number. or can transform form CAD/CAM.
4.Fully automatic process of marking ,punching and shearing.
5.Have the self-diagnostic function.
Basic Parameter for CNC Flat Bar Cutting and Punching Machine
| Model | 1412 | |
| Flat bar size (mm) | 50*4-140*12 | |
| Length of flat bar (mm) | 1000 | |
| Punching holes | Punching force (kn) | 1000 |
| Qty. of punching die | 3 per side | |
| Hole size (mm) | ∅26 | |
| ∅22*50 | ||
| Stamping character | Stamping force (kn) | 850 |
| Group of characters | 4 | |
| Qty. of characters | 12 | |
| Size of characters | 14*10*9 | |
| Cutting function | Cutting force (kn) | 2250 |
| Cutting mode | Single blade | |
| Feeding mode | Servo feeding car | |
| Programming mode | Auto CAD | |
| Dimension (mm) | 27000*4500*2200 | |
- Flat bar size:
- 50*4-140*12
- Flat bar length:
- 10m
- Punching force:
- 1000kn
- Hole size:
- ∅26mm,∅22*50mm
- Stamping character:
- YES
- Cutting mode:
- Single blade
- Feeding mode:
- Servo feeding car
- Programming mode:
- Auto CAD
