Multi axis combined multifunctional machining CNC Drilling Machine For Beams

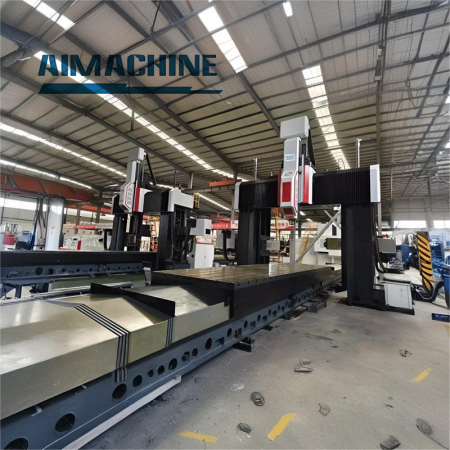

This gantry type CNC three spindle drilling machine is a specialized machine tool for three sided machining in the construction machinery industry.

1. The cnc drilling machine adopts a dedicated bed, a mobile worktable, and a fixed gantry structure.

2. The left and right columns of the fixed gantry are equipped with horizontal sliding pillows, and the crossbeam of the fixed gantry is equipped with vertical sliding and spindle.

3. The left and right horizontal sliding spindles can work simultaneously or independently, and a set of vertical sliding pillows and spindle can work independently.

4. The cnc drilling machine has 9 feed axes and 3 rotation axes, which can achieve machining such as milling, boring, drilling, rigid tapping, milling threads, etc

5. The spindle adopts BT50 precision spindle components imported from Taiwan, and the high-precision and high load vertical spindle adopts a disc type tool magazine.

6. The horizontal spindle adopts a chain track type mechanical arm tool magazine for automatic tool changing and accurate positioning.
