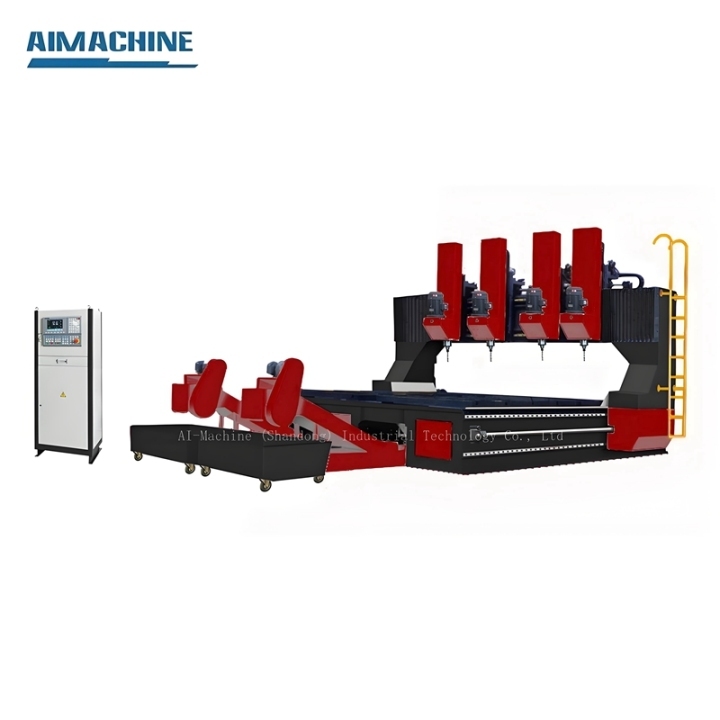

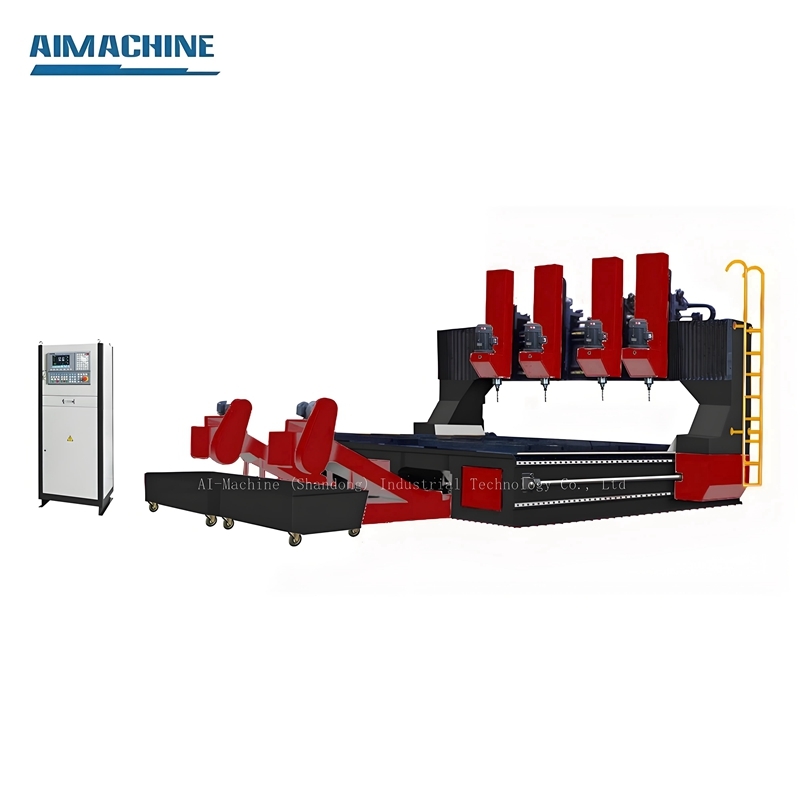

PLD Series Multi-Spindle CNC Gantry Drilling Machine

The ‌PLD Series CNC Gantry Drilling Machine‌ delivers industrial-grade precision and efficiency for large-scale drilling applications. Designed for demanding sectors like energy, shipbuilding, and structural steel fabrication, this machine combines ‌rigid gantry construction‌ with ‌multi-spindle technology‌ to optimize productivity.

1.Applications‌

• •   (1)Industries:‌ Power plant equipment, ship hulls, bridge construction, and petrochemical fabrication.

  •   (2)Materials:‌ Carbon steel, stainless steel, aluminum, and alloy plates.
  •


• 2.Feature of PLD CNC Gantry/Tube sheet/Flange/Plates Drilling Machine

  (1)Drilling Capacity‌

  •   Max Workpiece Thickness:‌ 200 mm (steel plates, beams, flanges).

  •   Drilling Diameter Range:‌ Φ12–Φ50 mm (standard tools).
  •   Spindle Speed:‌ 560RPM (adjustable for material hardness).

  (2)Multi-Spindle Efficiency‌

  •   Simultaneous Drilling:‌ Up to 4 spindles operate concurrently, reducing cycle time by 60%+ for high-volume tasks.

  •   Independent Control:‌ Each spindle is CNC-programmable for flexible hole patterns (linear, circular, angular).

  (3)Precision & Automation‌

  •   Positioning Accuracy:‌ ±0.05 mm (ensures repeatability for complex layouts).

  •   CNC System:‌ User-friendly interface (Siemens/Mitsubishi) with offline programming and CAD/CAM compatibility.

  • (4)Robust Construction‌

    Gantry Frame:‌ Heavy-duty welded steel with dual-axis drive for stability during high-load drilling.


    Worktable:‌ 7000 x7000 mm (maximum) with T-slots for secure clamping.

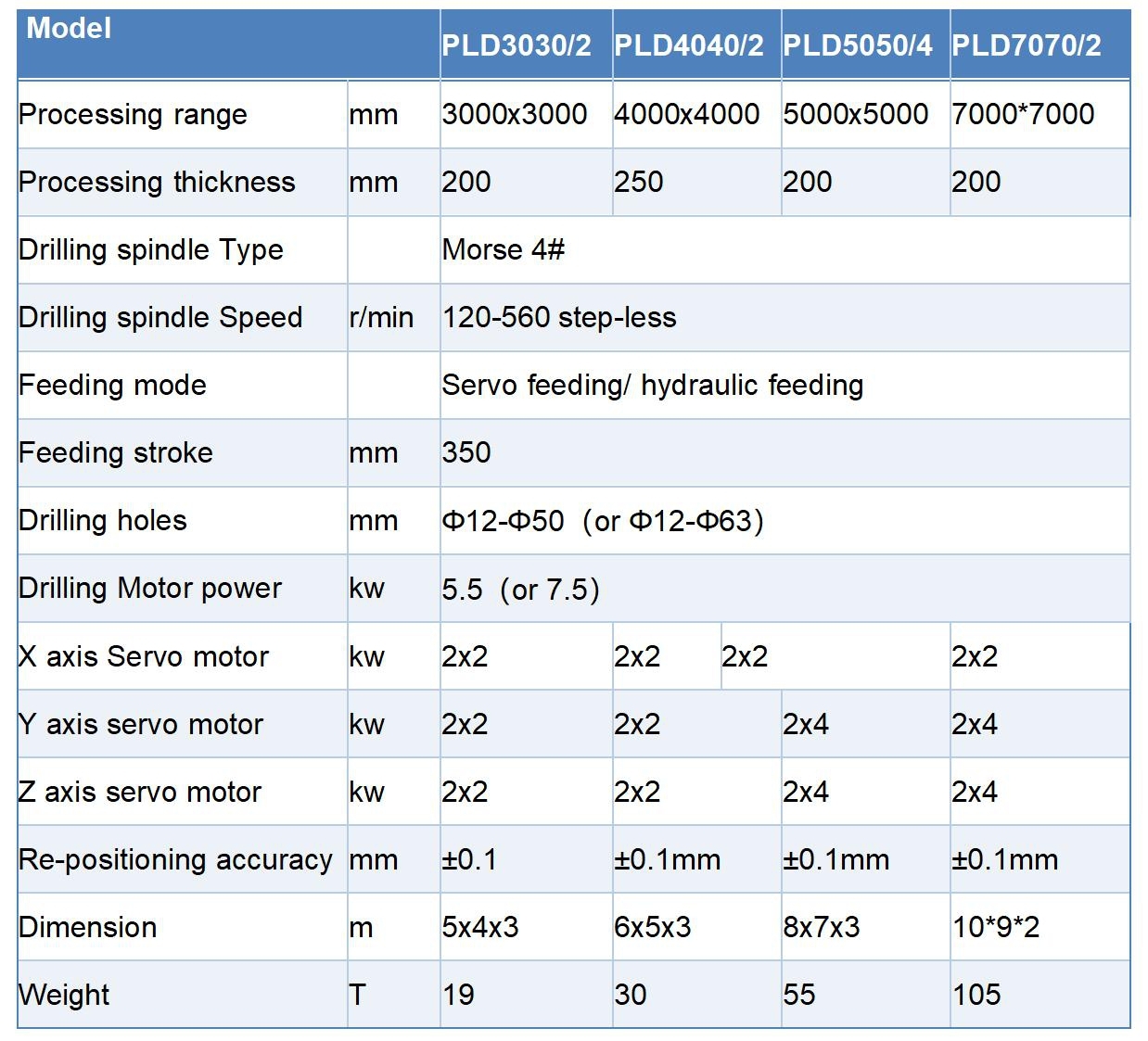

  3.Machine Model for PLD series Machine

  •


  CONTACT US to get more details about PLD Multi-spindle CNC Gantry Drilling Machine
