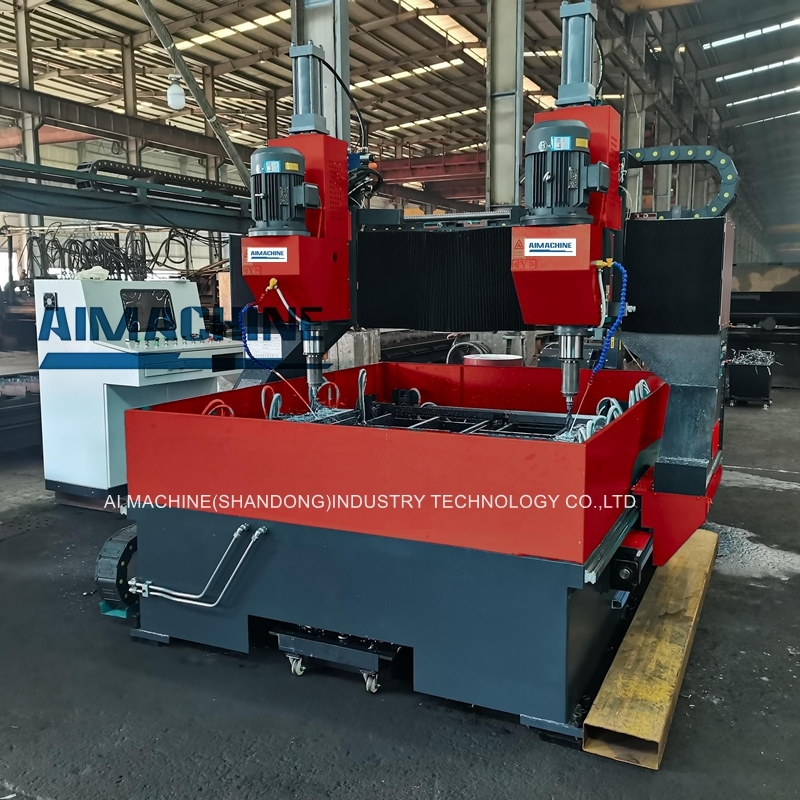

‌PLD3030/2 CNC Gantry Planar Drilling Machine

The ‌PLD3030/2 CNC Gantry Planar Drilling Machine‌ is a high-performance, large-scale gantry-movable drilling solution designed for precision machining of heavy-duty industrial components.

Feature of PLD3030/2 cnc gantry drilling machine

1. ‌High-Precision Drilling & Multi-Functional Operations‌

• Core Functionality‌: Specialized for drilling on large plates, tube sheets, and structural parts (e.g., heat exchangers, pressure vessels, and power equipment) ‌.
• Advanced Control‌: Equipped with servo-driven CNC systems and high-precision linear guides/ball screws for ±0.03mm positioning accuracy, ensuring consistent hole quality ‌.

2. ‌Robust Gantry-Movable Design‌

• Structure‌: Features a rigid gantry-movable framework with a 3-axis servo system (X/Y/Z) for stable, high-speed movement (30-80 mm/min feed rates) ‌.
• Worktable Capacity‌: Accommodates large workpieces up to 3m × 3m dimensions, ideal for heavy-duty industrial applications ‌.

3. ‌Automation and Efficiency‌

• Programmable Workflows‌: User-friendly CNC interface (e.g., KND or similar systems) enables rapid programming via USB/RS232 inputs for batch processing ‌.


4. ‌Industry-Specific Applications‌

• Key Sectors‌: Widely used in power generation, petrochemicals, steel structures, and automotive industries for drilling high-density hole patterns ‌.
• Material Compatibility‌: Processes carbon steel, stainless steel, and alloy plates with thicknesses up to 250mm ‌.

5. ‌Technical Advantages‌

• Durability‌: Cast iron construction with stress-relieved components ensures long-term stability ‌.
• Safety & Energy Efficiency‌: Incorporates overload protection and energy-saving servo motors, reducing operational risks and costs ‌.

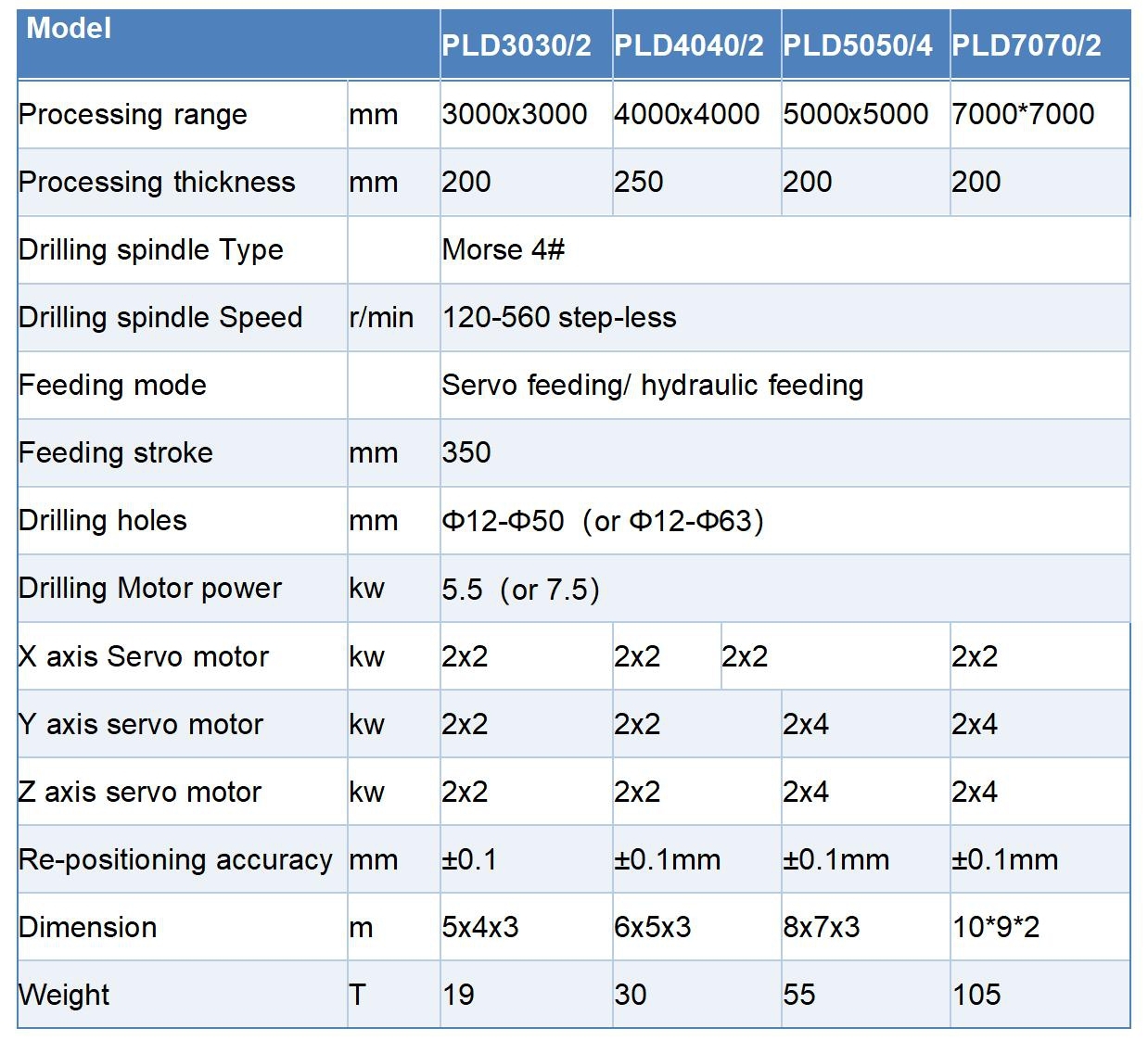

PLD3030/2 cnc gantry drilling machine parameter
